Danfoss 184-0408-002

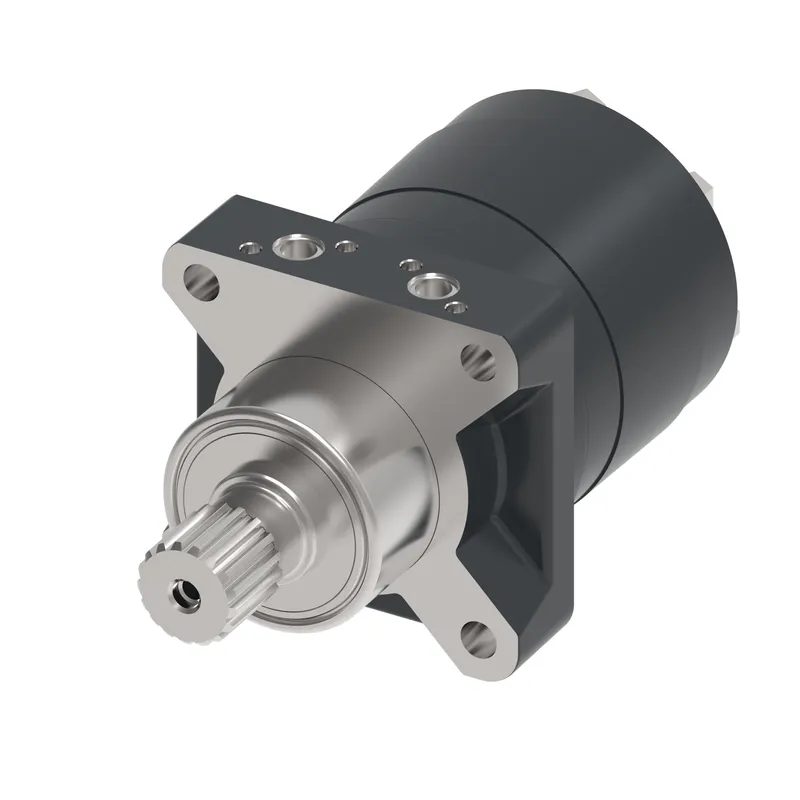

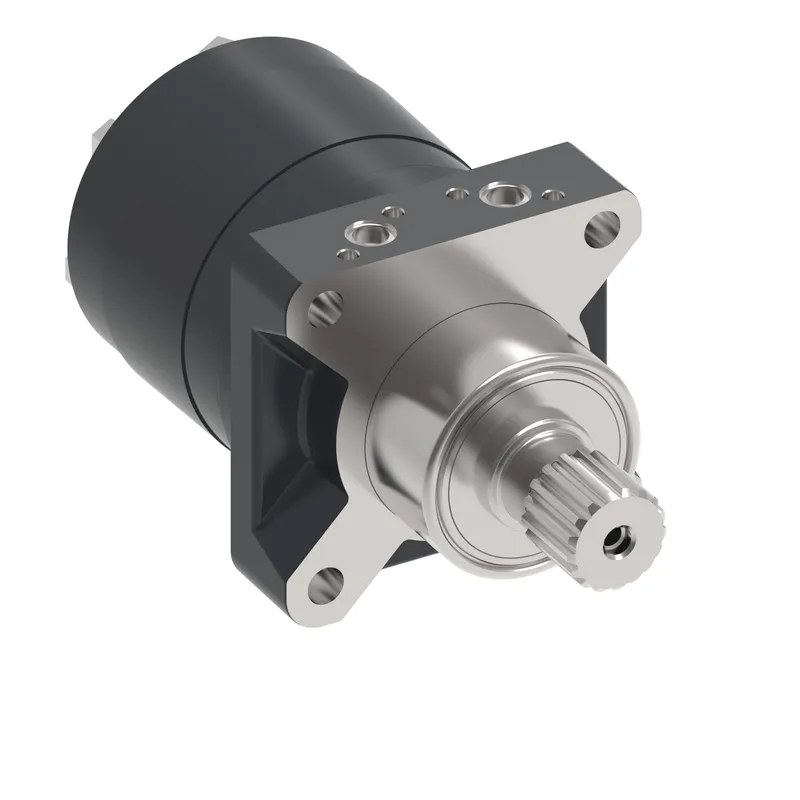

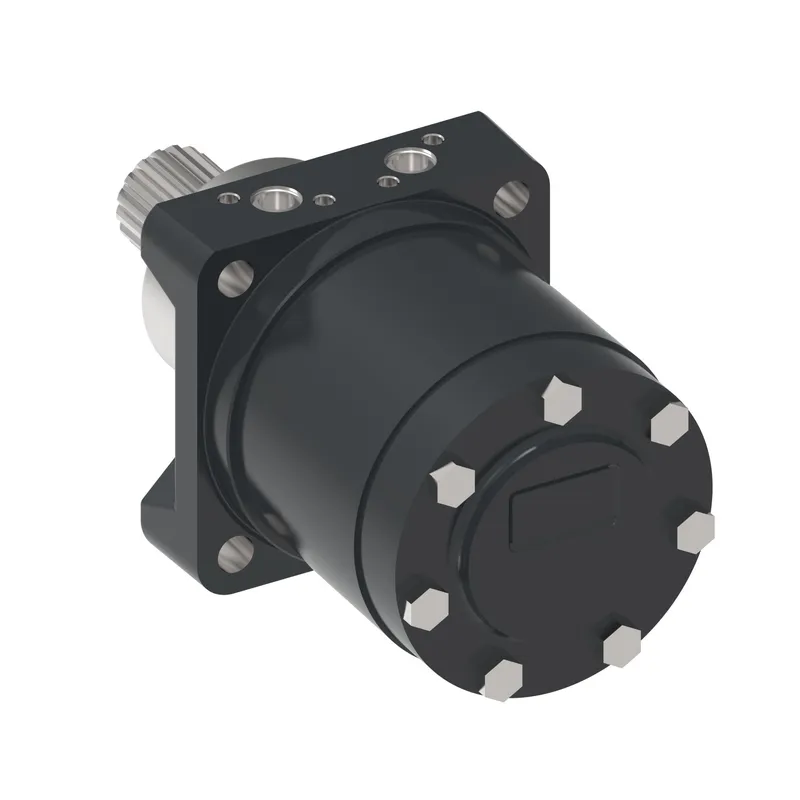

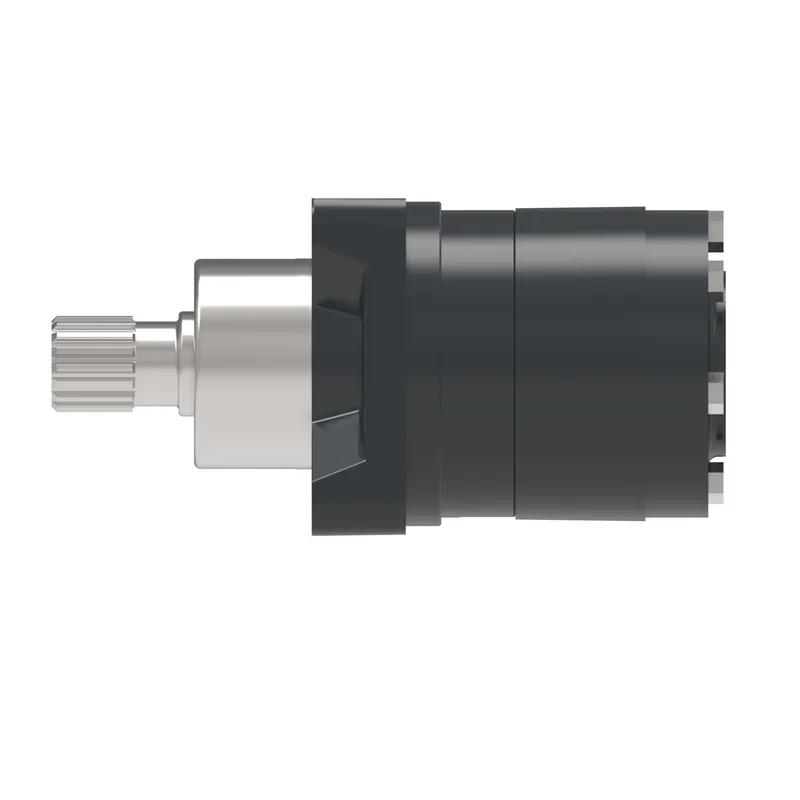

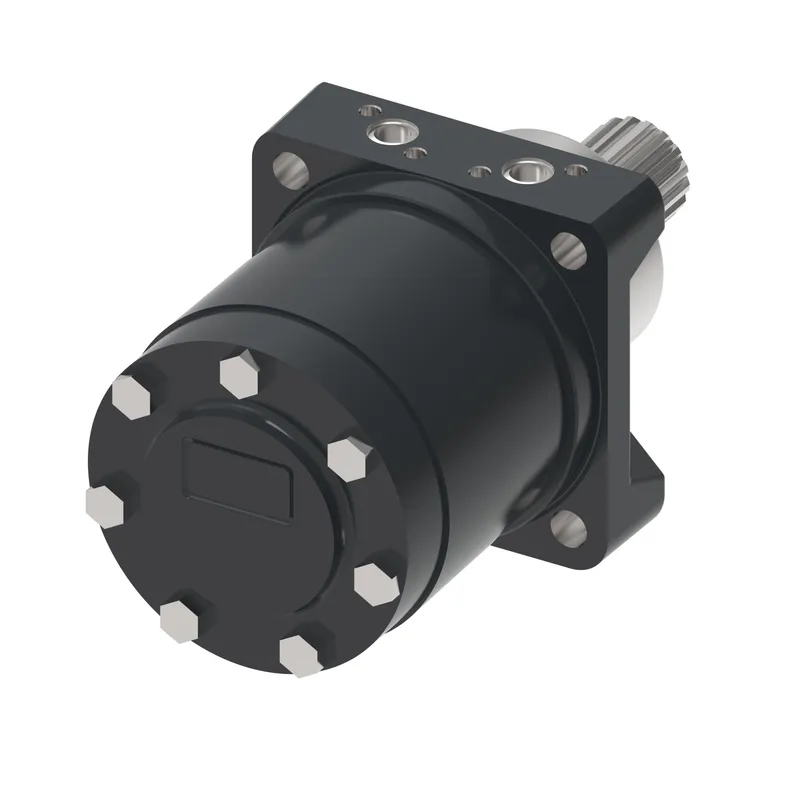

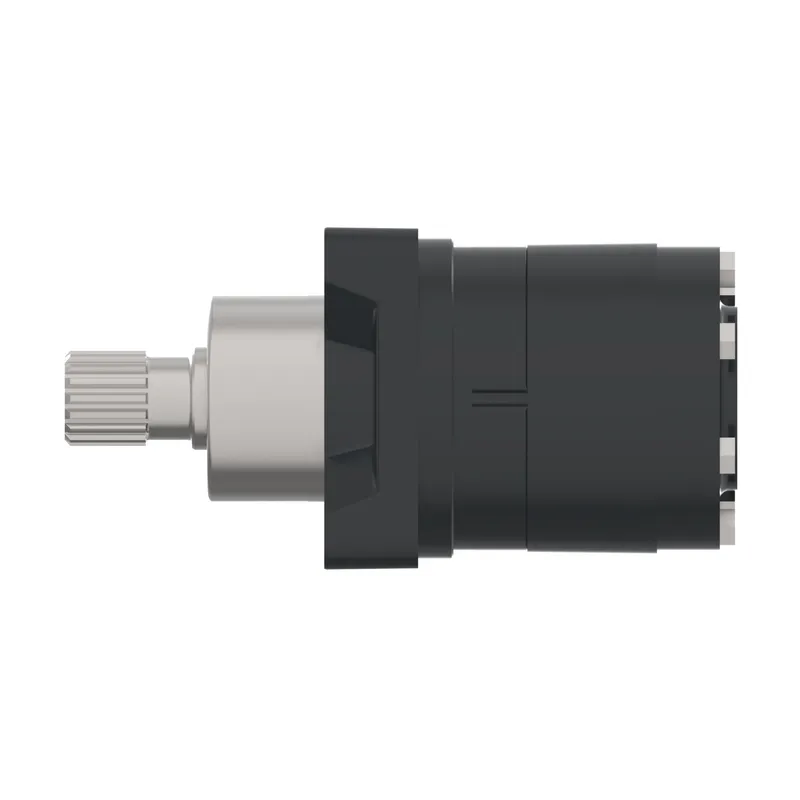

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA06AF0D0000000AB00B, MDL241AA06AF0D0000000AB00B

MPN: 184-0408-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 184-0408-002?

Danfoss MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA06AF0D0000000AB00B, MDL241AA06AF0D0000000AB00B, manufacturer part number 184-0408-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MDL241AA06AF0D0000000AB00B
Motor Series	Delta Series
Valve system	Disc valve on the output shaft
Orbital gearwheel set type	Geroler
Mounting type	4 w p83 b148 h14
Motor size	395
Geometric displacement [cm3/r [in3/r]]	395 [24.1]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.4, 147.6, 13.6 [3.25 x 0.25, 5.81, 0.54] Rear: 127.0 x 13.9, 147.6, 13.6 [5.00 x 0.55, 5.81, 0.55]
Shaft dimension	Dia. 1 1/2 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft Key	Square key, 5/16 x 1 1/4 inch
Main port thread type	Manifold
Main port style	Special
Main port dimension	0.480 inch drilled hole, 5/16 - 18 UNC-2B mounting threads - Spec. Component
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	9900992-000
Front bearing type	Needle roller bearing
Rear bearing type	Needle roller bearing
Orbital gearwheel set	Special
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Output shaft type	Tap 1.5in 1-20
Seal options	Standard
Series	Delta series
