Danfoss 184-0351-002

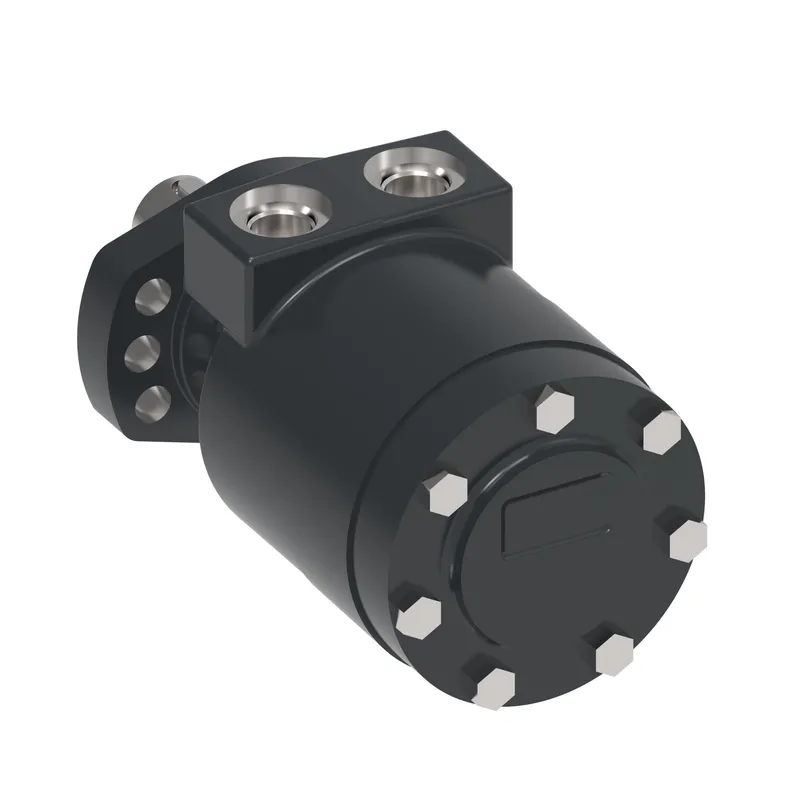

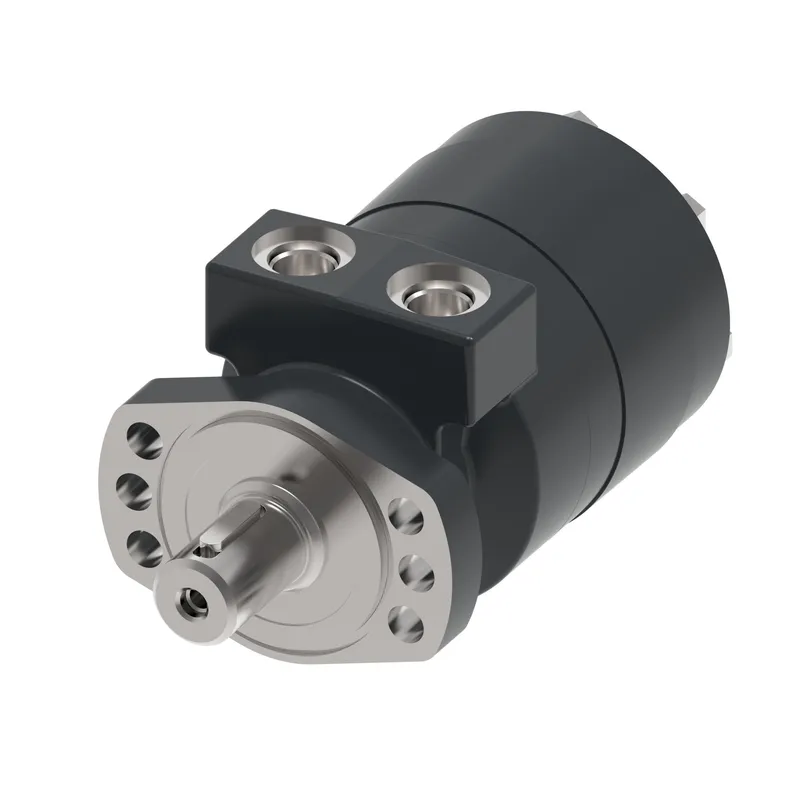

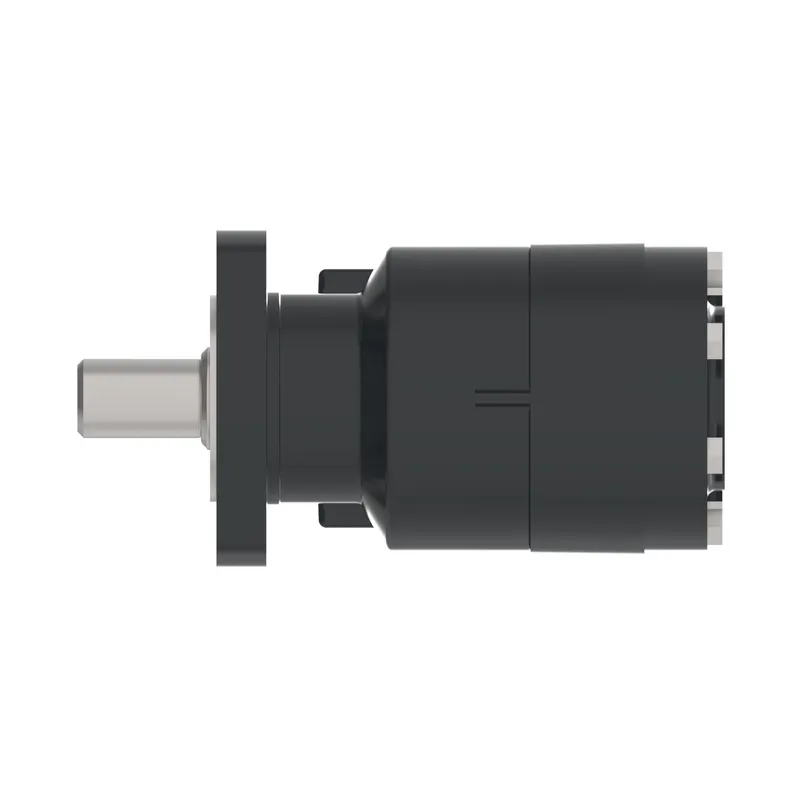

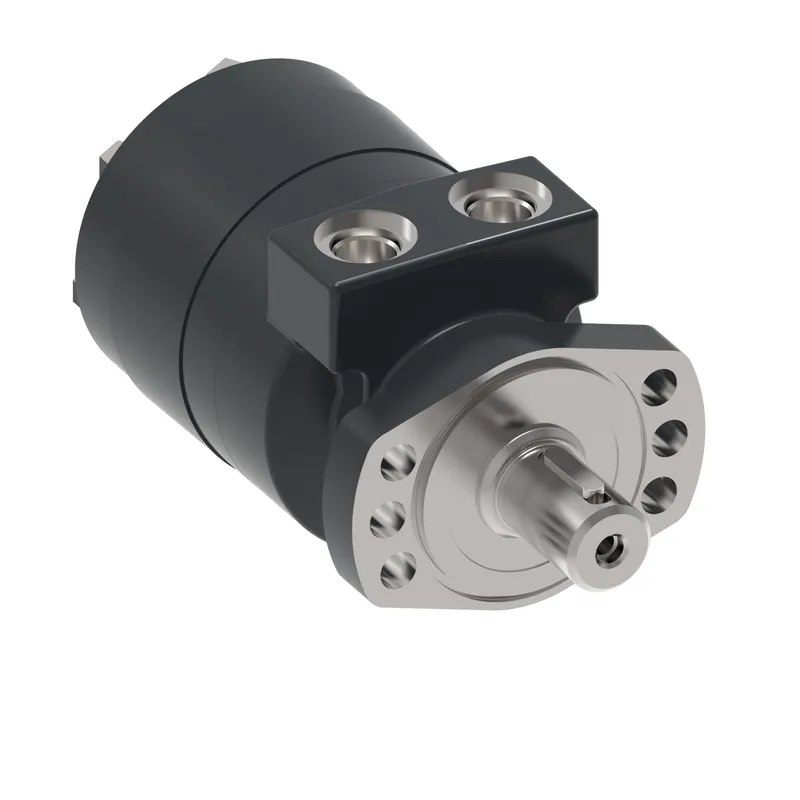

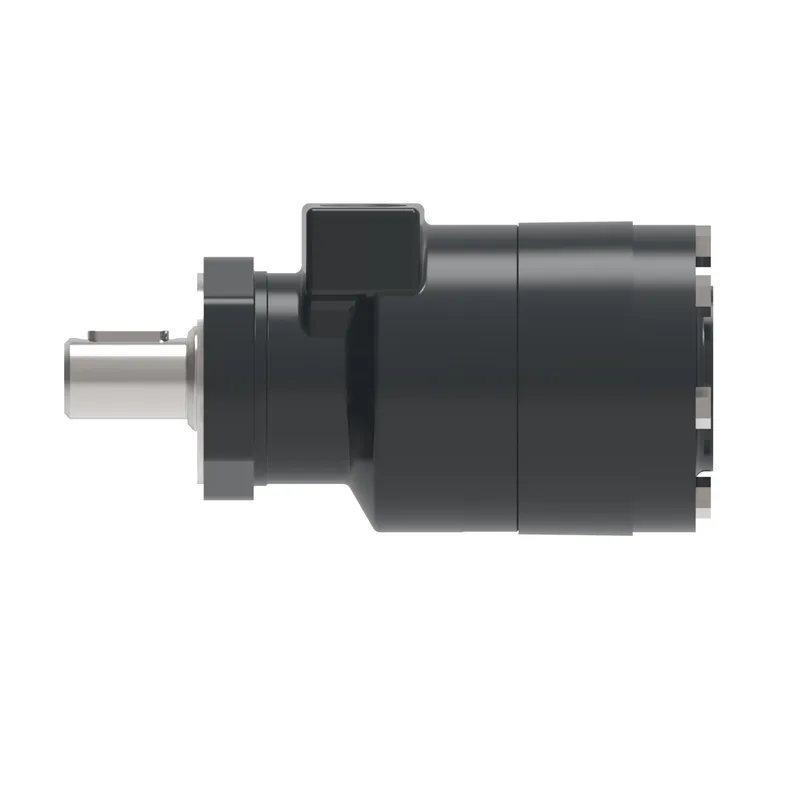

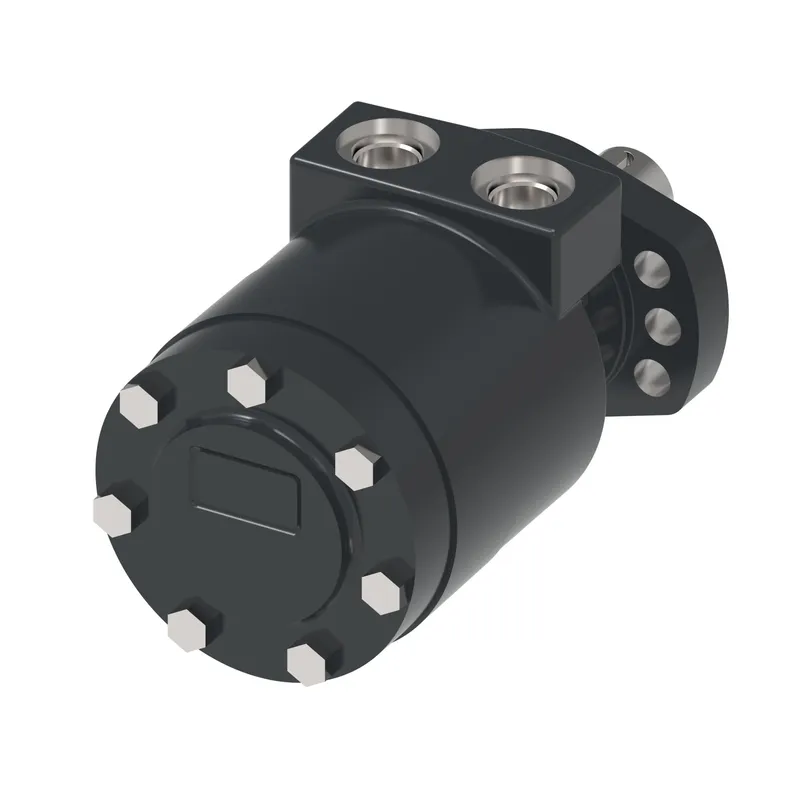

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AC08AA000000001AB00B

MPN: 184-0351-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 184-0351-002?

Danfoss MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AC08AA000000001AB00B, manufacturer part number 184-0351-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MDL183AC08AA000000001AB00B
Motor Series	Delta Series
Valve system	Disc valve on the output shaft
Orbital gearwheel set type	Geroler
Motor size	300
Geometric displacement [cm3/r [in3/r]]	300 [18.3]
Motor type	Standard
Motor function	Standard
Mounting flange type	6 Bolt - Magneto
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Shaft type	Straight
Shaft dimension	Dia. 32 mm, M8 x 1.25-6H thread in shaft end
Shaft Key	Rectangular key, 10 x 8 x 45 mm
Main port thread type	UN / UNF
Main port style	Sideport - aligned
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Direction of rotation
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	9900436-000
Front bearing type	Needle roller bearing
Rear bearing type	Needle roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Brand	Danfoss
Sub brand	Char-Lynn
