Danfoss 1701X4

Brass Fittings Self-Alig

MPN: 1701X4
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

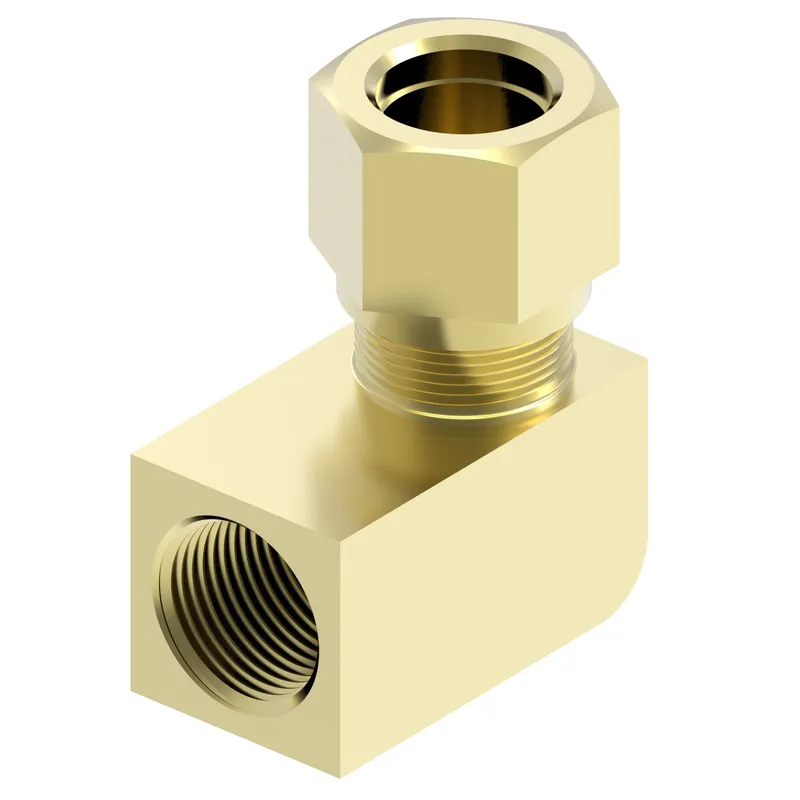

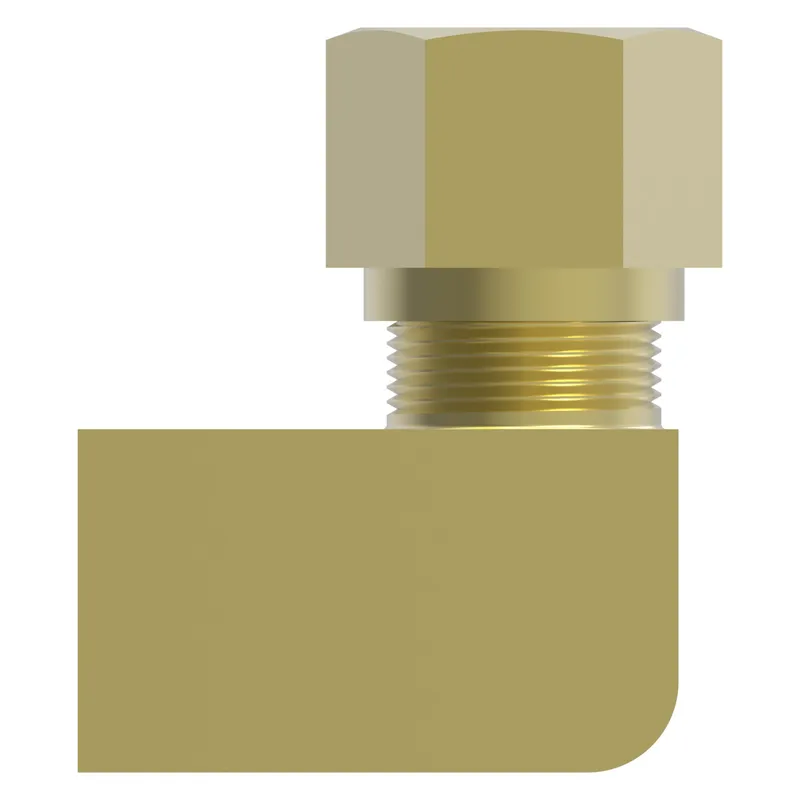

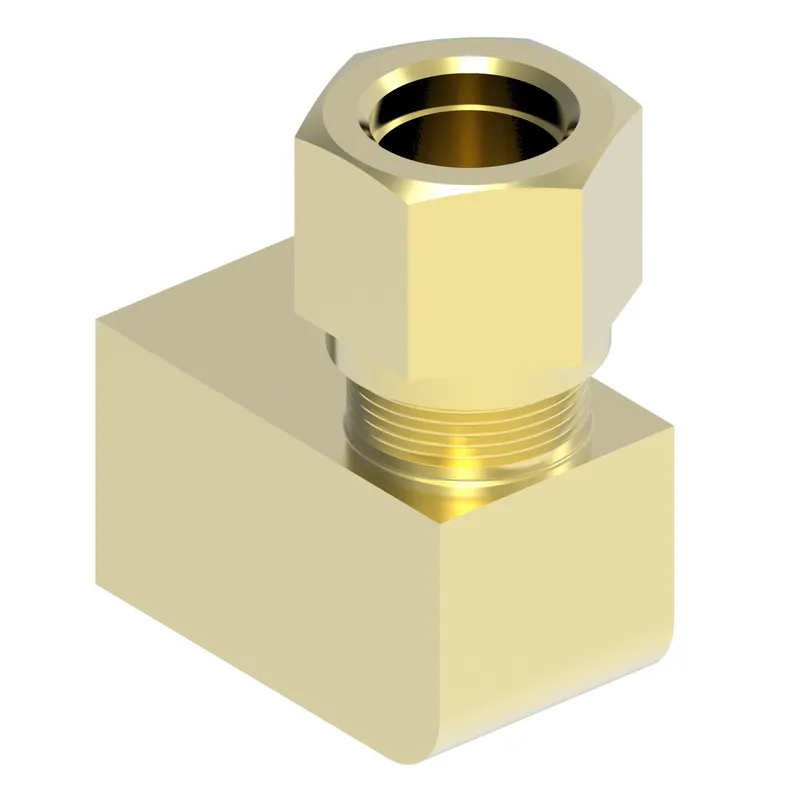

What is the Danfoss 1701X4?

Danfoss Brass Fittings Self-Alig, manufacturer part number 1701X4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975041321
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	0.560
Drop dimension MM	14.20
End Type 1	Female pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.580
Hex size 1 MM	14.700
Hex size 2 IN	0.560
Hex size 2 MM	14.200
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.330
Tube outside diameter 1 MM	8.4
Tube outside diameter 2 IN	0.260
Tube outside diameter 2 MM	6.6
