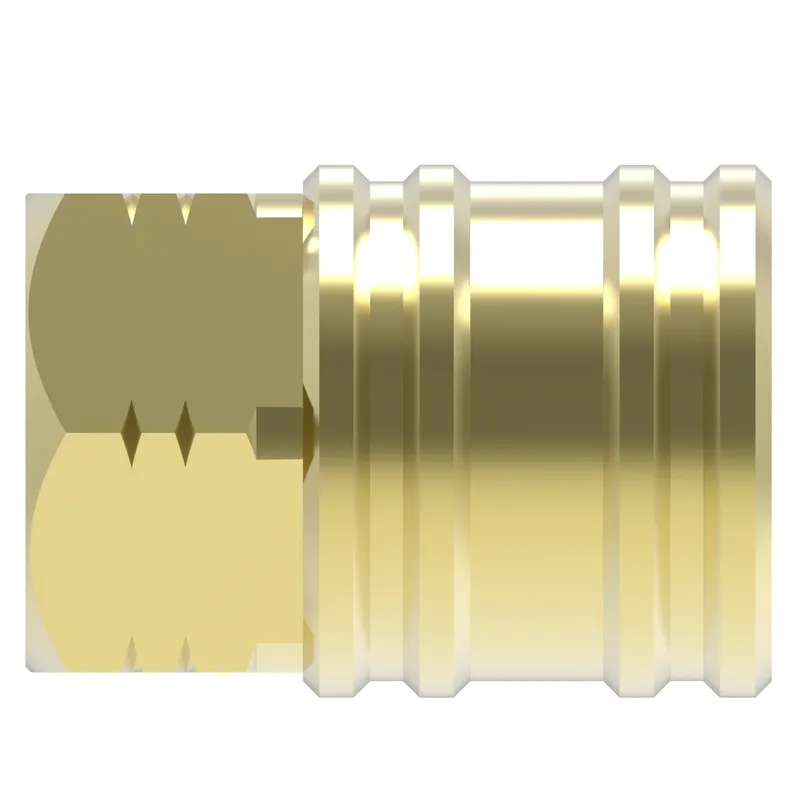

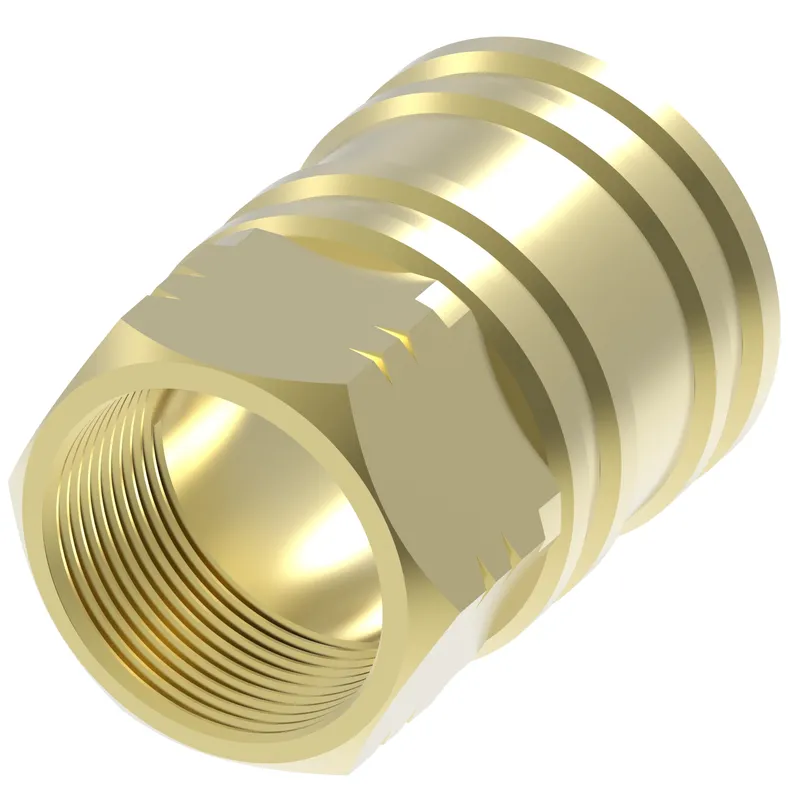

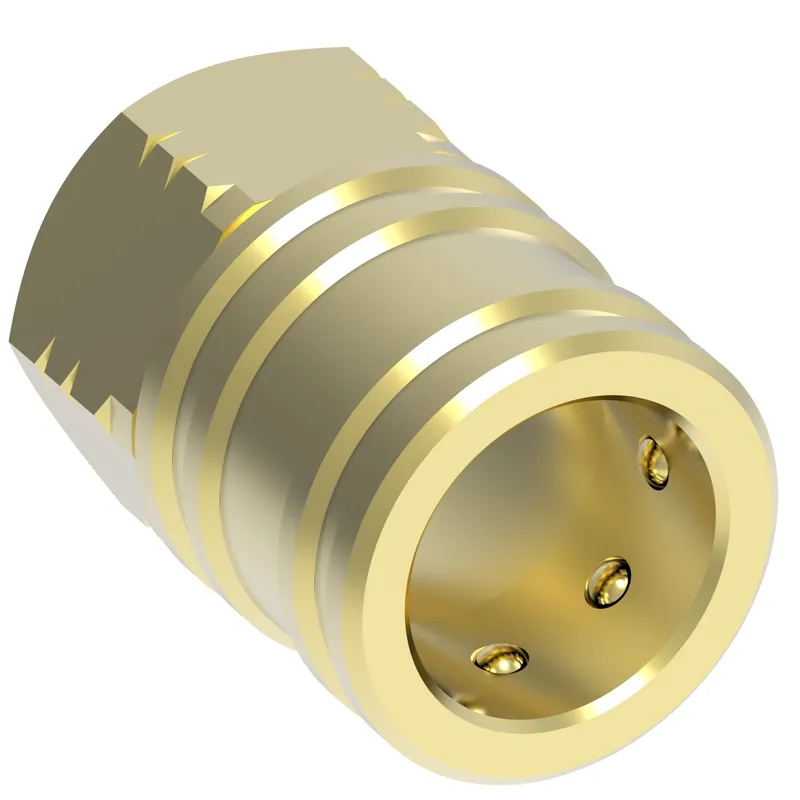

COUPLING,ST,F,2",B,-32MBS,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 16S51BS be shipped?
16S51BS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 16S51BS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 16S51BS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16S51BS, subject to availability and destination.
Danfoss COUPLING,ST,F,2",B,-32MBS,NBR, manufacturer part number 16S51BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146158321 |
| Angle shape | Straight |
| Body size | 2" |
| Burst pressure min bar | 386 |
| Burst pressure min psi | 5600 |
| Connection style | Manual connect |
| End size 1 | -32 |
| End size 2 | -32 |
| End type 1 | Female Push to Connect |
| End type 2 | Female BSPP swivel |
| Flow rate GPM | 490.00 |
| Flow rate LPM | 1854.85 |
| Fluid compatibility | Versatile fluid |
| Hex size 1 IN | 3.000 |
| Hex size 1 MM | 76.200 |
| Item type | Female half |
| Latch type | Push/pull |
| Product length in | 3.300 |
| Product material | Brass |
| Safety locking mechanism | None |
| Seal material | Nitrile (NBR) |
| Thread size 1 | G 2 |
| Thread size 2 | G 2 |
| Valve type | Straight thru |
| Working pressure max psi | 1400 |
| Working pressure max BAR | 97 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
