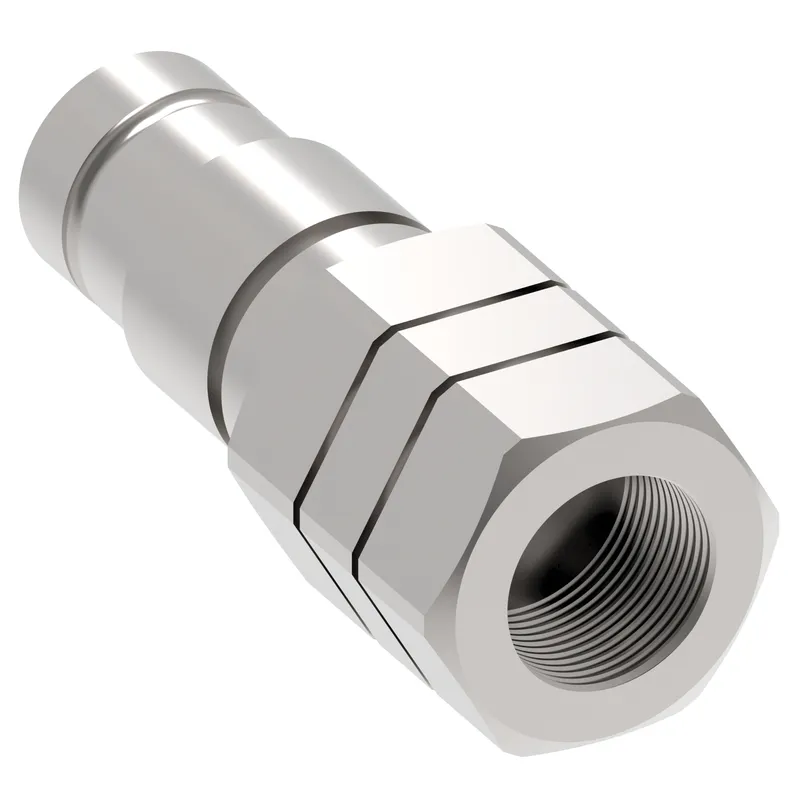

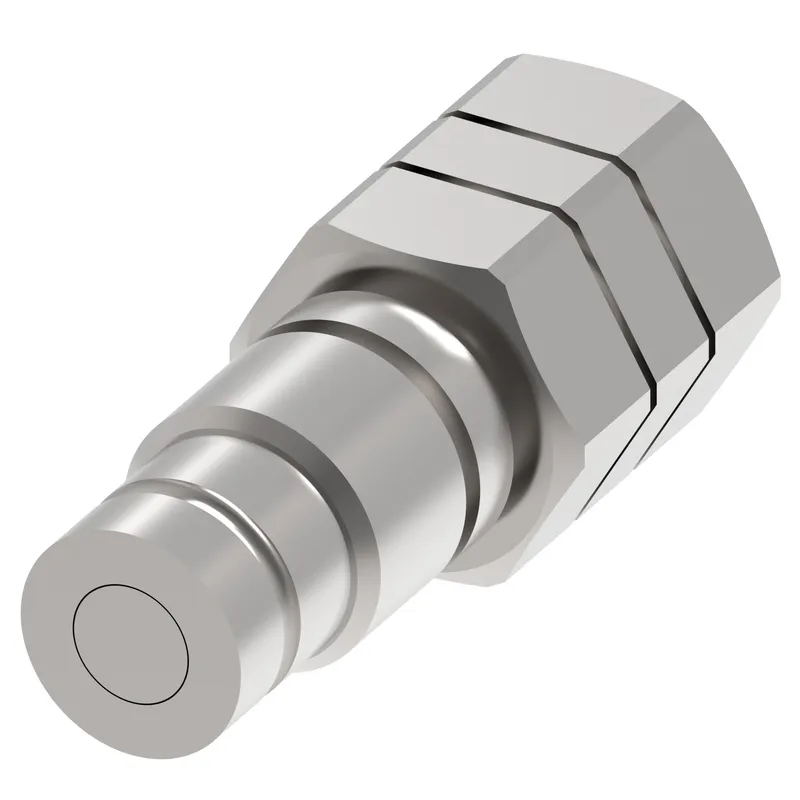

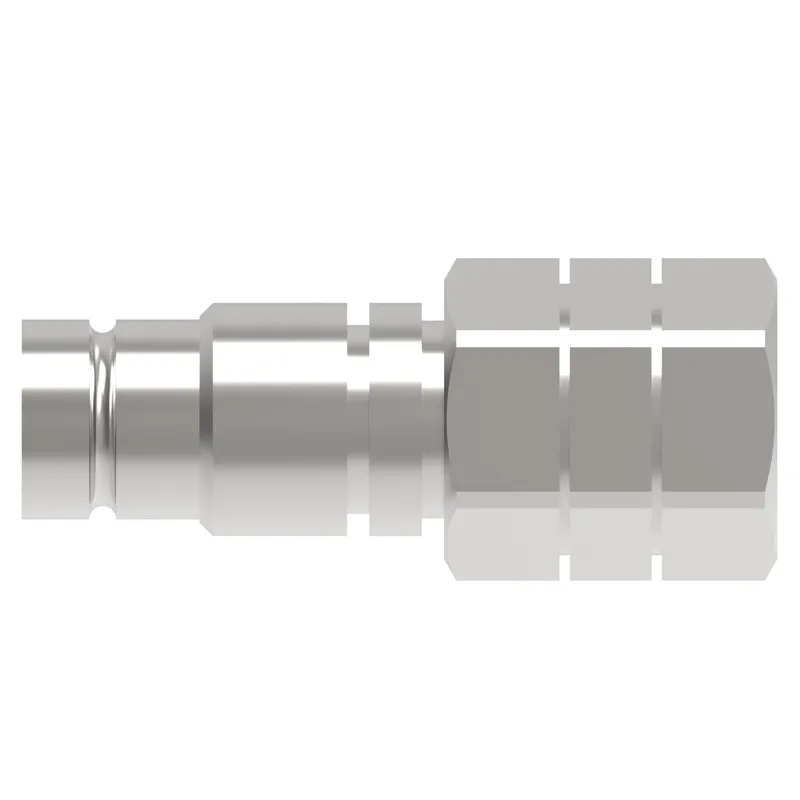

Danfoss 16FFP50BS

COUPLING,FF,M,5/8,CS,-8BSPP,NBR

MPN: 16FFP50BS
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16FFP50BS?

Danfoss COUPLING,FF,M,5/8,CS,-8BSPP,NBR, manufacturer part number 16FFP50BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146097101
Air inclusion max cc	0.03
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	5/8
Brand	Danfoss
Burst pressure min psi	20300
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3, REACH, RoHS Compliant
Connection style	Manual connect
End size 1	-8
End type 1	Female BSPP port washer seal.
Finish plating	Guardian sealtm
Flow rate GPM	21.70
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.01600
Hex size 1 IN	1.420
Item type	Male half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	G 1/2
Torque lbs-ft	46.10
Valve type	2 way
Working pressure max psi	5800
Working temperature max F	212
Working temperature min F	-13

16FFP50BS: frequently asked questions

When can 16FFP50BS be shipped?

16FFP50BS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16FFP50BS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16FFP50BS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16FFP50BS, subject to availability and destination.
