Danfoss 158-4069-001

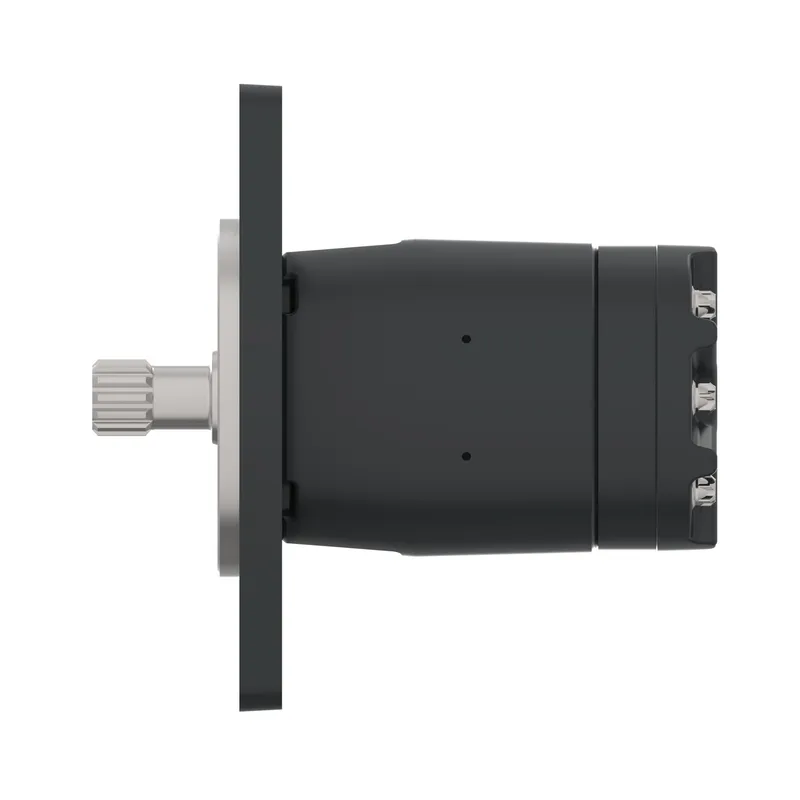

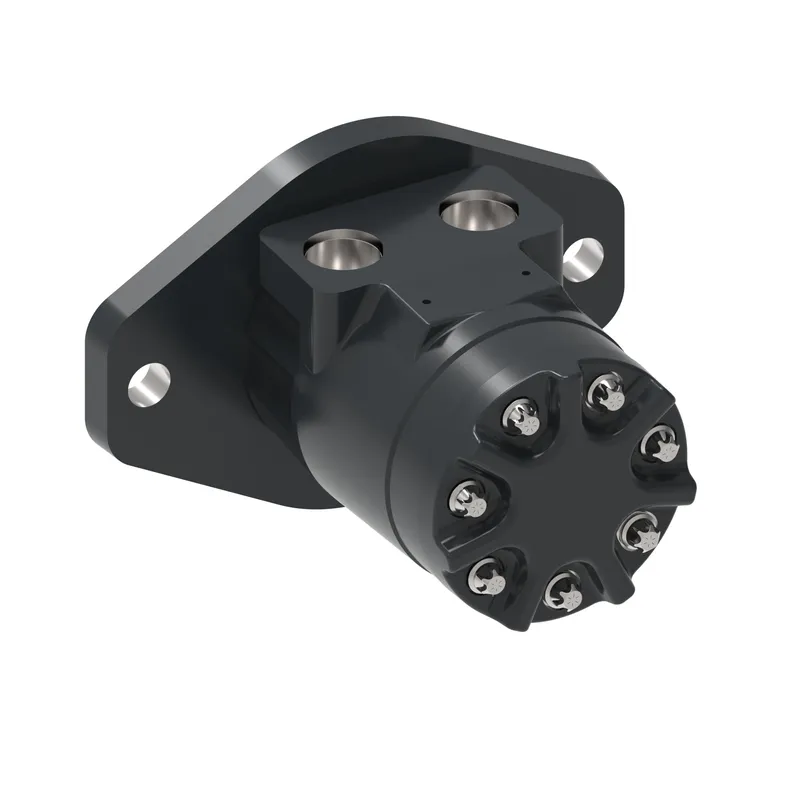

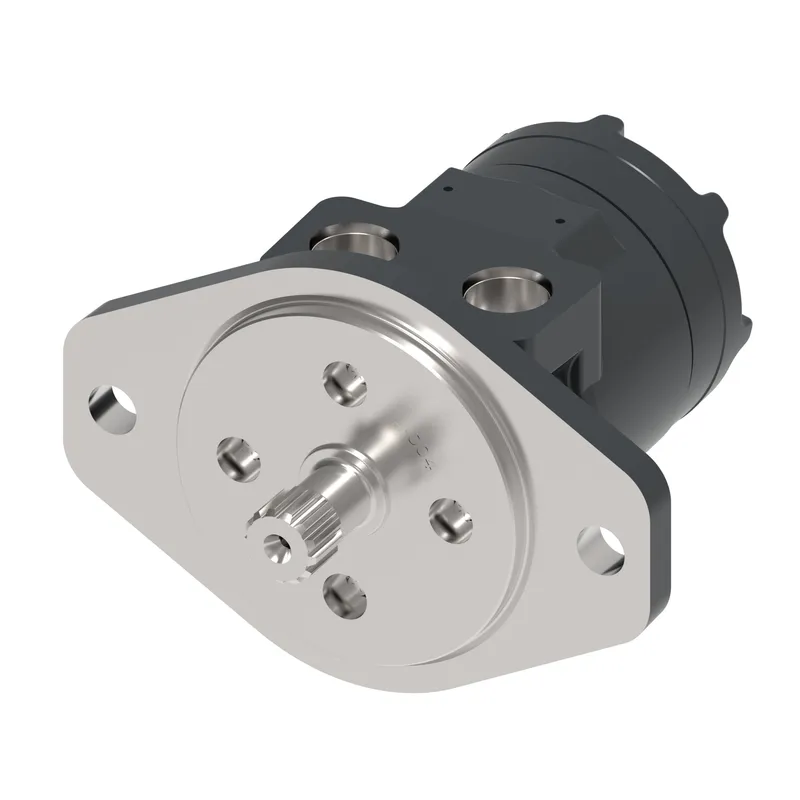

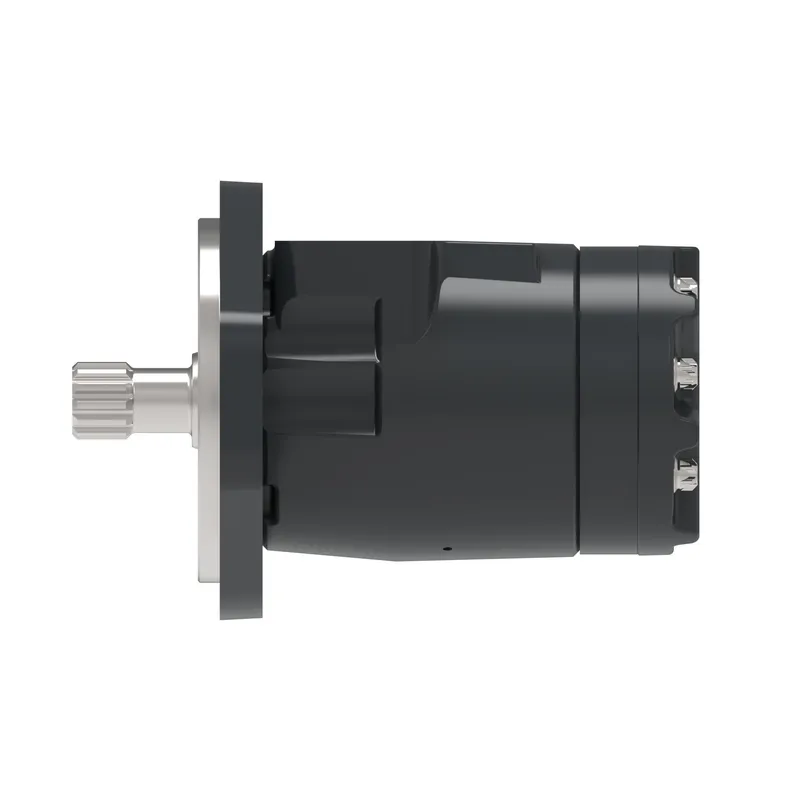

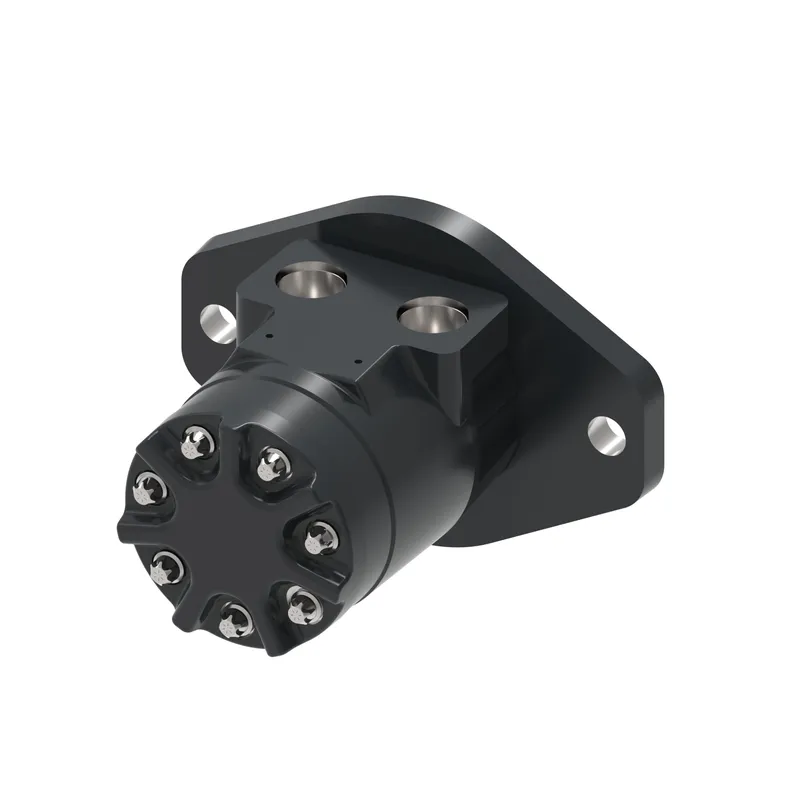

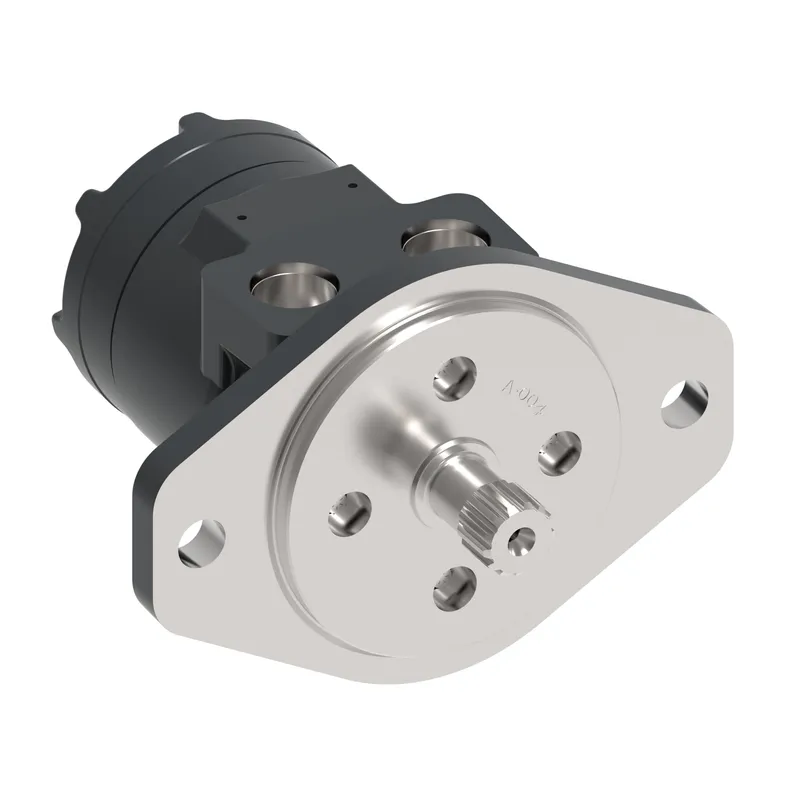

MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149DD02AA0000070000AB0AA00A
- MPN
- 158-4069-001
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Danfoss 158-4069-001?
Danfoss MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149DD02AA0000070000AB0AA00A, manufacturer part number 158-4069-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MT0149DD02AA0000070000AB0AA00A |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Mounting type | 2 s ductile p102 b146 h14 |
| Motor size | 245 |
| Geometric displacement [cm3/r [in3/r]] | 244 [14.9] |
| Motor type | Standard |
| Motor function | Higher efficiency and smooth running (Low speed valving) |
| Mounting flange type | 2 Bolt - B |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B - Spec. Component |
| Shaft type | Splined |
| Shaft dimension | Dia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main port thread type | UN / UNF |
| Main port style | Sideport - aligned |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | HNBR - High pressure |
| Seal Kit | 9900752-000 |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 01 |
| Brand | Danfoss |
| Output shaft type | 02 Spl 6b |
| Seal options | HP SHAFT SEAL |
| Series | T series motor |
| Sub brand | Char-Lynn |
No matching specifications
158-4069-001: frequently asked questions
When can 158-4069-001 be shipped?
158-4069-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 158-4069-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 158-4069-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-4069-001, subject to availability and destination.
