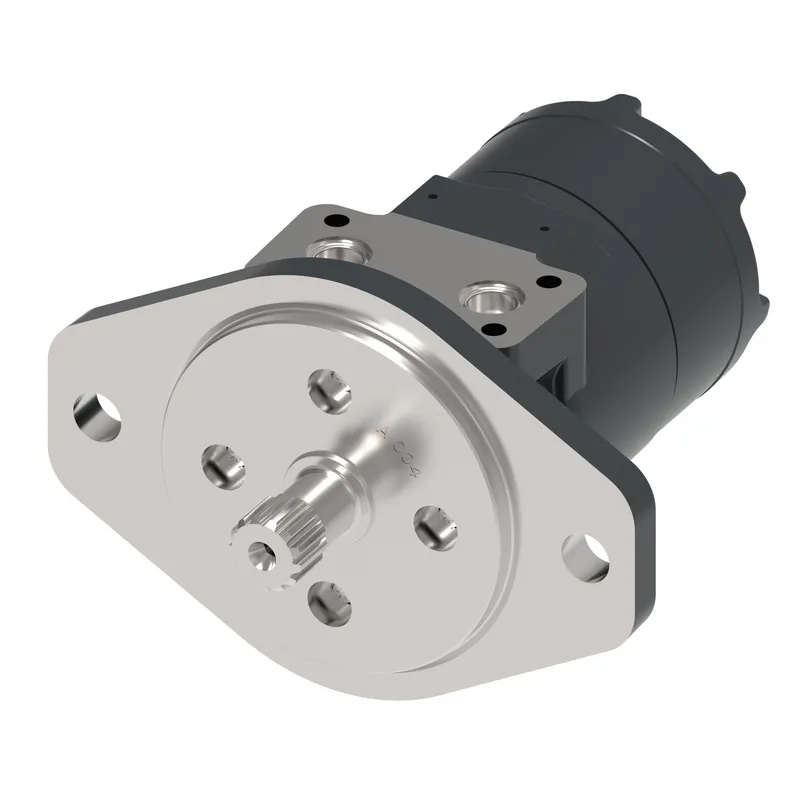

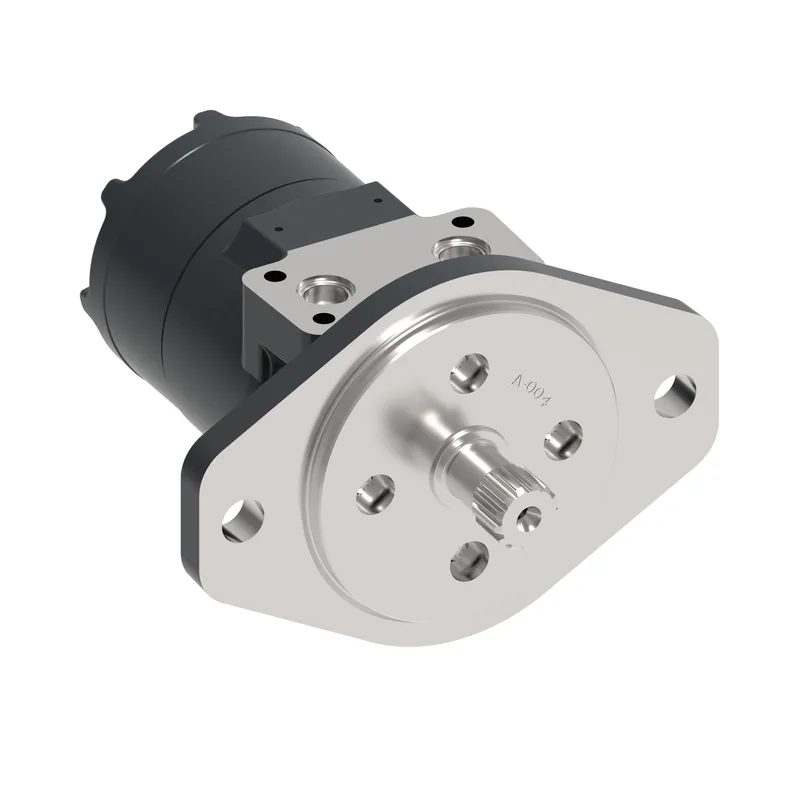

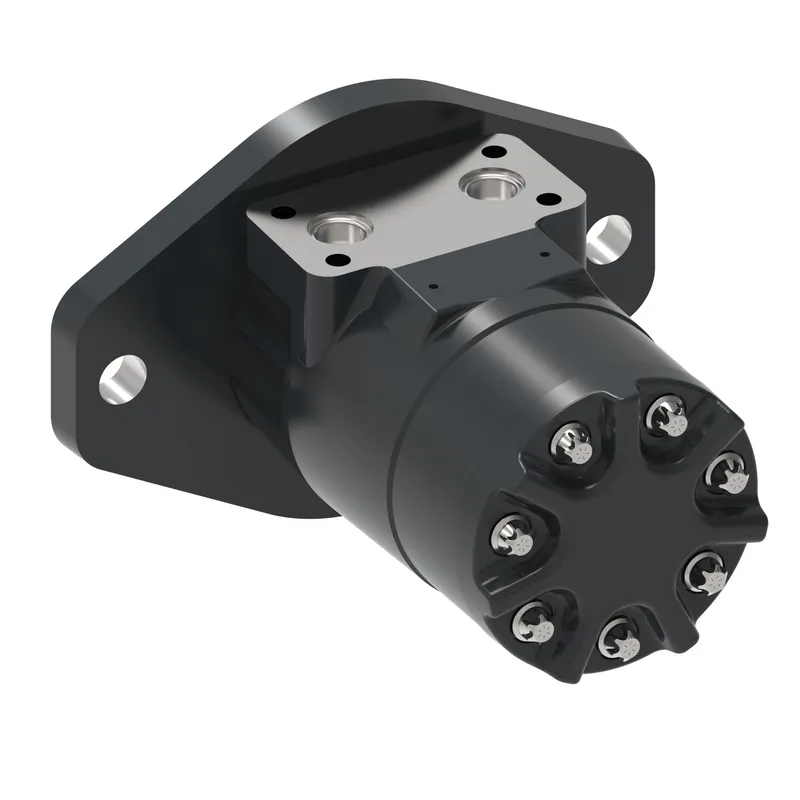

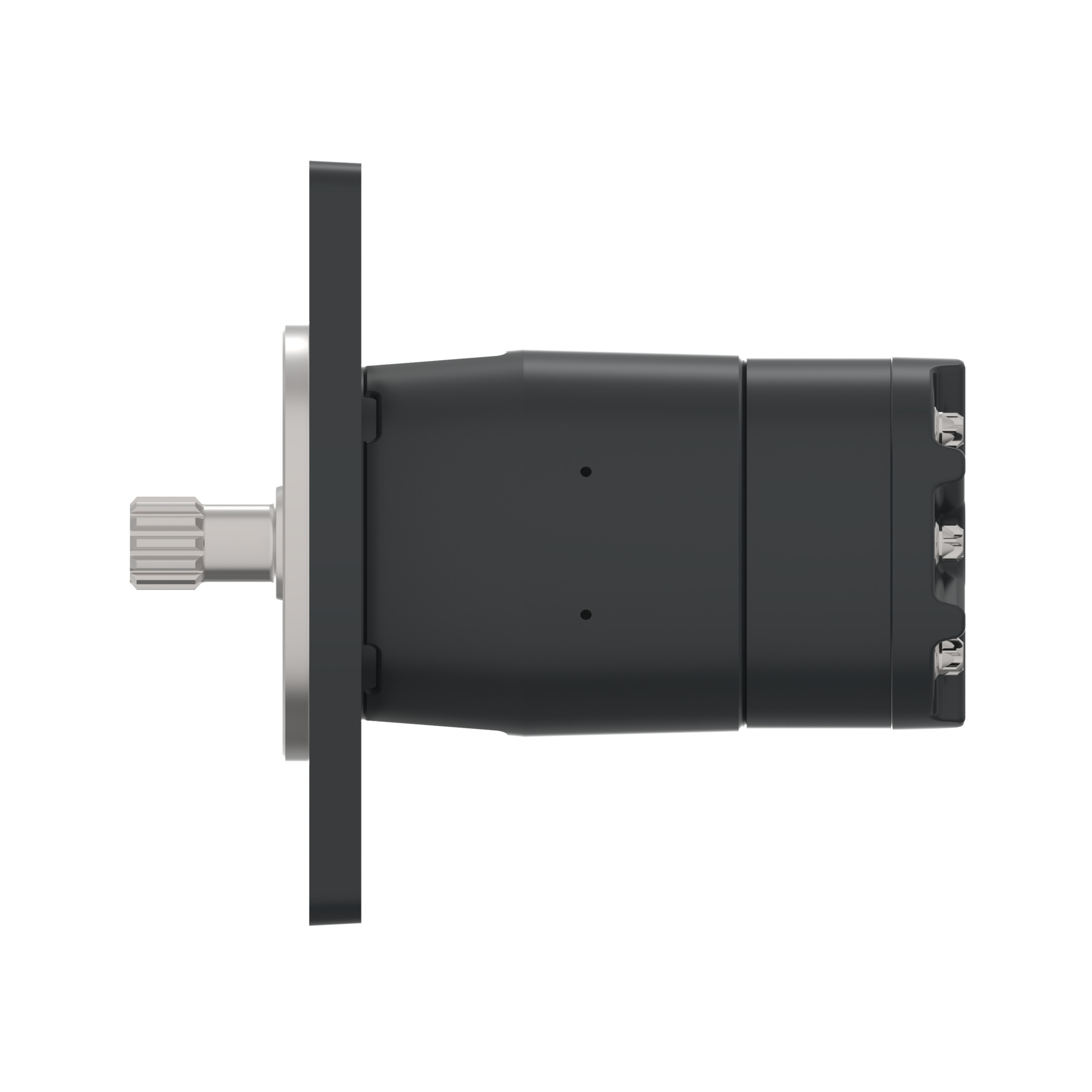

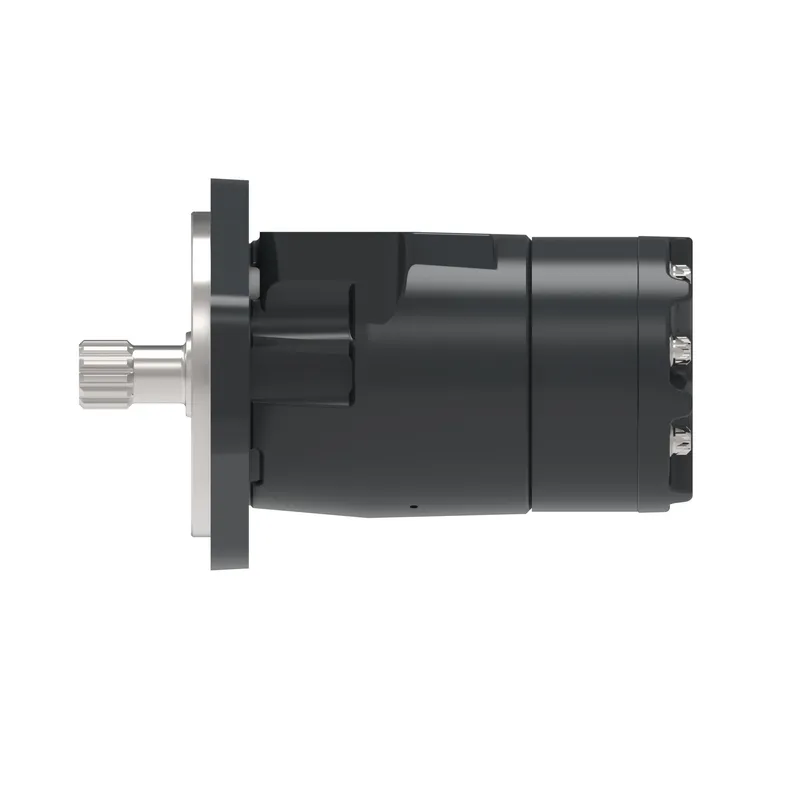

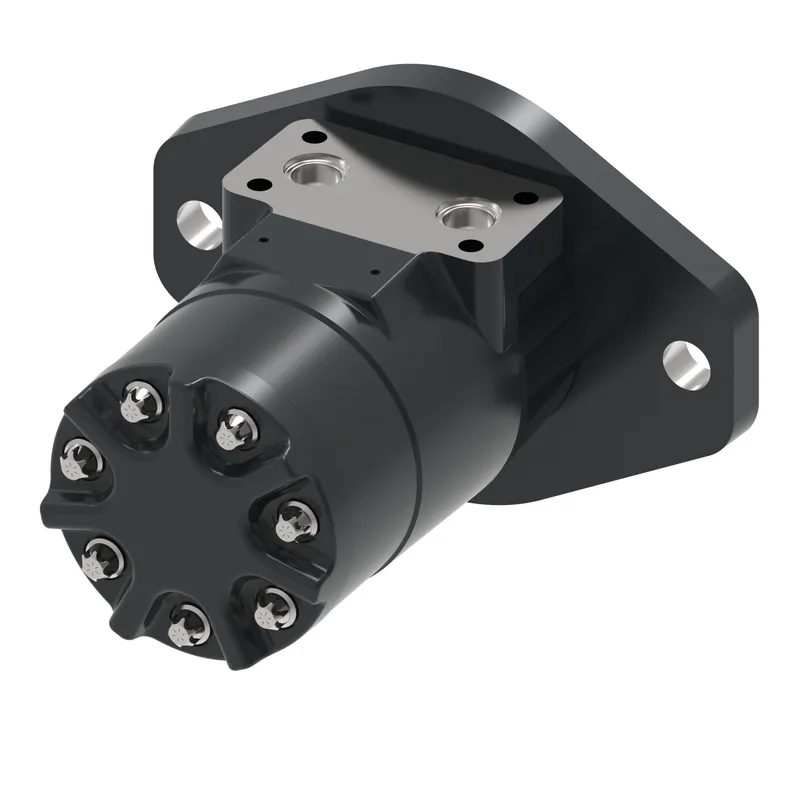

MOTOR-ORBITAL,T SERIES 65 [4], MT0040DD16AC00A0000000000AA00A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 158-3995-001 be shipped?
158-3995-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 158-3995-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 158-3995-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-3995-001, subject to availability and destination.
Danfoss MOTOR-ORBITAL,T SERIES 65 [4], MT0040DD16AC00A0000000000AA00A, manufacturer part number 158-3995-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MT0040DD16AC00A0000000000AA00A |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Mounting type | 2 s ductile p102 b146 h14 |
| Motor size | 65 |
| Geometric displacement [cm3/r [in3/r]] | 65 [4.0] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 2 Bolt - B |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B - Spec. Component |
| Shaft type | Splined |
| Shaft dimension | Dia. 7/8 inch, 13T |
| Shaft Key | n/a |
| Main port thread type | Manifold |
| Main port style | Sideport - aligned |
| Main port dimension | 0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 9900804-000 |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Free running |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 01 |
| Brand | Danfoss |
| Output shaft type | 16 Spl 13t |
| Seal options | Standard seals |
| Series | T series motor |
| Sub brand | Char-Lynn |
