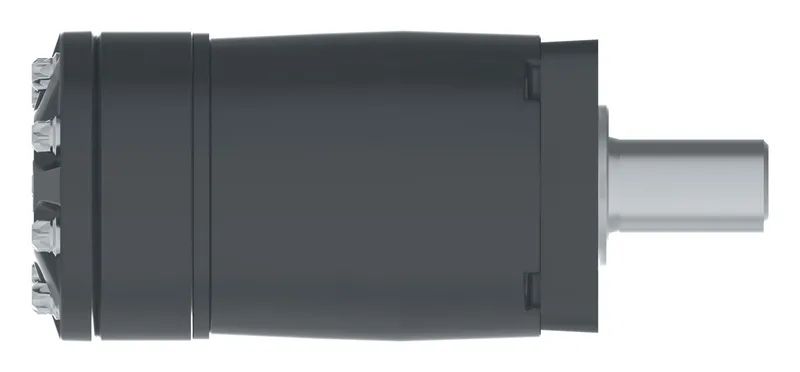

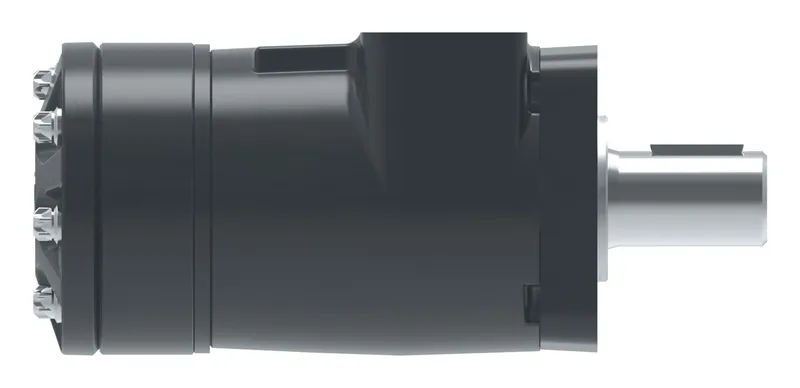

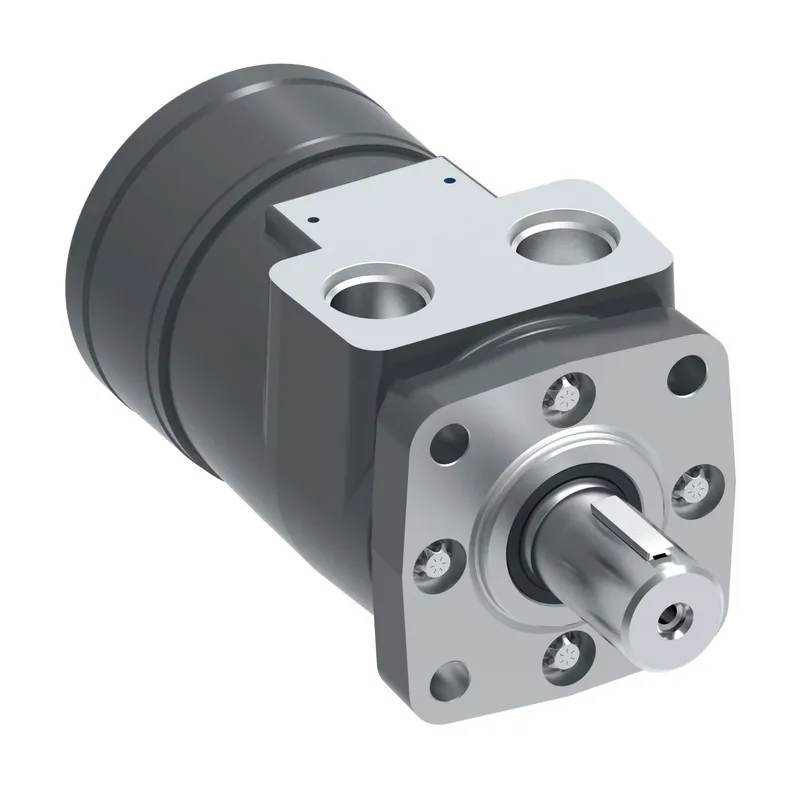

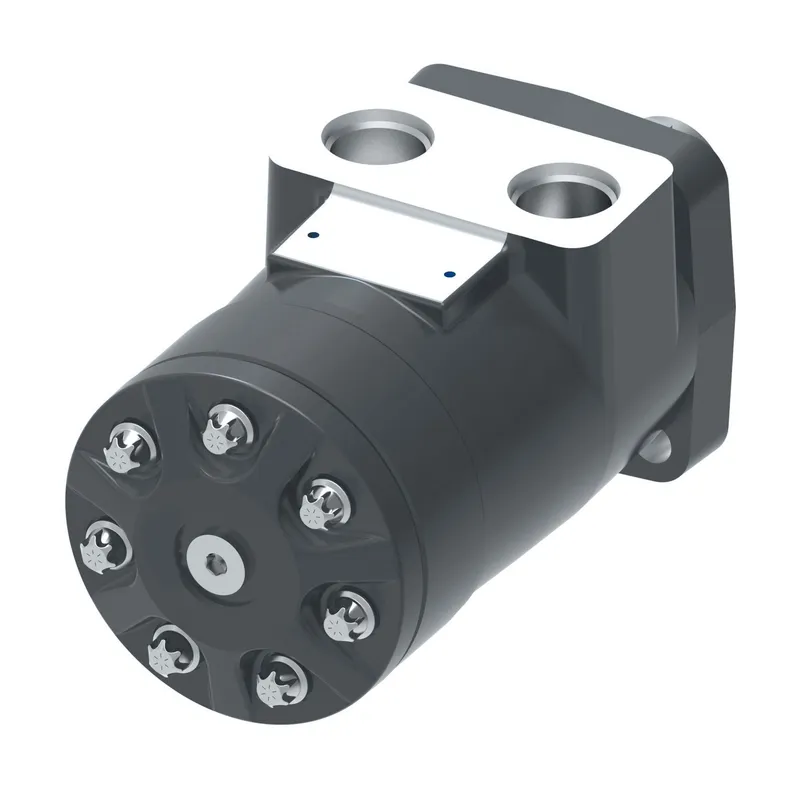

MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030BA01AA0000000000000AA00A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 158-3985-001 be shipped?
158-3985-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 158-3985-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 158-3985-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-3985-001, subject to availability and destination.
Danfoss MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030BA01AA0000000000000AA00A, manufacturer part number 158-3985-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MT0030BA01AA0000000000000AA00A |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Motor size | 50 |
| Geometric displacement [cm3/r [in3/r]] | 49 [3.0] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B] |
| Shaft type | Straight |
| Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main port thread type | UN / UNF |
| Main port style | Sideport - aligned |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | 9900808-000 |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 01 |
| Brand | Danfoss |
| Sub brand | Char-Lynn |
More Danfoss (Drives) parts
![MOTOR-ORBITAL,T SERIES 130 [8], MT0080BA01AA0000030000000AA00A](/media/placeholders/logo.webp){kind=logo}

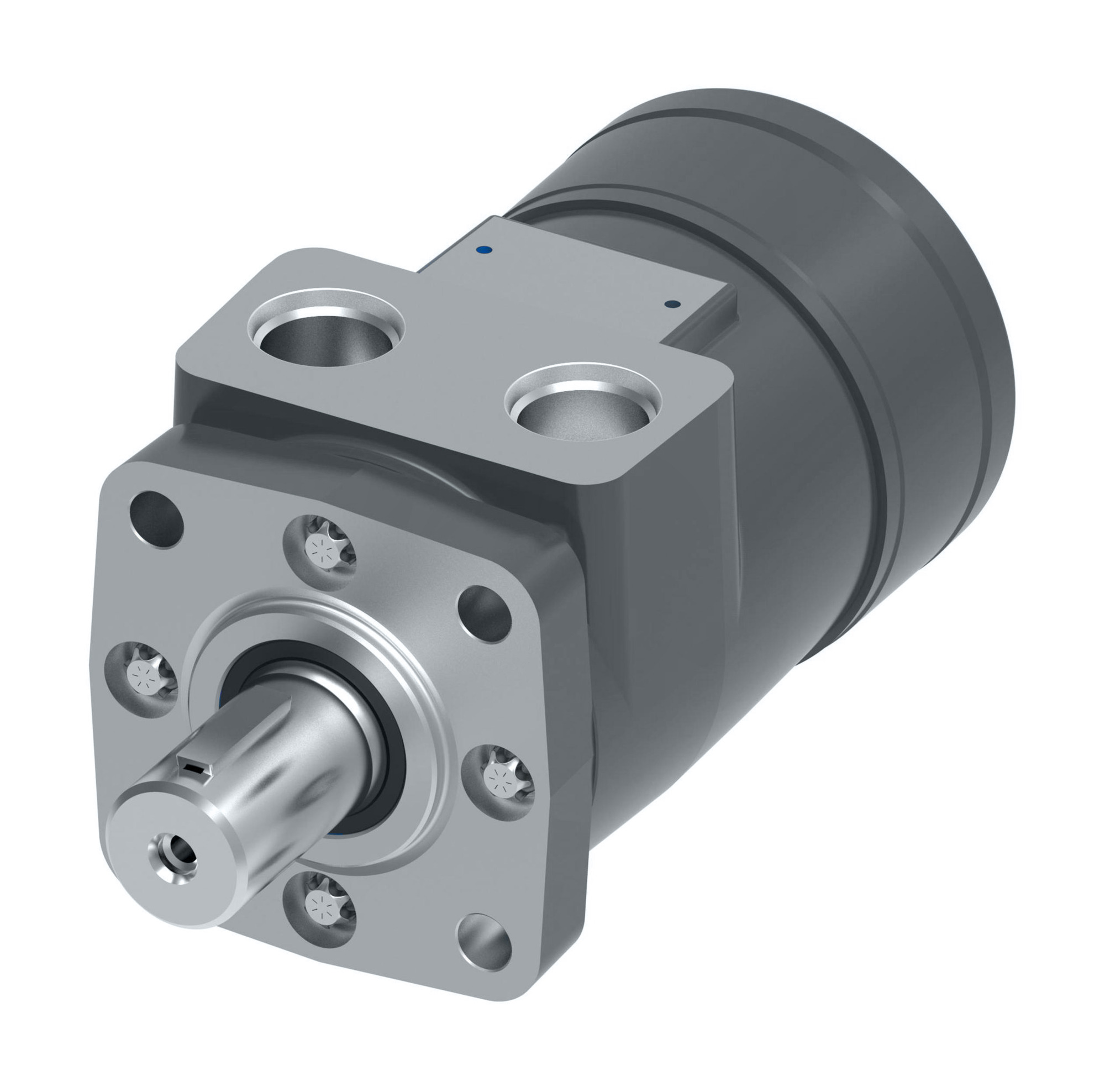

Available on requestMOTOR-ORBITAL,T SERIES 130 [8], MT0080BA01AA0000030000000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 30 [1.8], MT0018AA01AA0100070000000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 35 [2.2], MT0022BA01AA0000070000000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 50 [3], MT0030BA01AB0000000000000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 35 [2.2], MT0022AA01AA000000AE00000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 370 [22.6], MT0226AA01AA0000000000000AA00AAvailable on requestMOTOR-ORBITAL,T SERIES 195 [11.9], MT0119AA11AA0000000000AB0AA00A![MOTOR-ORBITAL,T SERIES 30 [1.8], MT0018BA01AA0100070000000AA00A](/media/assets/danfoss-drives/158-3991-001/images/sha256_a58e9e1aa8f372dcd2f4f7701788ff2020dce3e81e8b045ac7c034db44e71a0d.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F334467%2FID463834457964-0101_preview.jpg&w=400)
