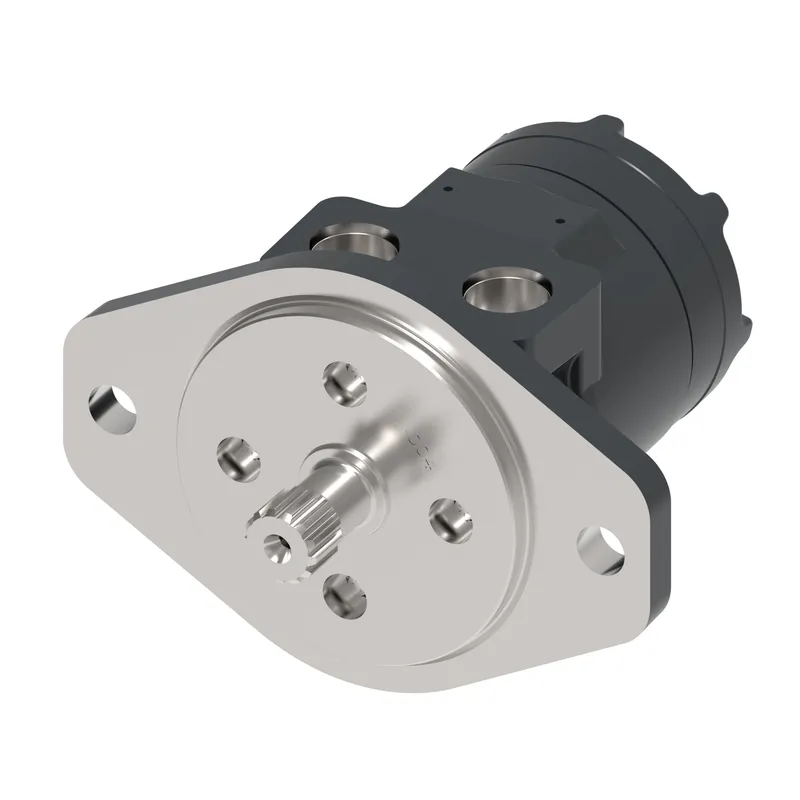

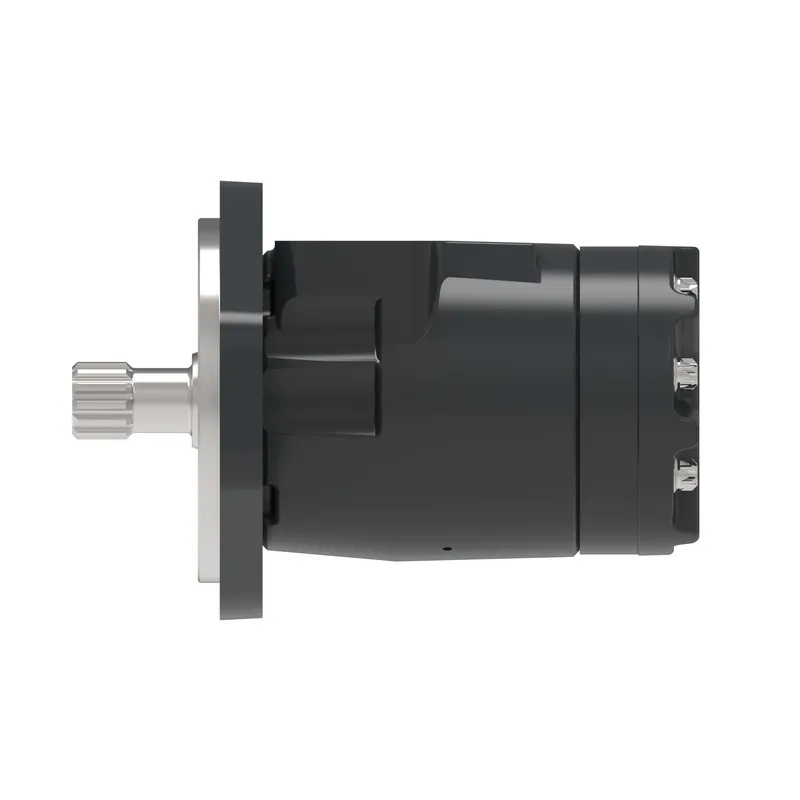

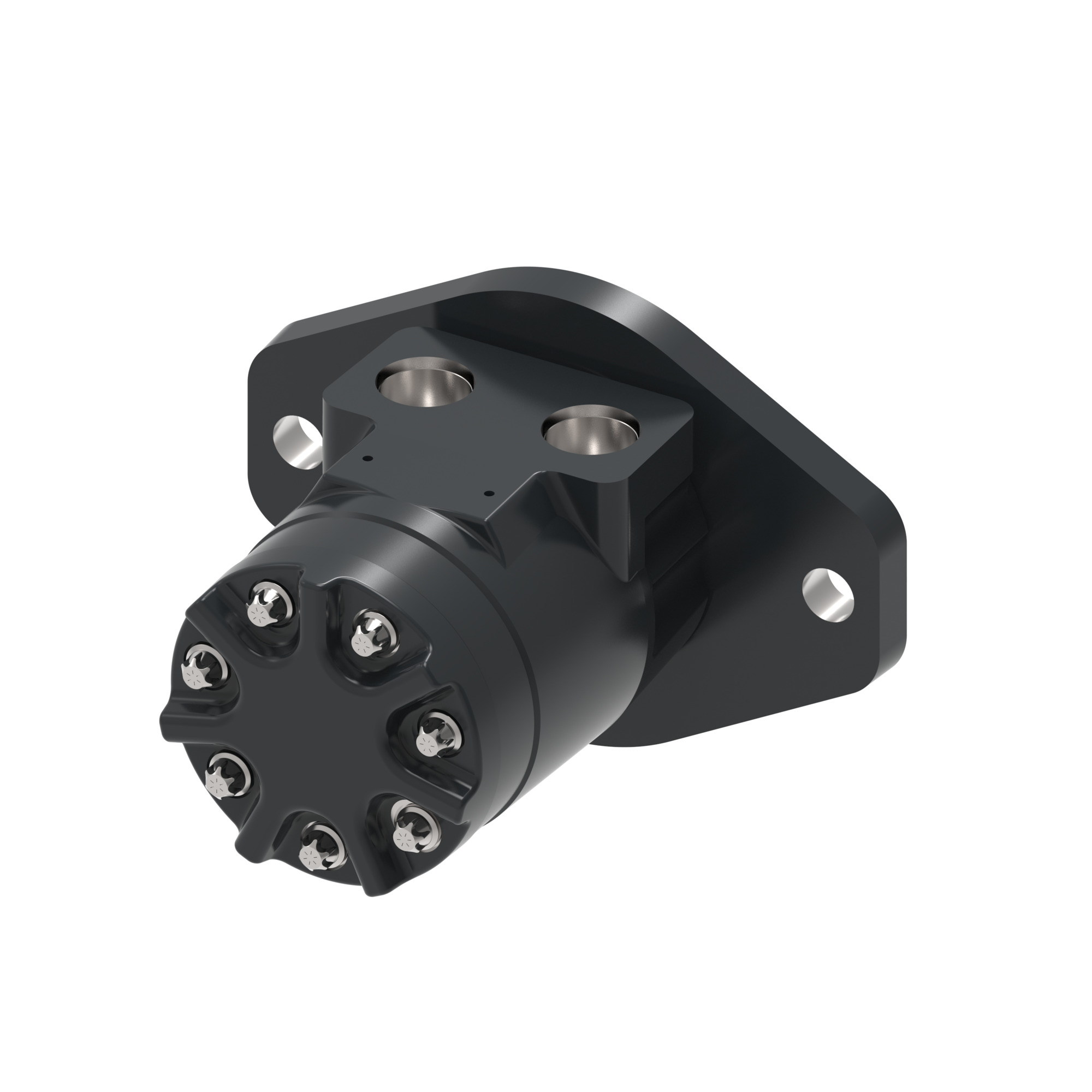

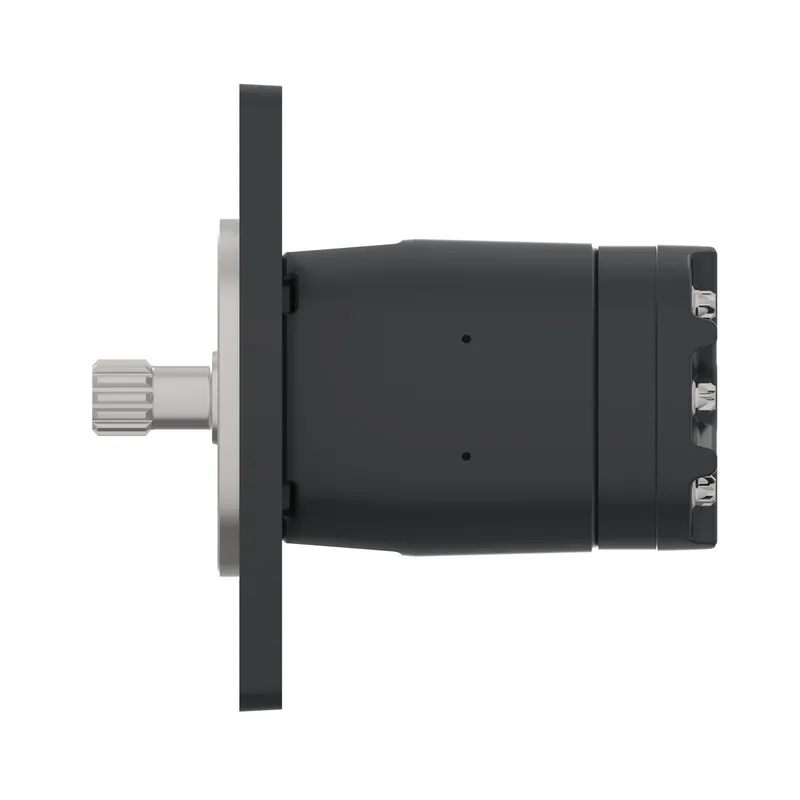

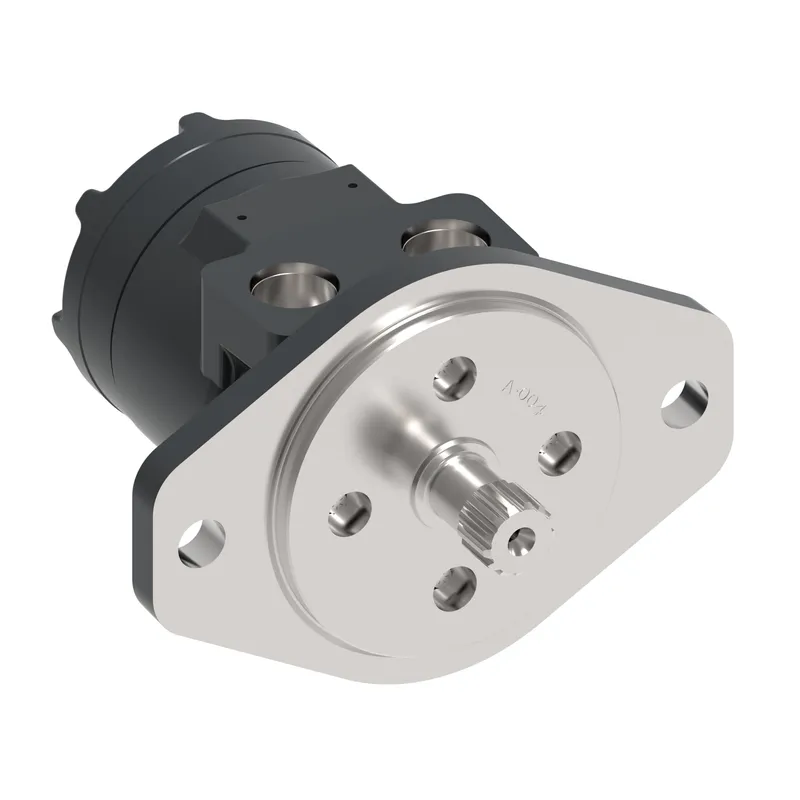

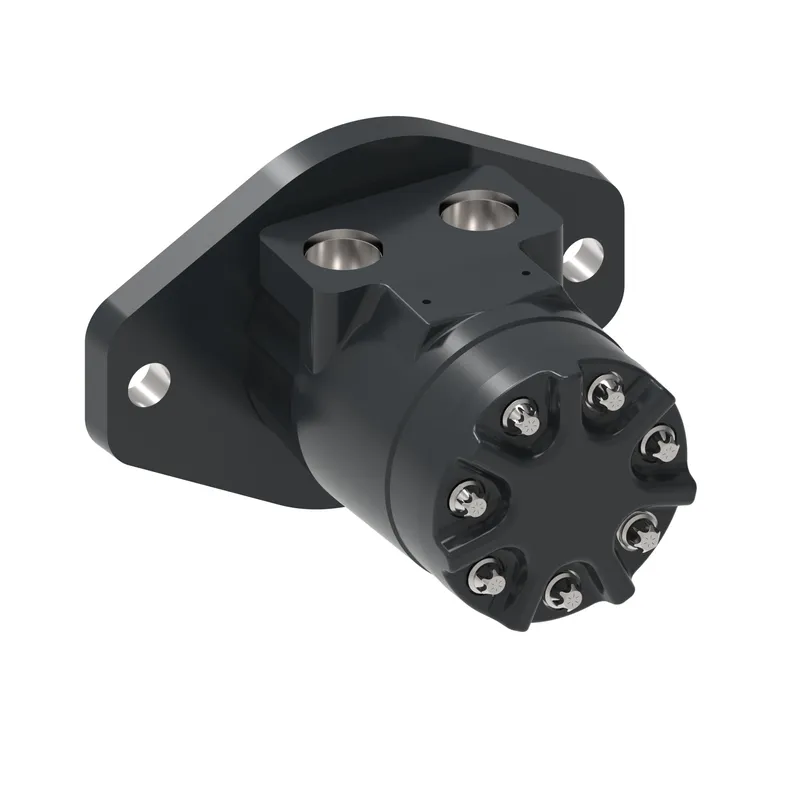

Danfoss 158-3956-001

MOTOR-ORBITAL,T SERIES 65 [4], MT0040DD01AA00000000000000000A

MPN
158-3956-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-3956-001?

Danfoss MOTOR-ORBITAL,T SERIES 65 [4], MT0040DD01AA00000000000000000A, manufacturer part number 158-3956-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0040DD01AA00000000000000000A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Mounting type2 s ductile p102 b146 h14
Motor size65
Geometric displacement [cm3/r [in3/r]]65 [4.0]
Motor typeStandard
Motor functionStandard
Mounting flange type2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B - Spec. Component
Shaft typeStraight
Shaft dimensionDia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft KeyWoodruff key
Main port thread typeUN / UNF
Main port styleSideport - aligned
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Drain Port DimensionNone
Brake Release Port Dimensionn/a
PaintedNo
Paint informationn/a
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit9900808-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingNo data available
Name TagDanfoss name tag
Design code01
BrandDanfoss
Output shaft type01 Str 1in
Seal optionsStandard seals
SeriesT series motor
Sub brandChar-Lynn
