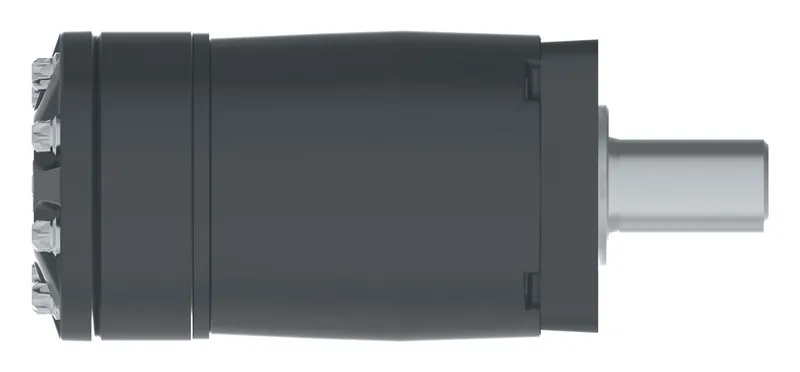

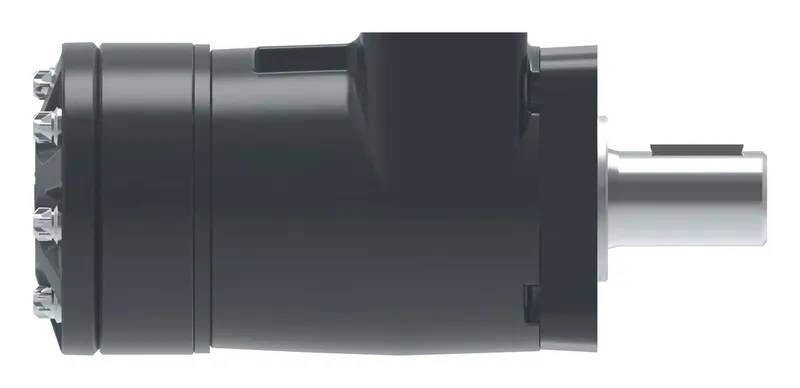

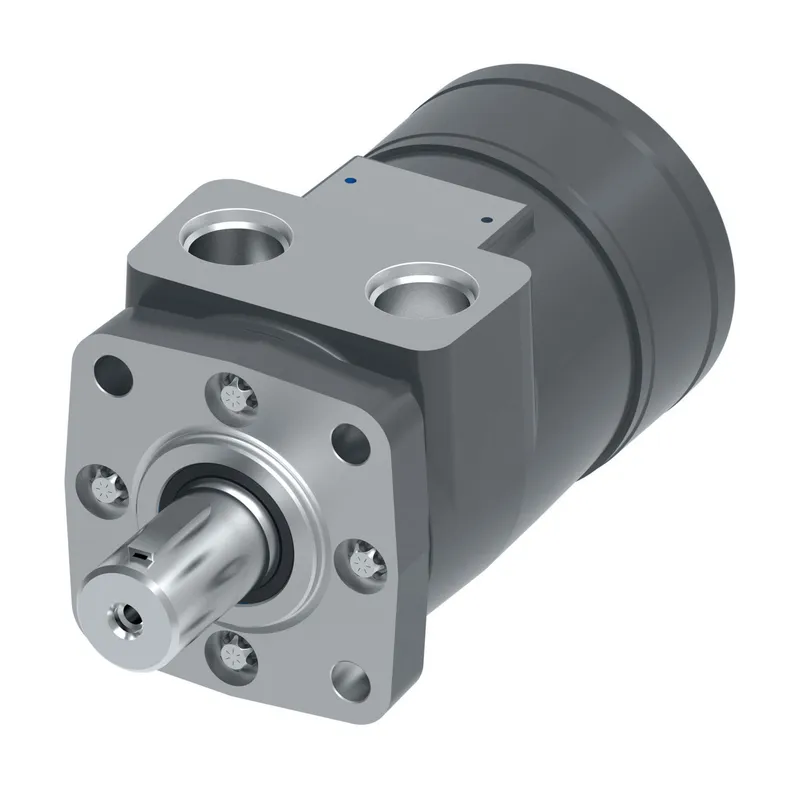

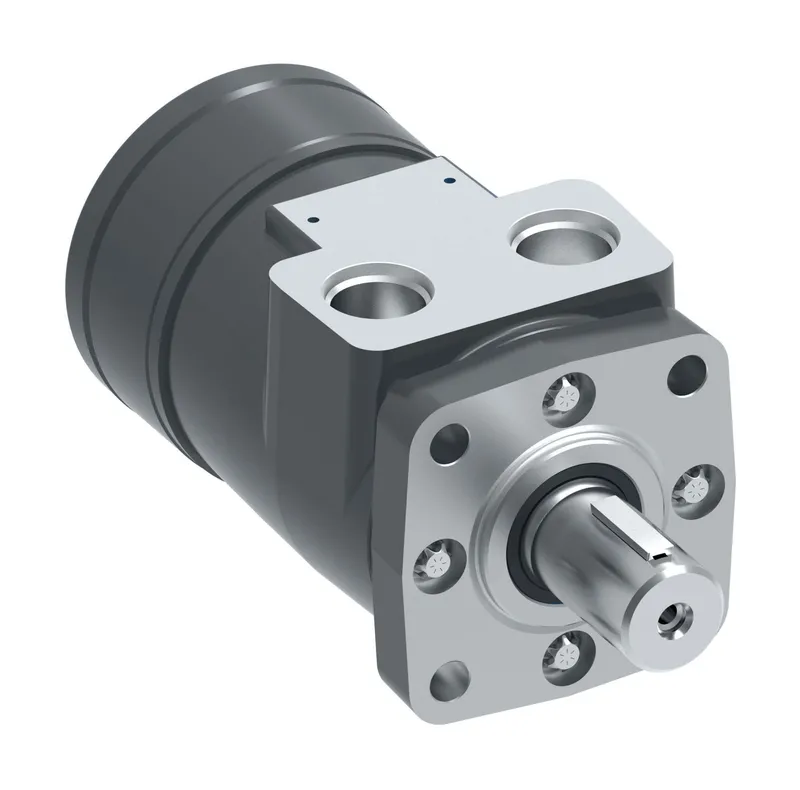

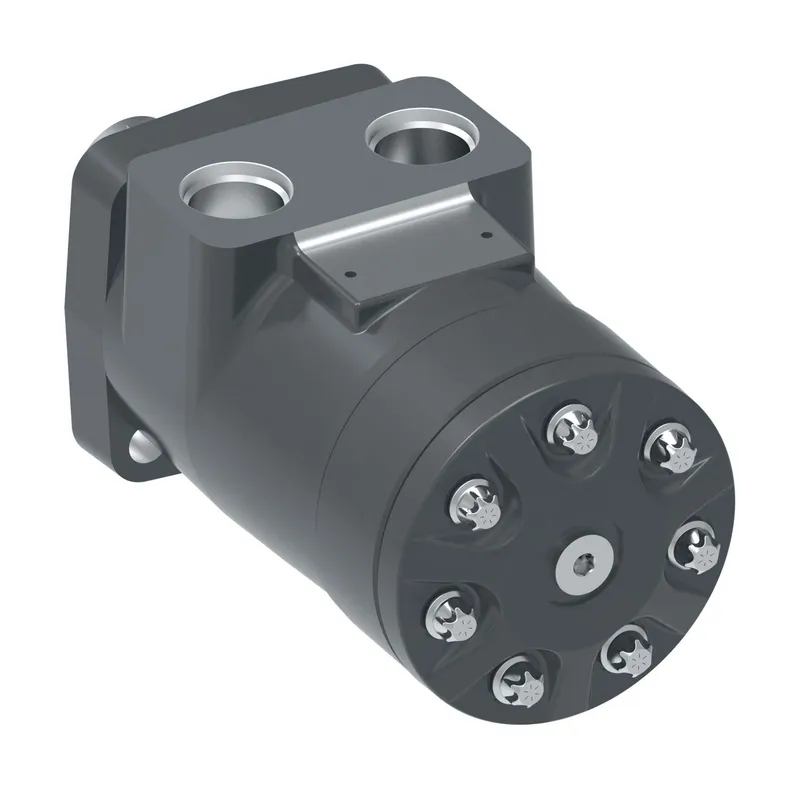

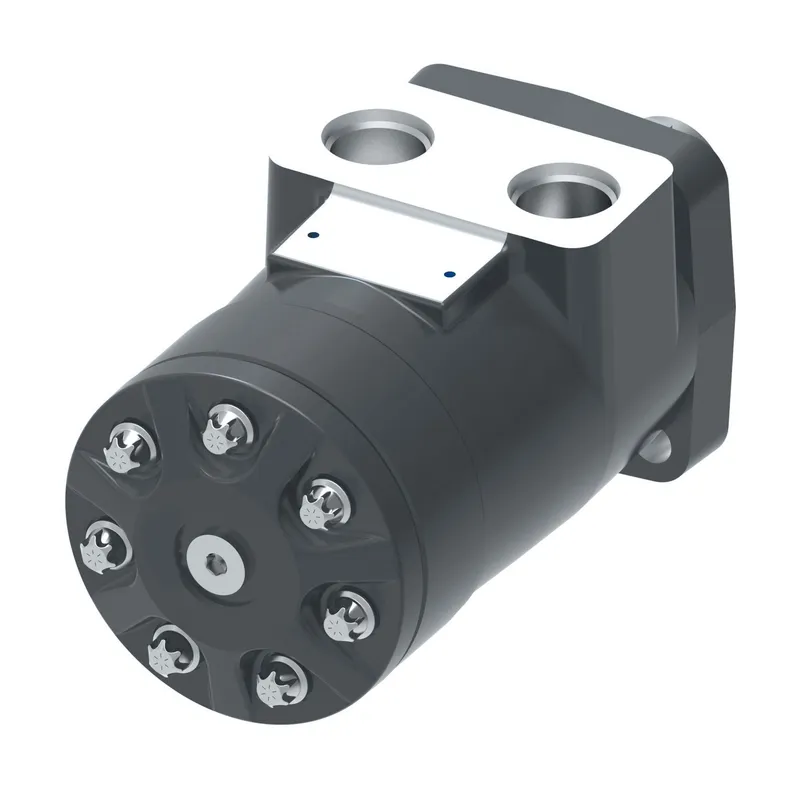

Danfoss 158-2987-001

MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030BA01AA00000300000000000A

MPN
158-2987-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-2987-001?

Danfoss MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030BA01AA00000300000000000A, manufacturer part number 158-2987-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0030BA01AA00000300000000000A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Motor size50
Geometric displacement [cm3/r [in3/r]]49 [3.0]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B]
Shaft typeStraight
Shaft dimensionDia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft KeyWoodruff key
Main port thread typeUN / UNF
Main port styleSideport - aligned
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Drain Port DimensionNone
Brake Release Port Dimensionn/a
PaintedNo
Paint informationn/a
Special Features AssemblyStandard
Dust sealStandard
Shaft SealFPM viton - Standard
Seal Kit9900860-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingNo data available
Name TagDanfoss name tag
Design code01

158-2987-001: frequently asked questions

When can 158-2987-001 be shipped?

158-2987-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 158-2987-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 158-2987-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-2987-001, subject to availability and destination.
