Danfoss 158-2800-001

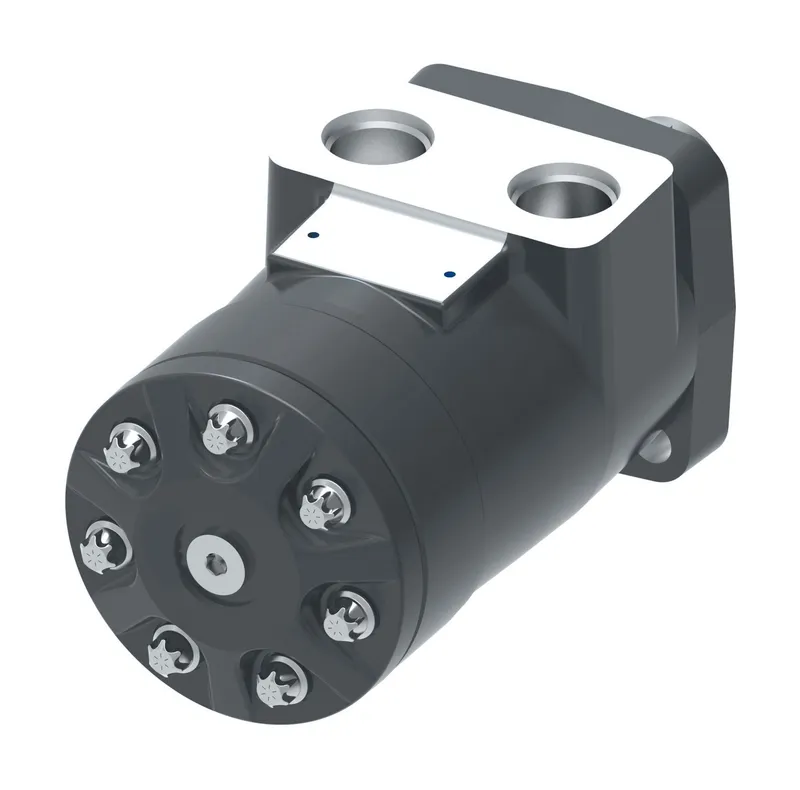

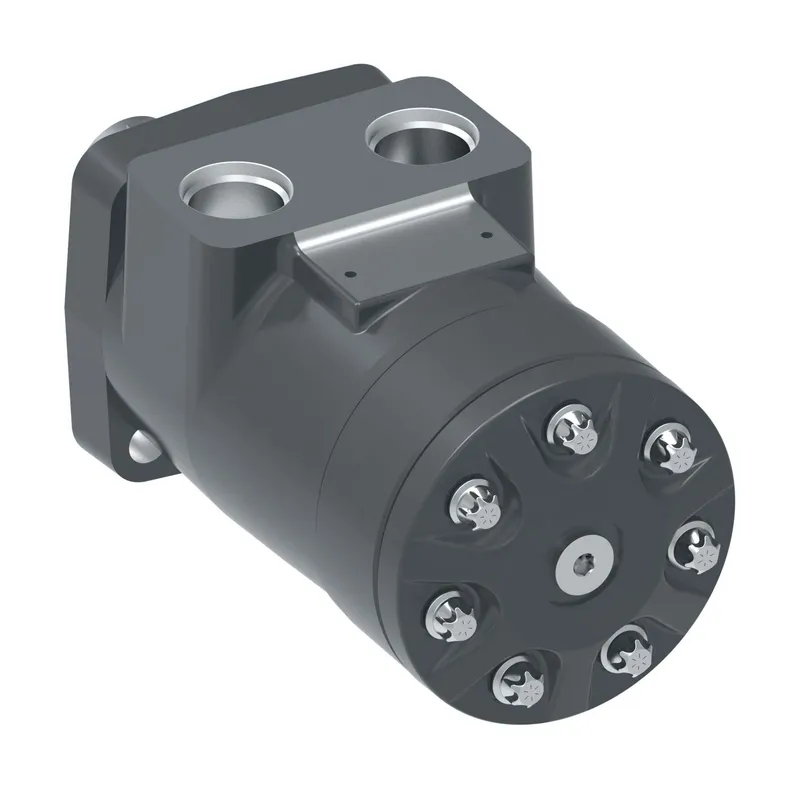

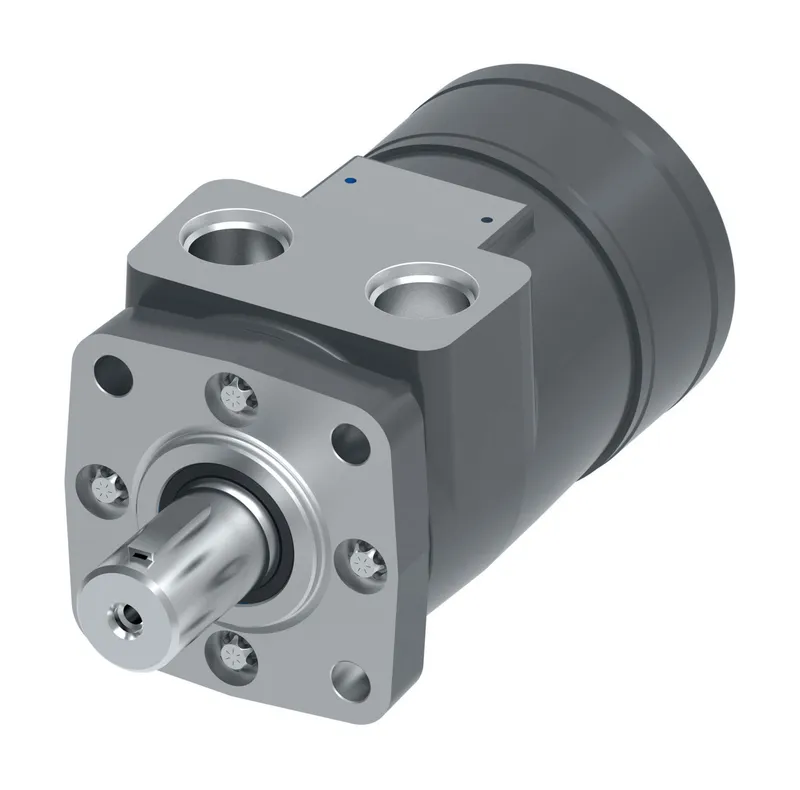

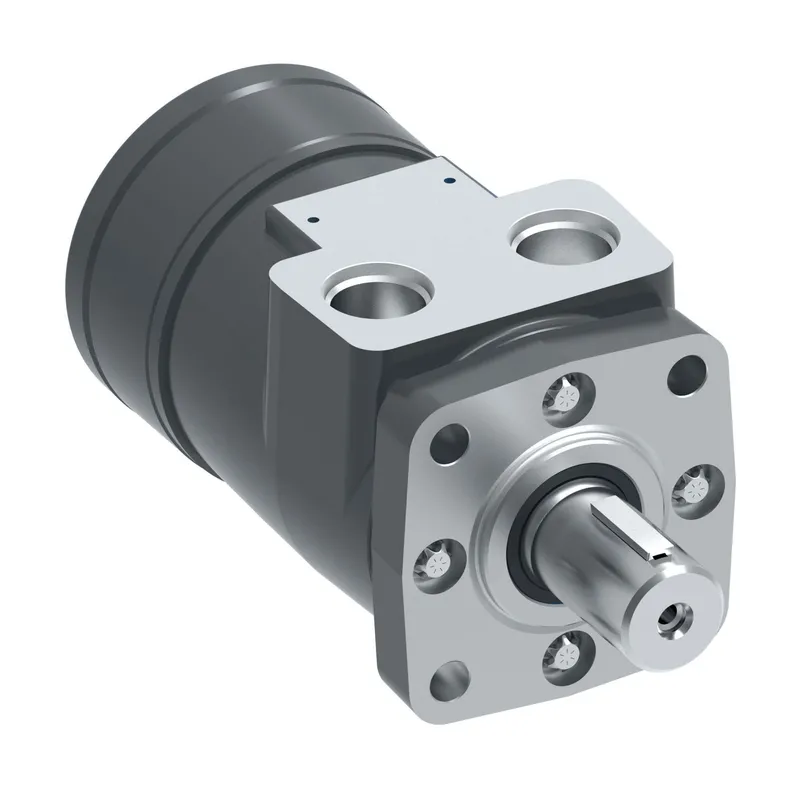

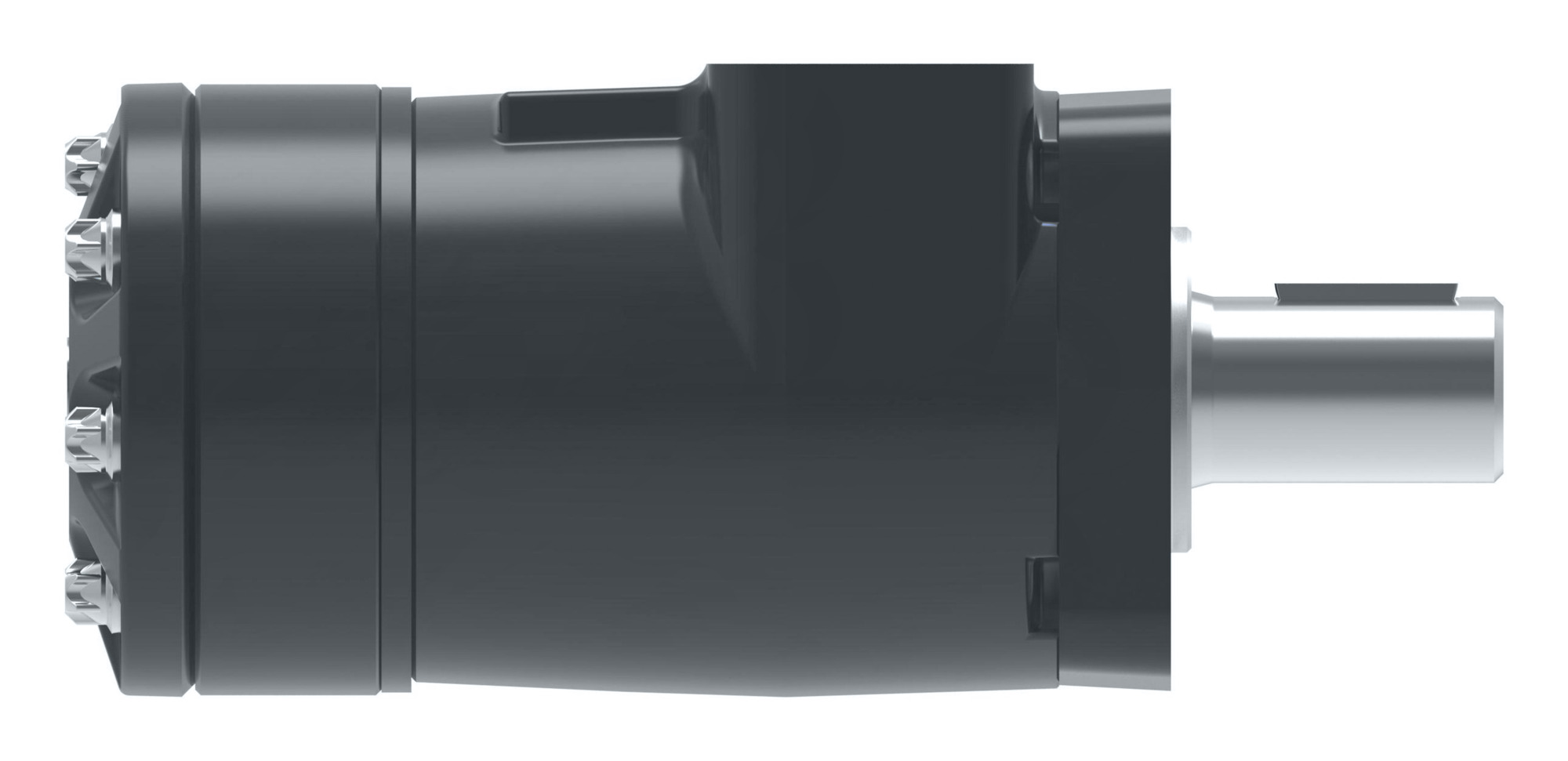

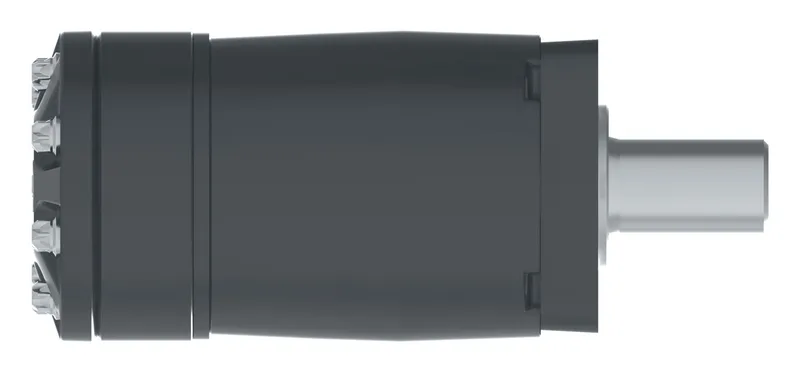

MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119FA02AF0000000000000AA00A

MPN
158-2800-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-2800-001?

Danfoss MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119FA02AF0000000000000AA00A, manufacturer part number 158-2800-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0119FA02AF0000000000000AA00A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Motor size195
Geometric displacement [cm3/r [in3/r]]195 [11.9]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]44.4 x 3.1, 82.6, M10 x 1.50-6H [1.75 x 0.12, 3.25, M10 x 1.50-6H]
Shaft typeSplined
Shaft dimensionDia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Keyn/a
Main port thread typeBSP
Main port styleSideport - aligned
Main port dimensionG 1/2
Drain Port DimensionNone
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPrimer, Black, Low gloss
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit9900808-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingNo data available
Name TagDanfoss name tag
Design code01

158-2800-001: frequently asked questions

When can 158-2800-001 be shipped?

158-2800-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 158-2800-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 158-2800-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-2800-001, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 158-2779-001 – MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149AA01AC0000000000AB0AA00A
Danfoss
158-2779-001

MOTOR-ORBITAL,T SERIES 245 [14.9], MT0149AA01AC0000000000AB0AA00A

Danfoss 158-2781-001 – MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062AA24AF0000000000000AA00A
Danfoss
158-2781-001

MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062AA24AF0000000000000AA00A

Danfoss 158-2789-001 – MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096AA24AF0000000000000AA00A
Danfoss
158-2789-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096AA24AF0000000000000AA00A

Danfoss 158-2790-001 – MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030MA39AF0200000000000AA00A
Danfoss
158-2790-001

MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030MA39AF0200000000000AA00A

Danfoss 158-2801-001 – MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096MA39AF0200000000000AA00A
Danfoss
158-2801-001

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096MA39AF0200000000000AA00A

Danfoss 158-2802-001 – MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187MA39AF0200000000000AA00A
Danfoss
158-2802-001

MOTOR-ORBITAL,T SERIES 305 [18.7], MT0187MA39AF0200000000000AA00A

Danfoss 158-2803-001 – MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030MA39AF02000000000000000A
Danfoss
158-2803-001

MOTOR-ORBITAL,T SERIES 50 [3.0], MT0030MA39AF02000000000000000A

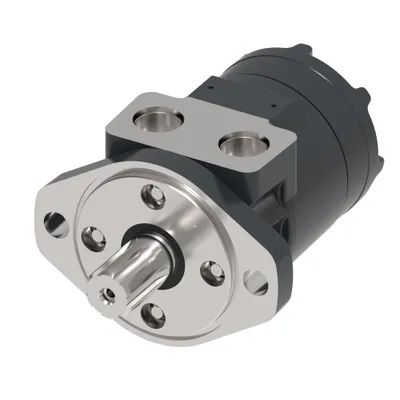

Danfoss 158-2804-001 – MOTOR-ORBITAL,T SERIES 80 [4.9], MT0049MA39AF02000000000000000A
