Danfoss 15613-16-16Z

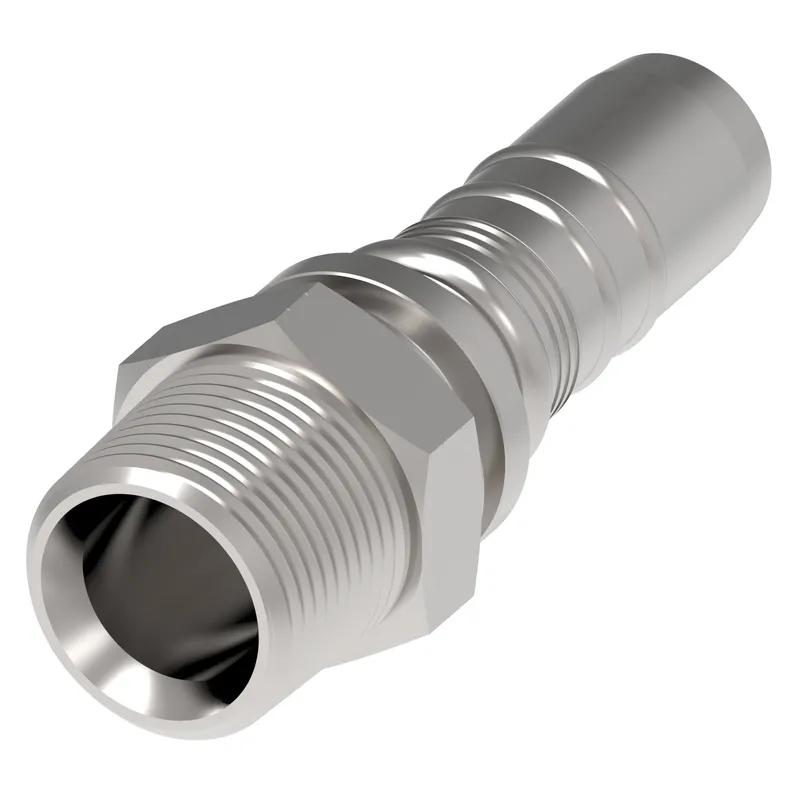

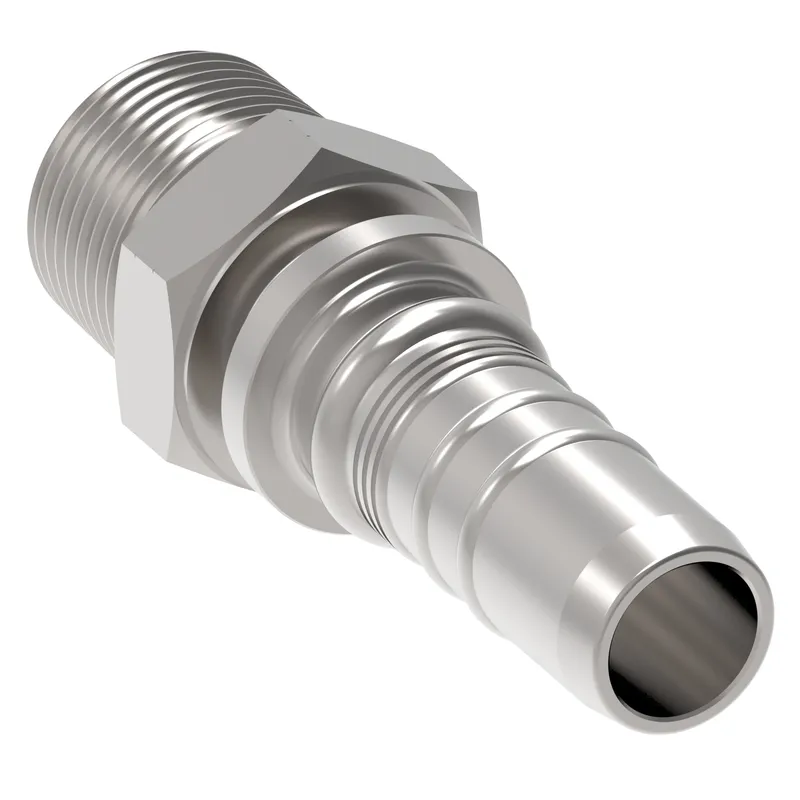

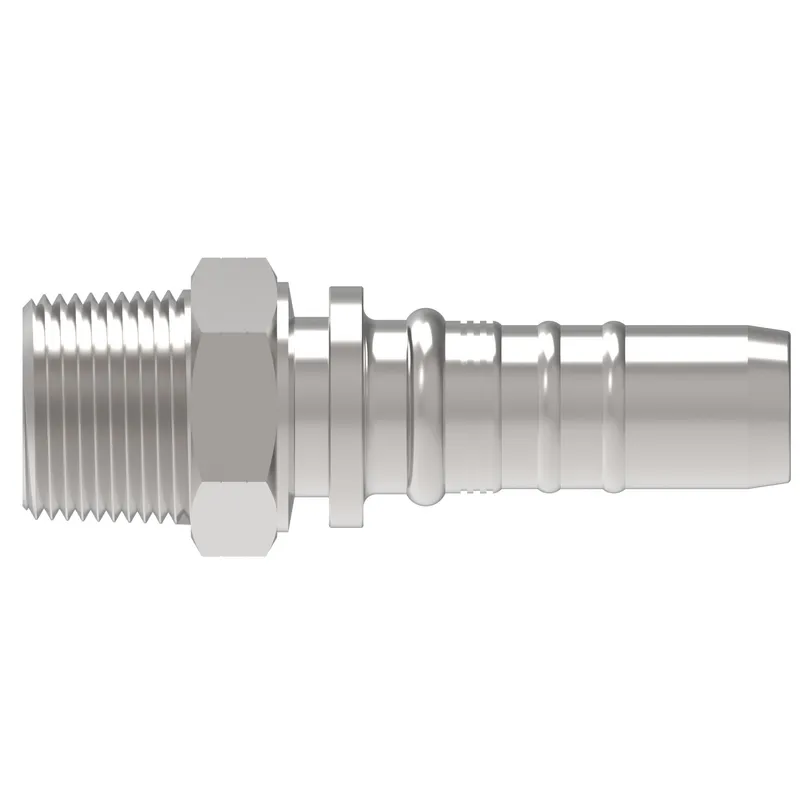

HOSE NIPPLE ASSY,2P/16,NPTF-M/16,CS,STR

MPN: 15613-16-16Z
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 15613-16-16Z?

Danfoss HOSE NIPPLE ASSY,2P/16,NPTF-M/16,CS,STR, manufacturer part number 15613-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.350
A dimension MM	110.500
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-16
End size 2	-16
End type 1	Male pipe (NPTF)
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.496
Hex size 1 MM	38.000
Hose cut off factor IN	1.880
Hose cut off factor MM	47.900
Hose size	-16
Inside diameter IN	0.7400
Inside diameter MM	19.0000
Product height in	1.724
Product height mm	43.800
Product length in	4.350
Product length mm	110.500
Product material	Carbon steel
Product width in	1.496
Product width mm	38.000 mm
Series	Winner 2-Piece
Thread sealant	No
