Danfoss 15611Y-F16-16Z

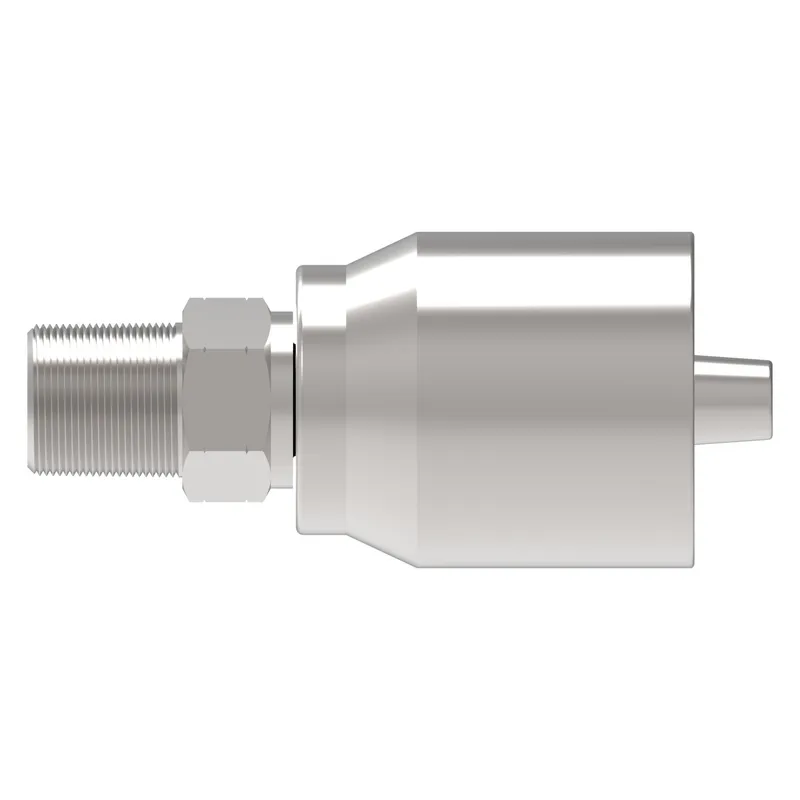

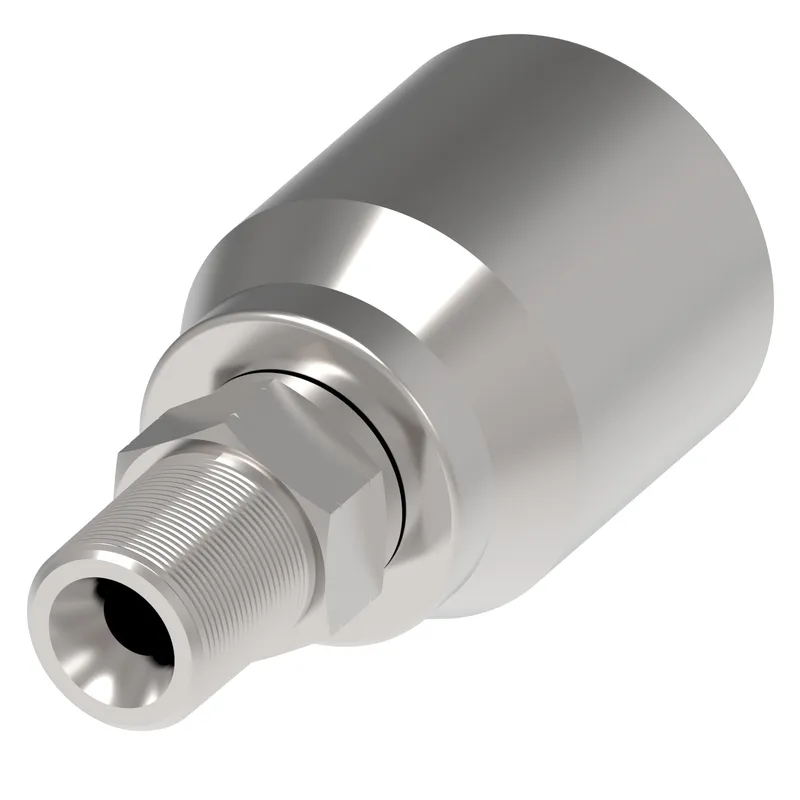

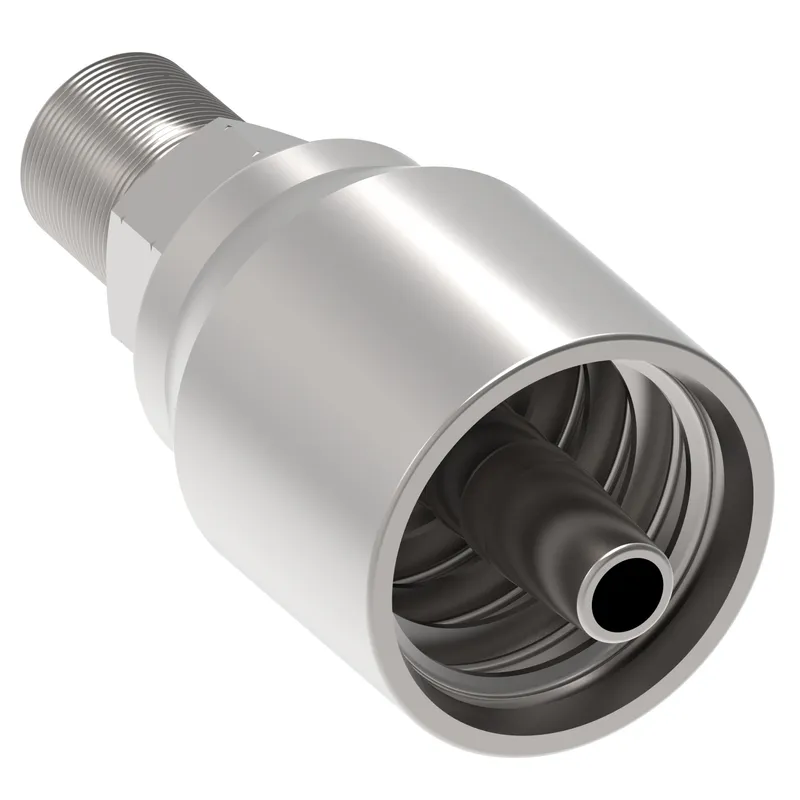

HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR

MPN
15611Y-F16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 15611Y-F16-16Z?

Danfoss HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR, manufacturer part number 15611Y-F16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.680
A dimension MM93.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-16
End Type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN1.417
Hex size 1 MM35.992
Hose cut off factor IN1.830
Hose cut off factor MM46.500
Hose size-16
Inside diameter IN0.830
Inside diameter MM21.000
Product height in1.929
Product height mm48.996
Product length in3.680
Product length mm93.472
Product materialCarbon steel
Product width in1.929
Product width mm48.996
Thread sealantYes
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

15611Y-F16-16Z: frequently asked questions

When can 15611Y-F16-16Z be shipped?

15611Y-F16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15611Y-F16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15611Y-F16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15611Y-F16-16Z, subject to availability and destination.
