Danfoss 15611-F12-12ZF

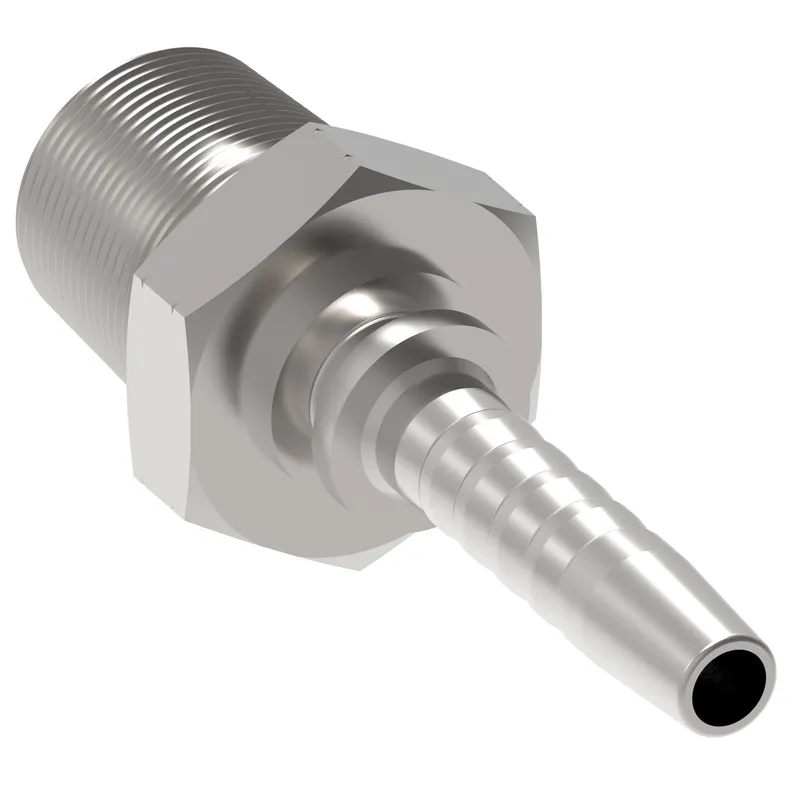

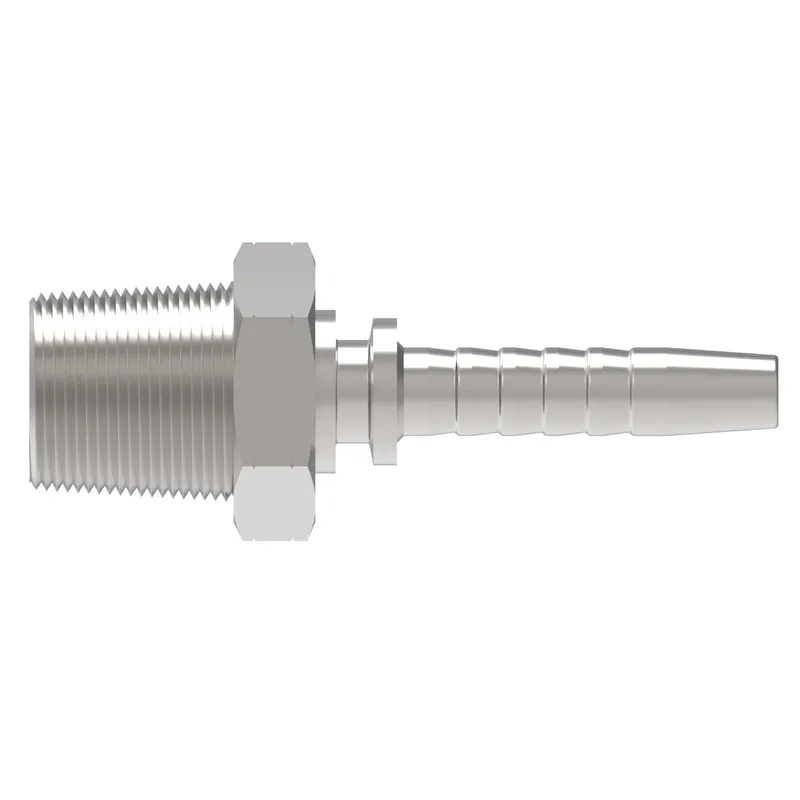

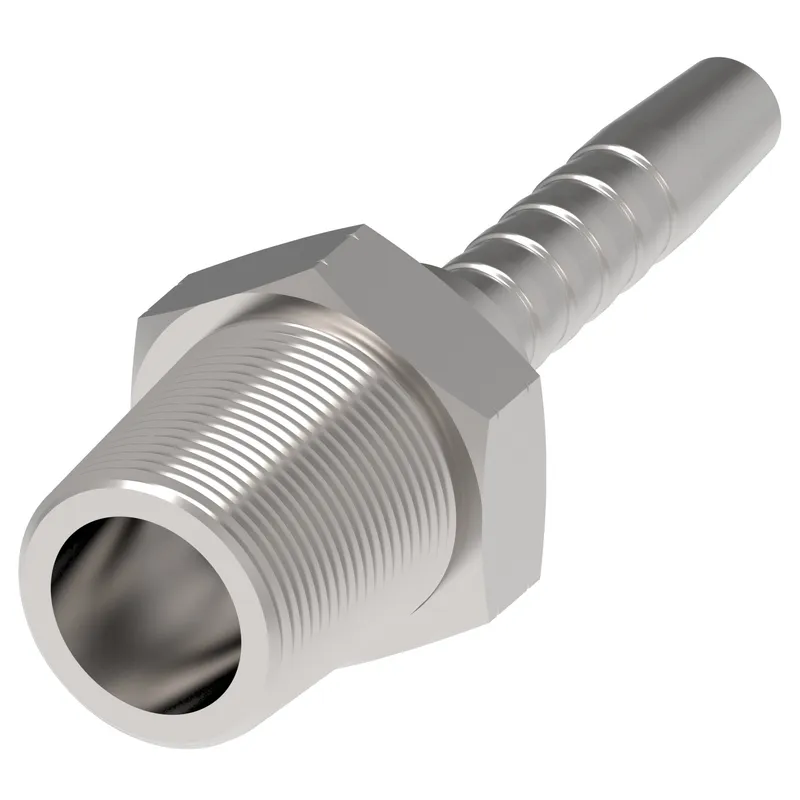

HOSE NIPPLE ASSY,2P/12,NPTF-M/12,CS,STR

MPN
15611-F12-12ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 15611-F12-12ZF?

Danfoss HOSE NIPPLE ASSY,2P/12,NPTF-M/12,CS,STR, manufacturer part number 15611-F12-12ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191632
A dimension IN3.030
A dimension MM77.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hoses EC110, EC115, EC118, EC210, EC215
Construction StyleCrimp
End size 1-12
End Type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN1.180
Hex size 1 MM29.972
Hex size 2 MM30.000
Hose cut off factor IN1.510
Hose cut off factor MM38.500
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.360
Product height mm34.544
Product length in3.030
Product length mm76.962
Product materialCarbon steel
Product width in1.180
Product width mm29.972
SeriesWinner 2-Piece
Thread sealantNo
Thread size 13/4-14 NPTF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
