Danfoss 15611-F08-06ZF

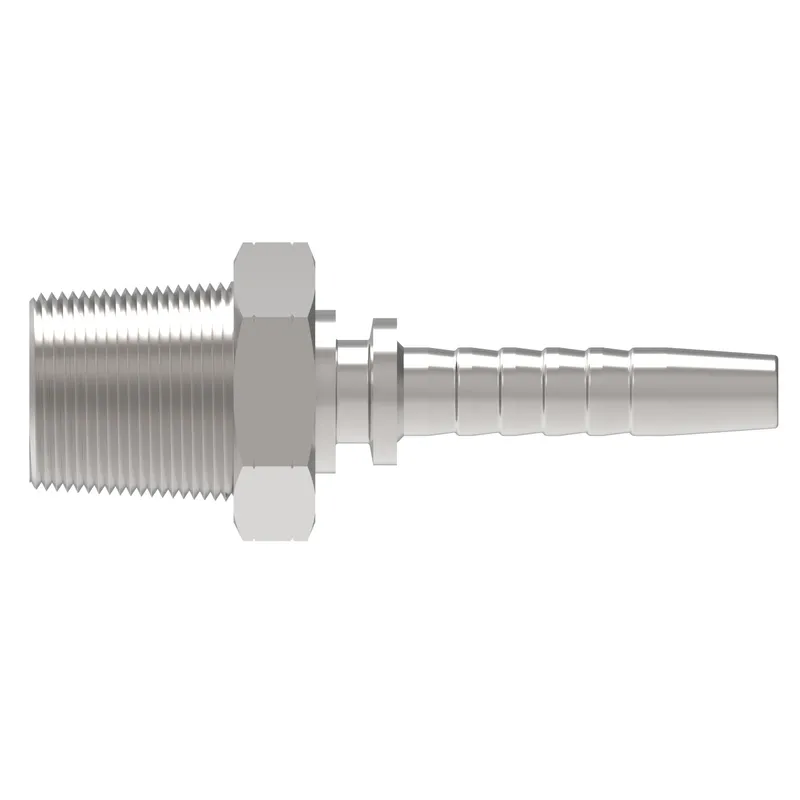

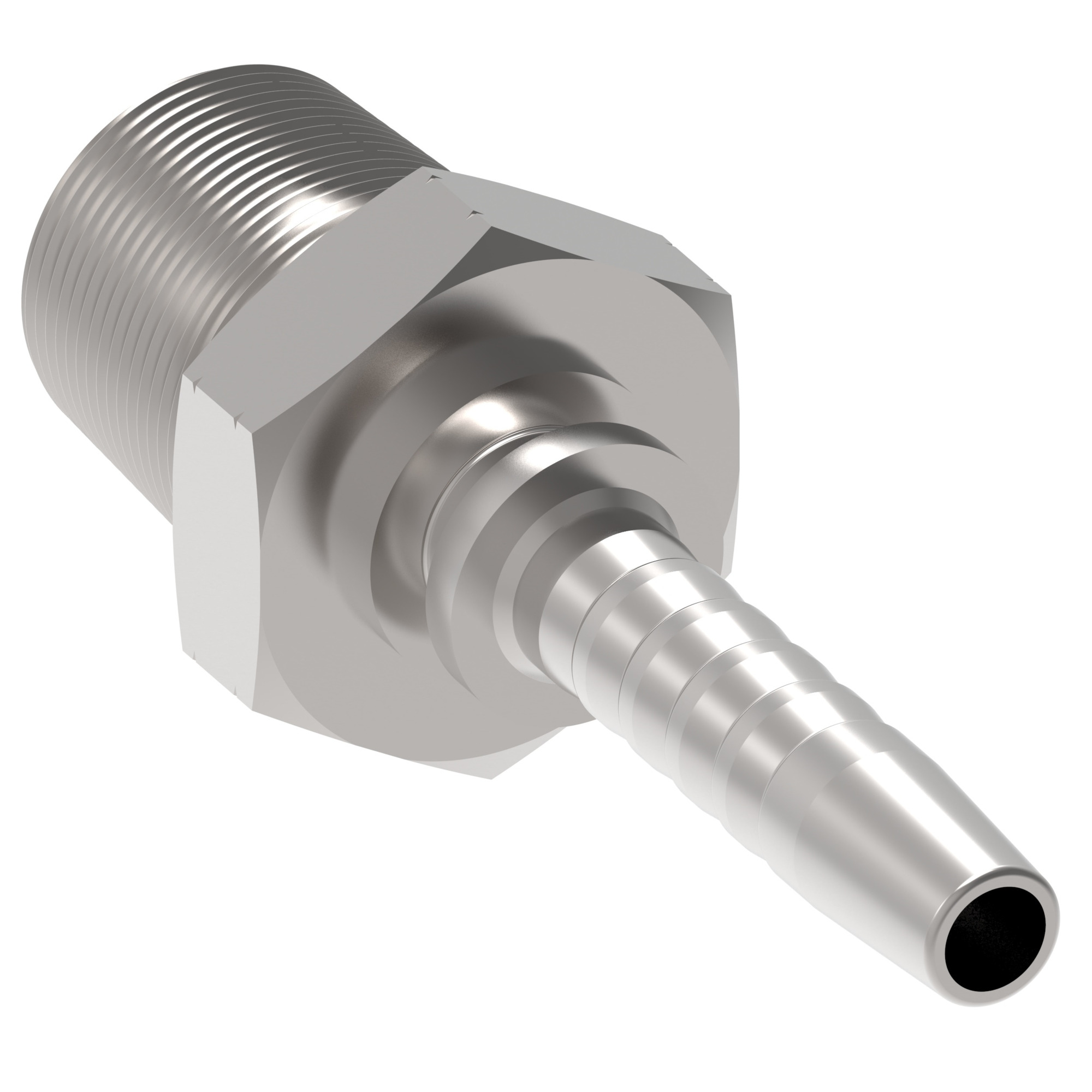

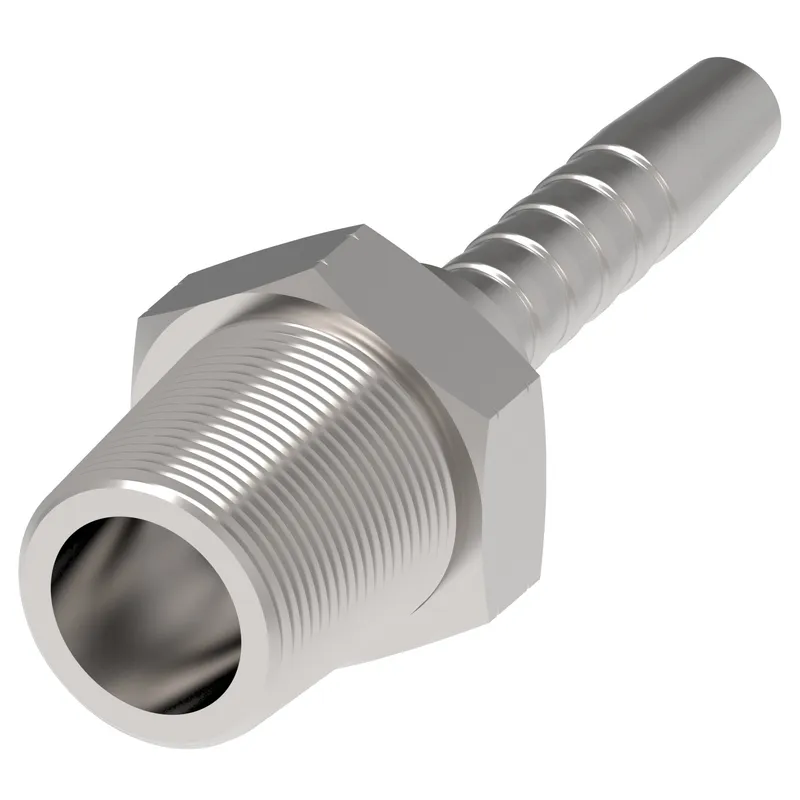

HOSE NIPPLE ASSY,2P/06,NPTF-M/08,CS,STR

MPN
15611-F08-06ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 15611-F08-06ZF?

Danfoss HOSE NIPPLE ASSY,2P/06,NPTF-M/08,CS,STR, manufacturer part number 15611-F08-06ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191618
A dimension IN2.530
A dimension MM64.300
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Compatible hoses EC110, EC115, EC118, EC210, EC215
Construction StyleCrimp
End size 1-8
End Type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM21.996
Hex size 2 MM22.000
Hose cut off factor IN1.350
Hose cut off factor MM34.300
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in1.000
Product height mm25.400
Product length in2.520
Product length mm64.008
Product materialCarbon steel
Product width in0.866
Product width mm21.996
SeriesWinner 2-Piece
Thread sealantNo
Thread size 11/2-14 NPTF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

15611-F08-06ZF: frequently asked questions

When can 15611-F08-06ZF be shipped?

15611-F08-06ZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 15611-F08-06ZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 15611-F08-06ZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15611-F08-06ZF, subject to availability and destination.
