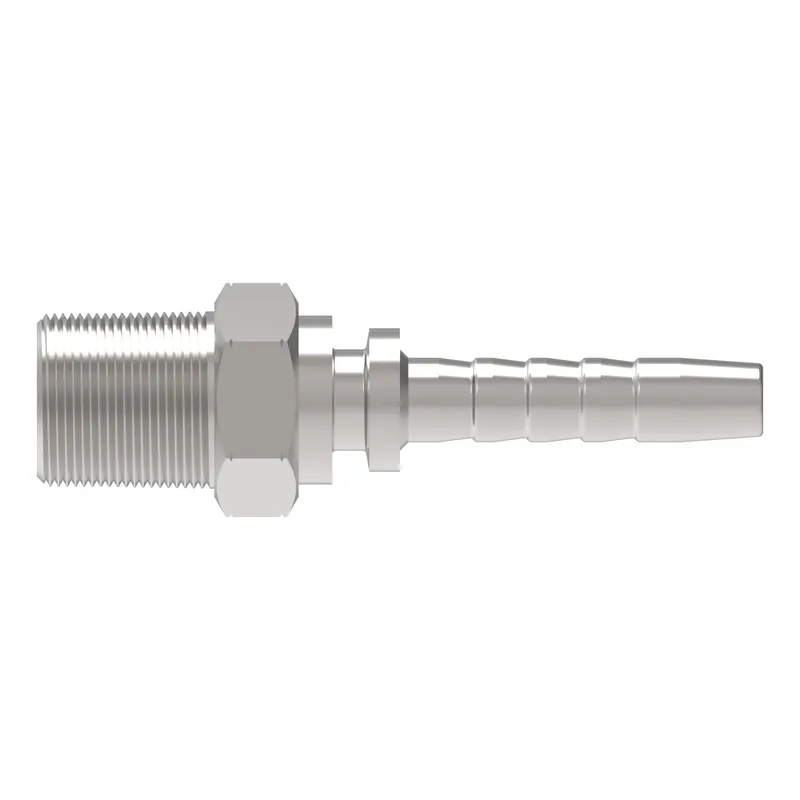

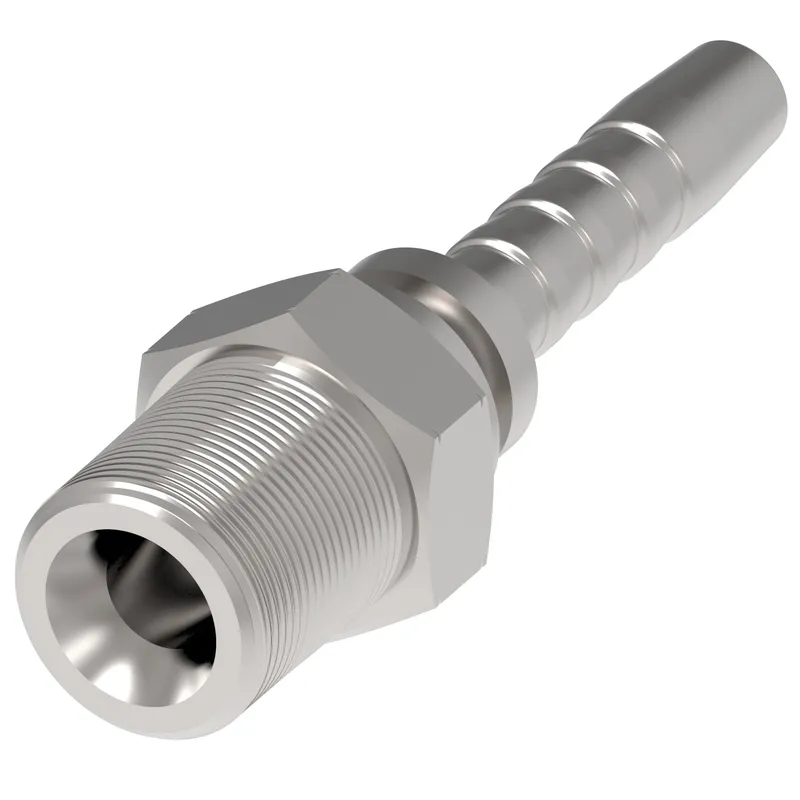

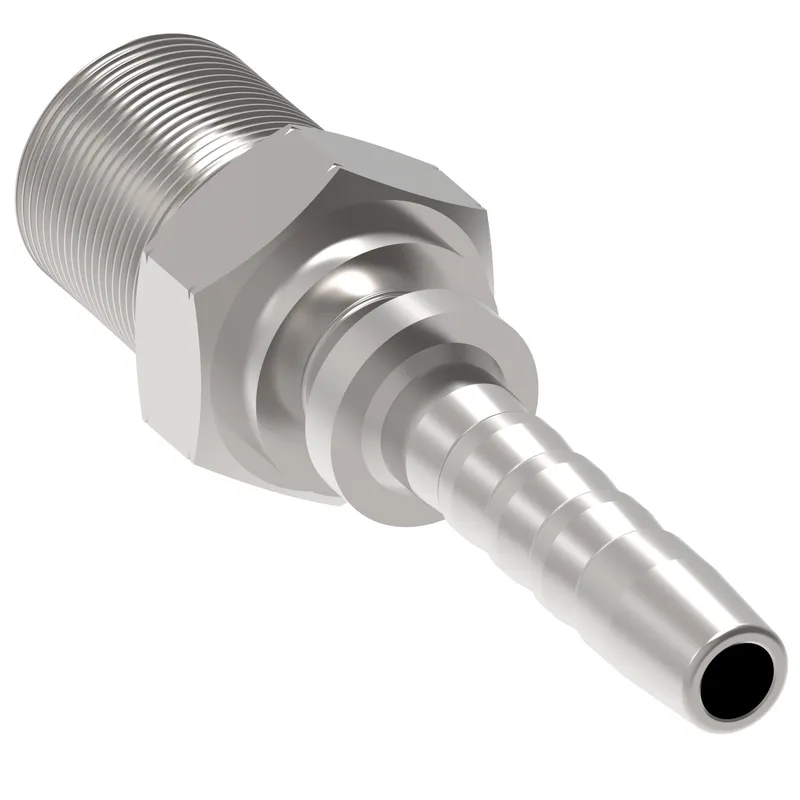

HOSE NIPPLE ASSY,2P/03,NPT-M/02,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 15611-02-03Z be shipped?
15611-02-03Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 15611-02-03Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 15611-02-03Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 15611-02-03Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/03,NPT-M/02,CS,STR, manufacturer part number 15611-02-03Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.690 |
| A dimension MM | 43.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.190 |
| Compatible hose ID MM | 4.800 |
| Construction Style | Crimp |
| End size 1 | -2 |
| End size 2 | -2 |
| End Type 1 | Male pipe (NPT) |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.470 |
| Hex size 1 MM | 11.938 |
| Hose cut off factor IN | 0.840 |
| Hose cut off factor MM | 21.500 |
| Hose size | -3 |
| Inside diameter IN | 0.118 |
| Inside diameter MM | 3.000 |
| Product height in | 0.540 |
| Product height mm | 13.716 |
| Product length in | 1.692 |
| Product length mm | 42.976 |
| Product material | Carbon steel |
| Product width in | 0.472 |
| Product width mm | 11.988 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | 1/8-27 NPTF |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestHOSE NIPPLE ASSY,2P/06,NPTF-M/08,CS,STR

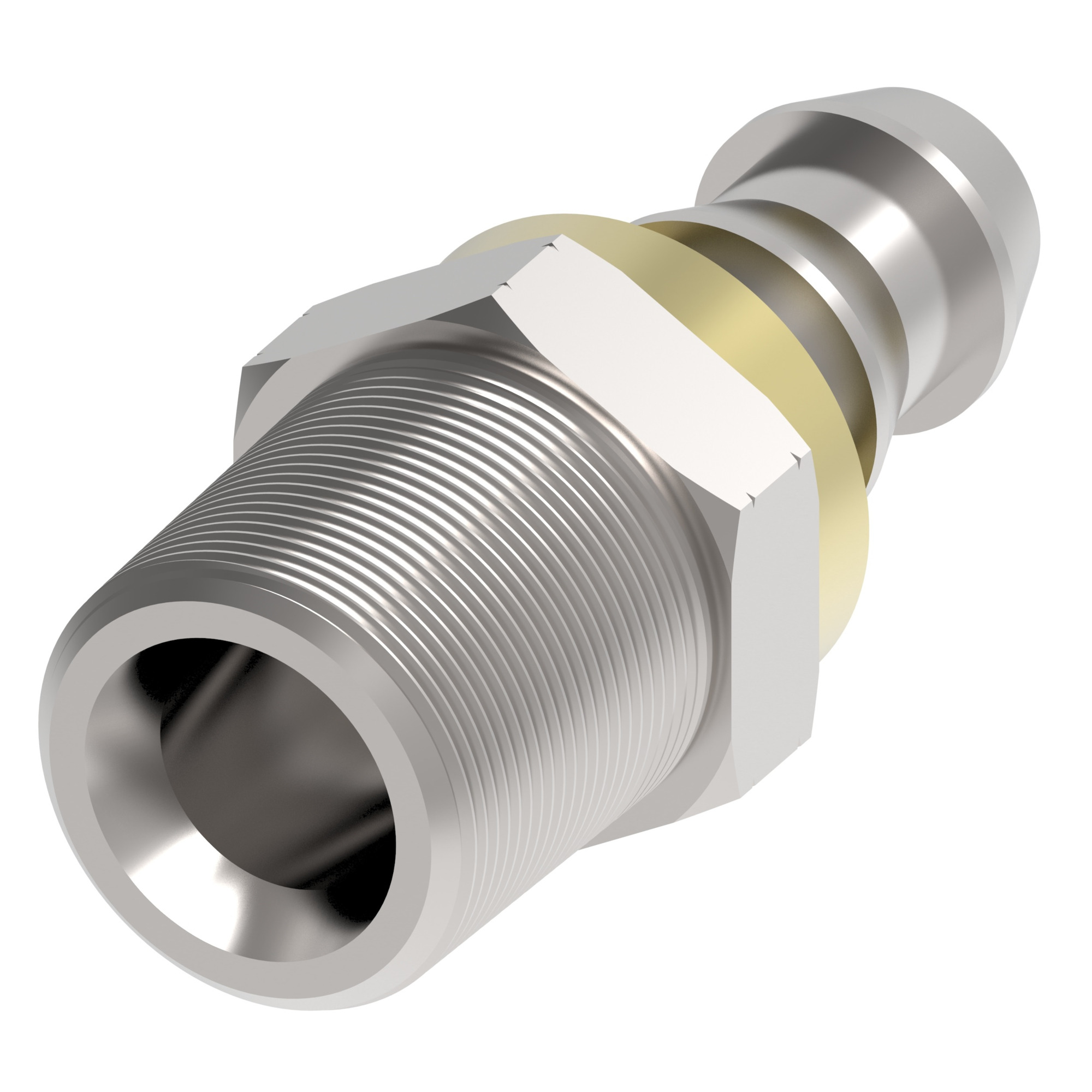

Available on requestHOSE NIPPLE ASSY,2P/08,NPTF-M/08,CS,STR
