Danfoss 1531-10-12000

HOSE-AER, 1531, -10, 100FT, CL, AIR BK

MPN: 1531-10-12000
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1531-10-12000?

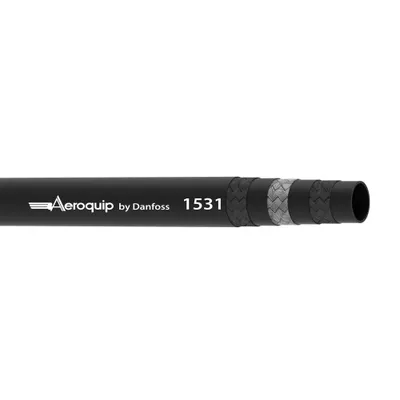

Danfoss HOSE-AER, 1531, -10, 100FT, CL, AIR BK, manufacturer part number 1531-10-12000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Premium
Application	Locomotive air brake lines
Bend radius min (inch)	5.500
Bend radius min (mm)	139.700
Brand	Aeroquip by Danfoss
Burst pressure (bar)	83
Burst pressure (psi)	1200
Color	Black
Compliances	ASTM D471
Conductivity	Conductive
Construction	1 Wire Braid
Cover material	Nitrile (NBR)
Inside diameter (inch)	0.50
Inside diameter (mm)	12.70
Lay line style	Ink jet
Length (in)	1200.00000
Length (mm)	30480.00000
Outside diameter (inch)	0.94
Outside diameter (mm)	23.80
Package form	Cut length
Product height in	0.500
Product height mm	12.700
Product width in	0.500
Product width mm	12.700 mm
Qualified hose fittings	NPT
Reinforcement material	Brass plated steel wire
Series	1531 Series
Size	-10
Tube material	Nitrile (NBR)
Working pressure max (bar)	21
Working pressure max (psi)	305
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-56
Working temperature min (F)	-65.0
