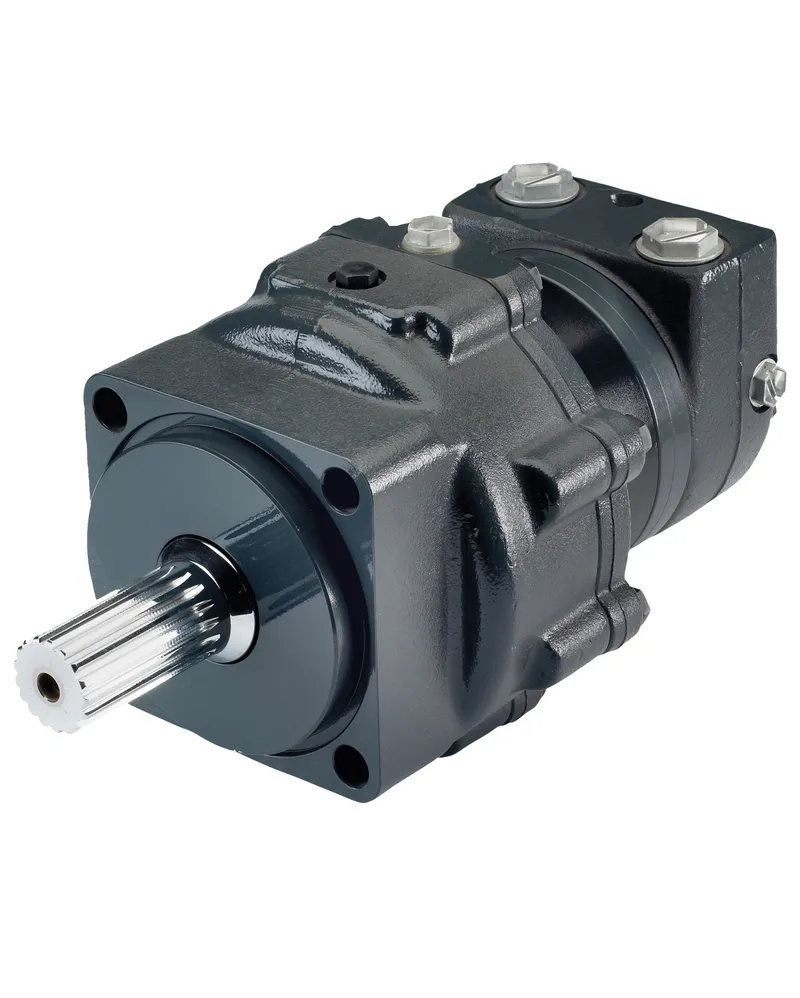

TMT 250 FL HYDRAULIC MOTOR, TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Orbitron motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 151Z3090 be shipped?
151Z3090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 151Z3090 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 151Z3090 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 151Z3090, subject to availability and destination.
Danfoss TMT 250 FL HYDRAULIC MOTOR, TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151Z3090. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brake Release Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring Port |
| Check valve function | No |
| Design code | 00 |
| Drain Port Dimension | 9/16 - 18 UNF-2B O-Ring port |
| Dust seal | Integrated in shaft seal |
| Front bearing type | Tapered roller bearing |
| Geometric displacement [cm3/r [in3/r]] | 251.8 [15.37] |
| Hydraulic valve function | None |
| Main port dimension | 1 1/16 - 12 UN-2B SAE O-Ring port, - |
| Main port style | Sideport - staggered |
| Main port thread type | UN / UNF |
| Model Code | TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor function | Brake - Low release pressure |
| Motor Series | TMT Series |
| Motor size | 250 |
| Motor type | Motor - Brake |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 127.0 x 12.5, 161.9, 5/8 - 18 UNF [5.00 x 0.49, 6.37, 5/8 - 18 UNF] |
| Mounting flange type | 4 Bolt - C |
| Name Tag | Danfoss name tag |
| Orbital gearwheel set | Standard |
| Orbital gearwheel set type | Geroler |
| Packaging | Single pack |
| Paint information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear bearing type | Tapered roller bearing |
| Seal Kit | 151Z2059 |
| Sensor | None |
| Shaft dimension | Dia. 1 1/2 inch, 17T, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Shaft Seal | NBR - Standard |
| Shaft type | Splined |
| Special Features Assembly | Standard |
| Valve system | Disc valve with valve drive |
