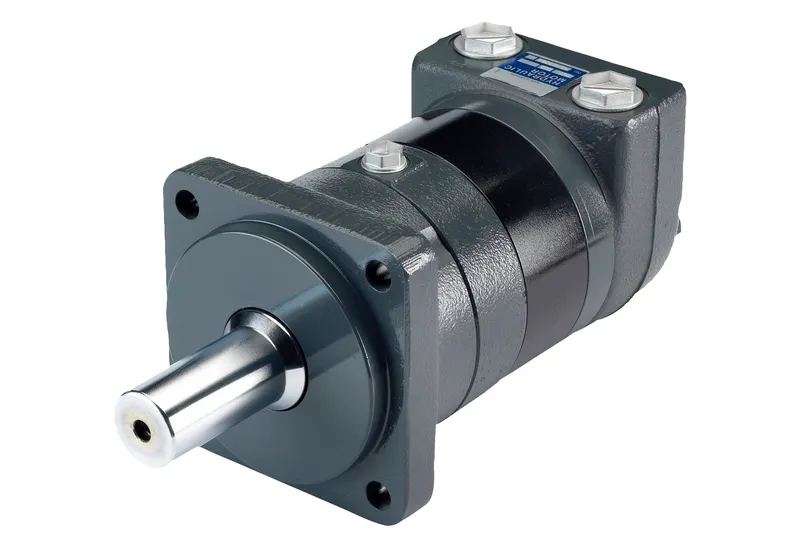

TMT 400 HYDRAULIC MOTOR, TMT-0400-A-NN-G18-AV-1D-A31-A-B-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Orbitron motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 151Z3018 be shipped?
151Z3018 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 151Z3018 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 151Z3018 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 151Z3018, subject to availability and destination.
Danfoss TMT 400 HYDRAULIC MOTOR, TMT-0400-A-NN-G18-AV-1D-A31-A-B-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151Z3018. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brake Release Port Dimension | n/a |
| Check valve function | No |
| Design code | 00 |
| Drain Port Dimension | G 1/4 |
| Dust seal | Integrated in shaft seal |
| Front bearing type | Tapered roller bearing |
| Geometric displacement [cm3/r [in3/r]] | 410.9 [25.07] |
| Hydraulic valve function | None |
| Main port dimension | G 3/4 |
| Main port style | Sideport - staggered |
| Main port thread type | BSP |
| Model Code | TMT-0400-A-NN-G18-AV-1D-A31-A-B-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor function | Standard |
| Motor Series | TMT Series |
| Motor size | 400 |
| Motor type | Standard |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 125.0 x 9.0, 160.0, 14.0 [4.92 x 0.35, 6.30, 0.55] |
| Mounting flange type | 4 Bolt - Square |
| Name Tag | Danfoss name tag |
| Orbital gearwheel set | Standard |
| Orbital gearwheel set type | Geroler |
| Packaging | Single pack |
| Paint information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear bearing type | Tapered roller bearing |
| Seal Kit | 151B0176 |
| Sensor | None |
| Shaft dimension | Dia. 40 mm, M12 x 1.75-6H thread in shaft end |
| Shaft Key | Rectangular key, A12 x 8 x 70 mm, DIN 6885 |
| Shaft Seal | NBR - Standard |
| Shaft type | Straight |
| Special Features Assembly | Standard |
| Valve system | Disc valve with valve drive |
