Danfoss 151F6130

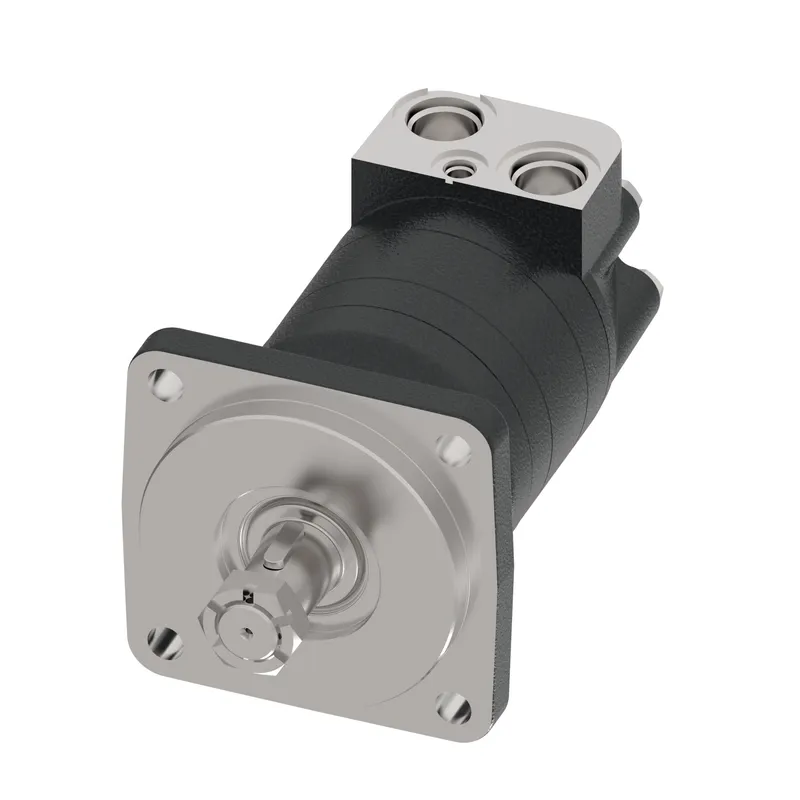

MOTOR-ORBITAL,TMK SERIES 160 [9.7], TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN

MPN: 151F6130
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151F6130?

Danfoss MOTOR-ORBITAL,TMK SERIES 160 [9.7], TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN, manufacturer part number 151F6130. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Volume	18093.713 Cubic centimeter
Brake Release Port Dimension	n/a
Check valve function	Yes
Design code	00
Drain Port Dimension	7/16-20 UNF-2B O-Ring port
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	158.0 [9.64]
Hydraulic valve function	None
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port,
Main port style	Sideport - staggered
Main port thread type	UN / UNF
Model Code	TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN
Motor function	Standard
Motor Series	TMK Series
Motor size	160
Motor type	Standard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.4, 161.9, 14.4 [5.00 x 0.49, 6.37, 0.57]
Mounting flange type	4 Bolt - C
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	Painted, Black, Medium gloss
Painted	Yes
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151F0141
Sensor	None
Shaft dimension	Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	Rectangular key, 5/16 x 5/16 x 1 1/4 inch (B.S. 46)
Shaft Seal	NBR - Standard
Shaft type	Straight
Size/Dimensions	L23.8XW44.2XH17.2 CM
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
