Danfoss 151F6050

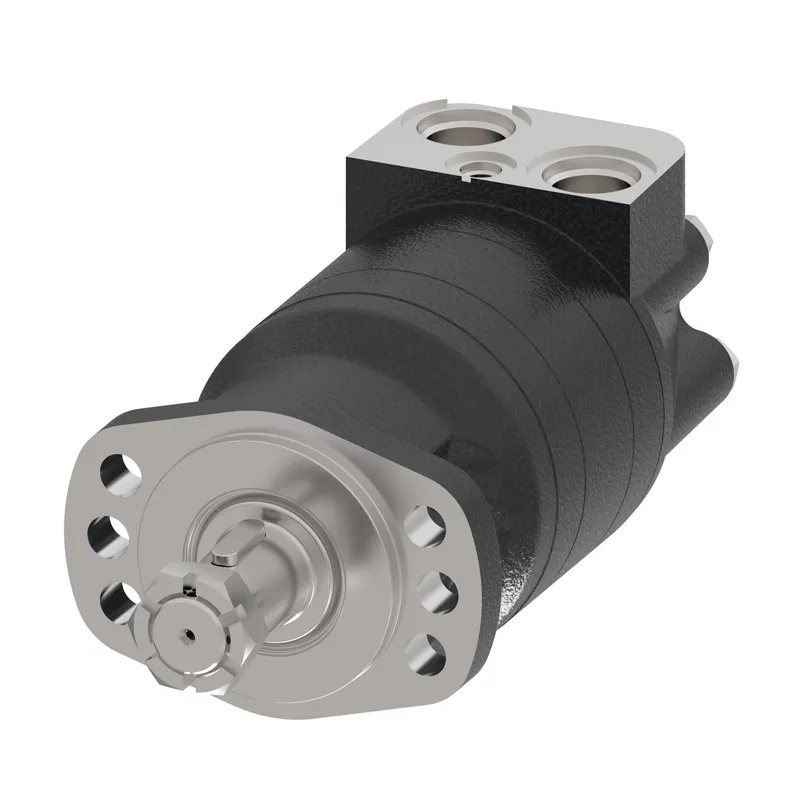

TMK 160 HYDRAULIC MOTOR

MPN: 151F6050
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151F6050?

Danfoss TMK 160 HYDRAULIC MOTOR, manufacturer part number 151F6050. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	TMK-0160-A-NN-A54-AV-2E-E21-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN
Motor Series	TMK Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	160
Geometric displacement [cm3/r [in3/r]]	158.0 [9.64]
Motor type	Standard
Motor function	Standard
Mounting flange type	6 Bolt - Magneto
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.5 x 6.0, 106.4, 13.5 [3.25 x 0.24, 4.19, 0.53]
Shaft type	Splined
Shaft dimension	Dia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port,
Drain Port Dimension	7/16-20 UNF-2B O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black, Medium gloss
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	151F0141
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	00
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
