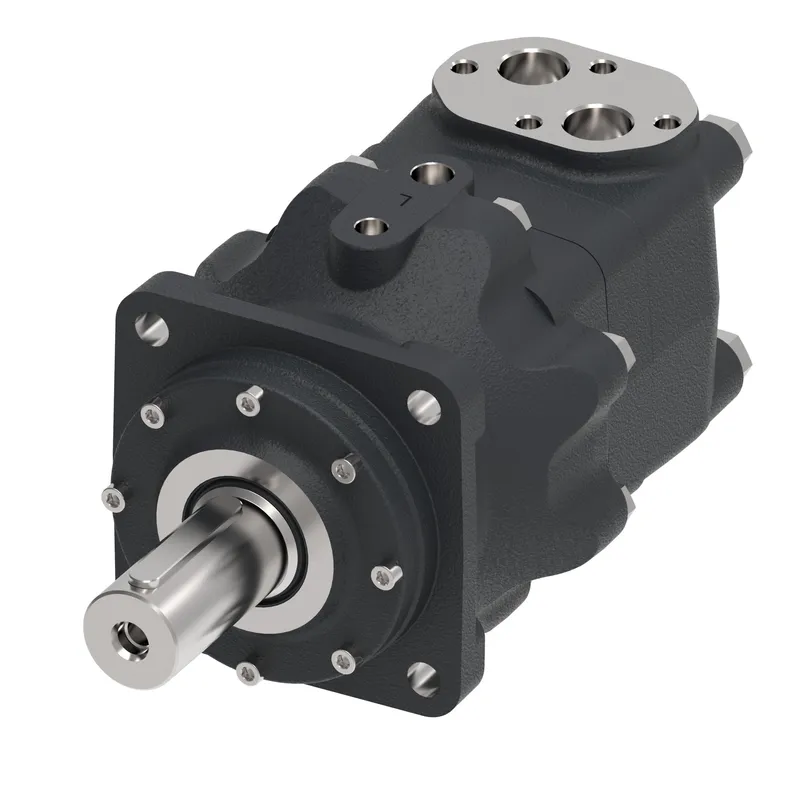

Danfoss 151B4033

OMT 500 FH HYDRAULIC MOTOR, OMT-0500-E-BB-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

MPN: 151B4033
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B4033?

Danfoss OMT 500 FH HYDRAULIC MOTOR, OMT-0500-E-BB-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B4033. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	G 1/4
Check valve function	No
Design code	2
Drain Port Dimension	G 3/8
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	523.6 [31.95]
Hydraulic valve function	None
Main port dimension	G 3/4, 4 x M10 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMT-0500-E-BB-G22-AD-1D-D21-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Brake - High release pressure
Motor Series	OMT Series
Motor size	500
Motor type	Motor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	125.0 x 12.0, 160.0, 14.0 [4.92 x 0.47, 6.30, 0.55]
Mounting flange type	4 Bolt - Square
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0154
Sensor	None
Shaft dimension	Dia. 1 1/2 inch, 17T, M12 x 1.75-6H thread in shaft end
Shaft Key	n/a
Shaft Seal	NBR - Standard
Shaft type	Splined
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
