Danfoss 151B4016

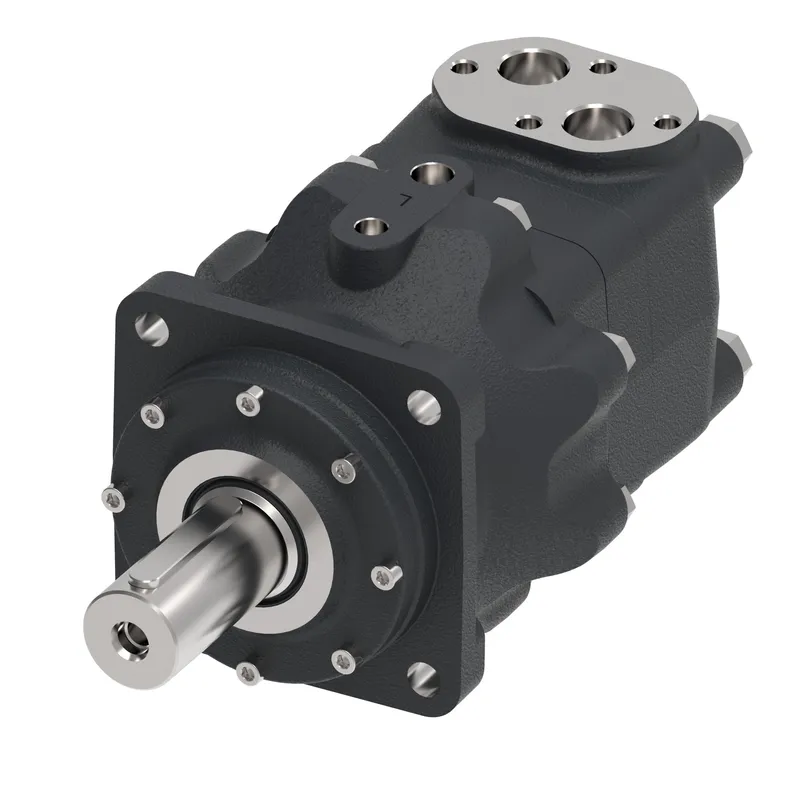

OMT 250 FL HYDRAULIC MOTOR, OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

MPN: 151B4016
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B4016?

Danfoss OMT 250 FL HYDRAULIC MOTOR, OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B4016. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	G 1/4
Check valve function	No
Design code	2
Drain Port Dimension	G 3/8
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	251.8 [15.36]
Hydraulic valve function	None
Main port dimension	G 3/4, 4 x M10 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Brake - Low release pressure
Motor Series	OMT Series
Motor size	250
Motor type	Motor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	125.0 x 12.0, 160.0, 14.0 [4.92 x 0.47, 6.30, 0.55]
Mounting flange type	4 Bolt - Square
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0153
Sensor	None
Shaft dimension	Dia. 45 mm, 1:10, 2 x M30 thread in shaft end
Shaft Key	Rectangular key, B12 x 8 x 28 mm, DIN 6885
Shaft Seal	NBR - Standard
Shaft type	TAPERED
Special Features Assembly	Standard
Special features hardware	Standard
Valve system	Disc valve with valve drive
