Danfoss 151B4003

MOTOR-ORBITAL,OMT SERIES 315 [19.2], OMT-0315-E-BA-G22-AD-1D-A31-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

MPN
151B4003
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

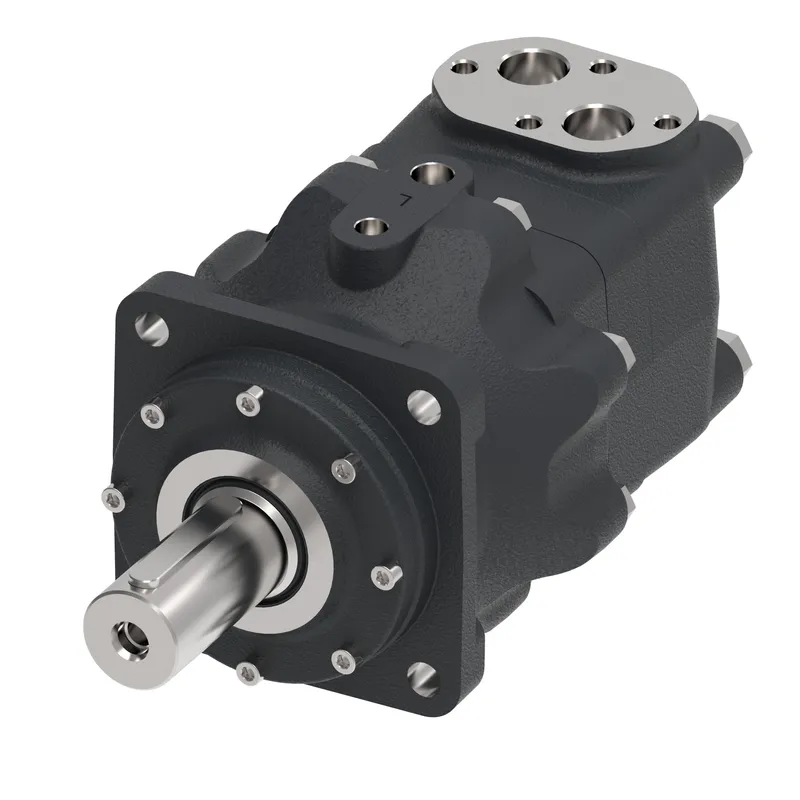

What is the Danfoss 151B4003?

Danfoss MOTOR-ORBITAL,OMT SERIES 315 [19.2], OMT-0315-E-BA-G22-AD-1D-A31-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B4003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Brake Release Port DimensionG 1/4
Check valve functionNo
Design code2
Drain Port DimensionG 3/8
Dust sealStandard
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]326.3 [19.91]
Hydraulic valve functionNone
Main port dimensionG 3/4, 4 x M10 block mounting threads
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeOMT-0315-E-BA-G22-AD-1D-A31-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN
Motor functionBrake - Low release pressure
Motor SeriesOMT Series
Motor size315
Motor typeMotor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]125.0 x 12.0, 160.0, 14.0 [4.92 x 0.47, 6.30, 0.55]
Mounting flange type4 Bolt - Square
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Proposition 65Cancer and Reproductive Harm
Rear bearing typeTapered roller bearing
Seal Kit151B0153
SensorNone
Shaft dimensionDia. 40 mm, M12 x 1.75-6H thread in shaft end
Shaft KeyRectangular key, A12 x 8 x 70 mm, DIN 6885
Shaft SealNBR - Standard
Shaft typeStraight
Special Features AssemblyStandard
Valve systemDisc valve with valve drive
