Danfoss 151B3241

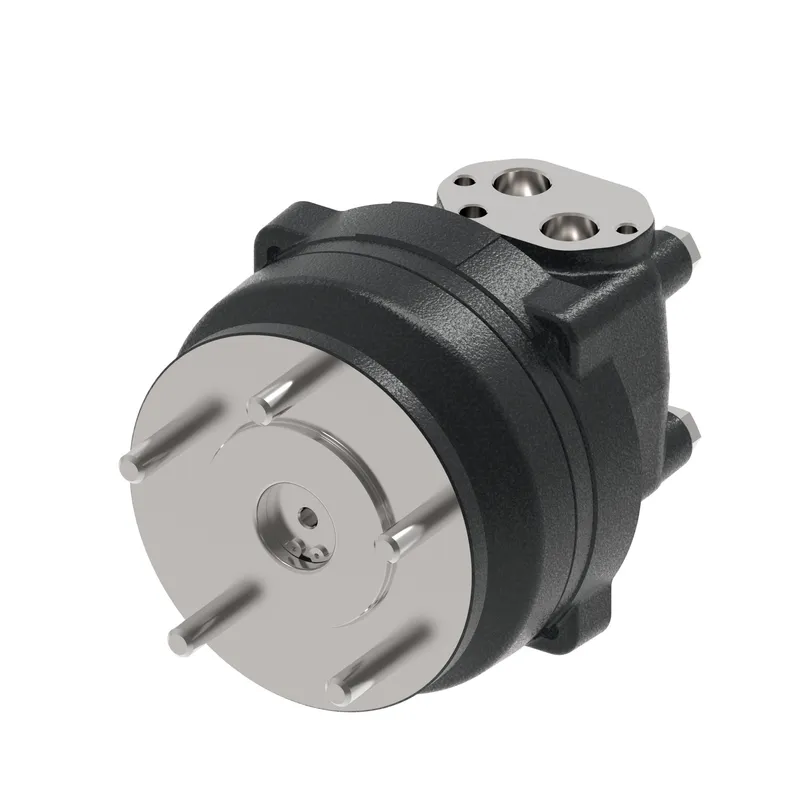

OMT 500 FX HYDRAULIC MOTOR

MPN: 151B3241
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B3241?

Danfoss OMT 500 FX HYDRAULIC MOTOR, manufacturer part number 151B3241. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	OMT-0500-F-BA-W50-AV-2E-K13-C-A-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series	OMT Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	500
Geometric displacement [cm3/r [in3/r]]	523.6 [31.95]
Motor type	Motor - Brake
Motor function	Brake - Low release pressure
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	172.0 x 7.0, 200.0, M12 [6.77 x 0.32, 7.87, M12]
Shaft type	Wheel hub
Shaft dimension	Thread Hole Flange: 10 x M12 - BCD 100 mm [3.9 inch]
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port, -
Drain Port Dimension	9/16 - 18 UNF-2B O-Ring port
Brake Release Port Dimension	7/16 - 20 UNF-2B SAE O-Ring Port
Painted	No
Paint information	n/a
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Low pressure
Seal Kit	No data available
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
