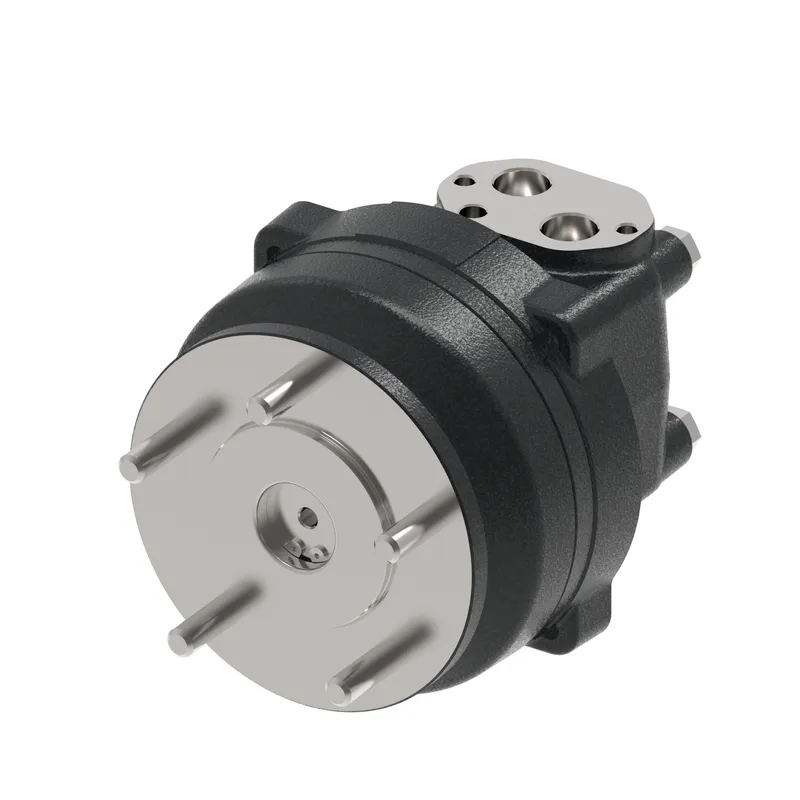

MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN

Name: MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN
Brand: Danfoss (Drives)
SKU: 151B3205

MPN: 151B3205 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Orbitron motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 151B3205 be shipped?

151B3205 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 151B3205 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 151B3205 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 151B3205, subject to availability and destination.

Danfoss MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B3205. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	G 1/4
Check valve function	No
Design code	2
Drain Port Dimension	G 1/4
Dust seal	n/a
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	523.6 [31.95]
Hydraulic valve function	None
Main port dimension	G 3/4, 2 x M10 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Brake - Low release pressure
Motor Series	OMT Series
Motor size	500
Motor type	Motor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	172.0 x 7.0, 200.0, M12 [6.77 x 0.32, 7.87, M12]
Mounting flange type	4 Bolt - Wheel
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0152
Sensor	None
Shaft dimension	Thread Hole Flange: 10 x M12 - BCD 100 mm [3.9 inch]
Shaft Key	n/a
Shaft Seal	NBR - Low pressure
Shaft type	Wheel hub
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
