Danfoss 151B3186

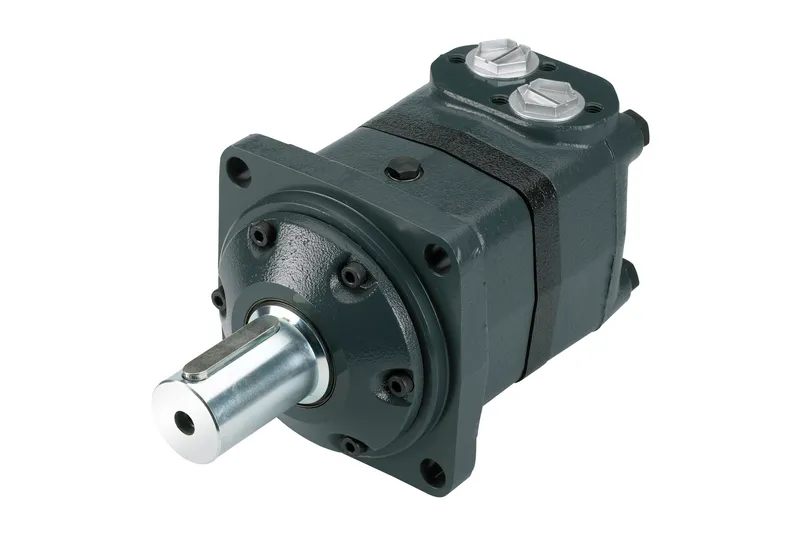

MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

MPN: 151B3186
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B3186?

Danfoss MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B3186. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	n/a
Check valve function	No
Design code	2
Drain Port Dimension	G 1/4
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	499.6 [30.49]
Hydraulic valve function	None
Main port dimension	G 1, 4 x M12 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Heavy-Duty version, Reinforced parts
Motor Series	OMV Series
Motor size	500
Motor type	Standard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71]
Mounting flange type	4 Bolt - Square
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0162
Sensor	None
Shaft dimension	Dia. 2 1/8 inch, 16T, M12 x 1.75-6H thread in shaft end
Shaft Key	n/a
Shaft Seal	NBR - Standard
Shaft type	Splined
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
