Home / Danfoss (Drives) / Danfoss orbital motor quick selector / Danfoss 151B3161

Danfoss 151B3161

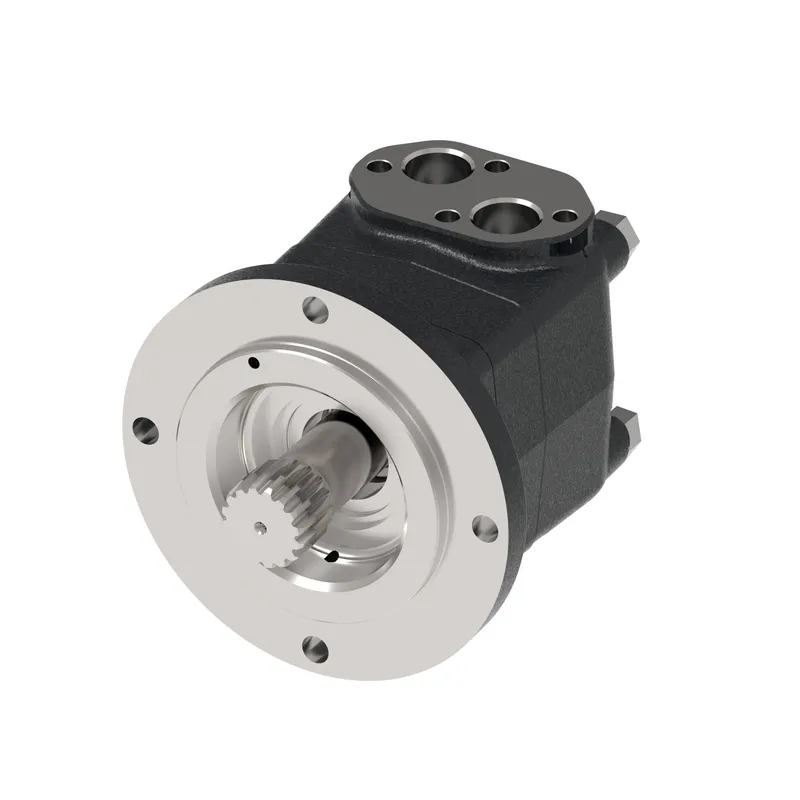

OMVS 400 HD HYDRAULIC MOTOR

MPN: 151B3161
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B3161?

Danfoss OMVS 400 HD HYDRAULIC MOTOR, manufacturer part number 151B3161. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	OMV-0400-C-EB-S16-AE-1E-NNN-N-N-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series	OMV Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	400
Geometric displacement [cm3/r [in3/r]]	400.9 [24.46]
Motor type	Short
Motor function	Heavy-Duty version, Reinforced parts
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	140.0 x 8.0, 180.0, 14.0 [5.51 x 0.32, 7.09, 0.55]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1, 4 x M12 block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	151B0162
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm

151B3161: frequently asked questions

When can 151B3161 be shipped?

151B3161 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 151B3161 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 151B3161 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 151B3161, subject to availability and destination.
