Danfoss 151B0309

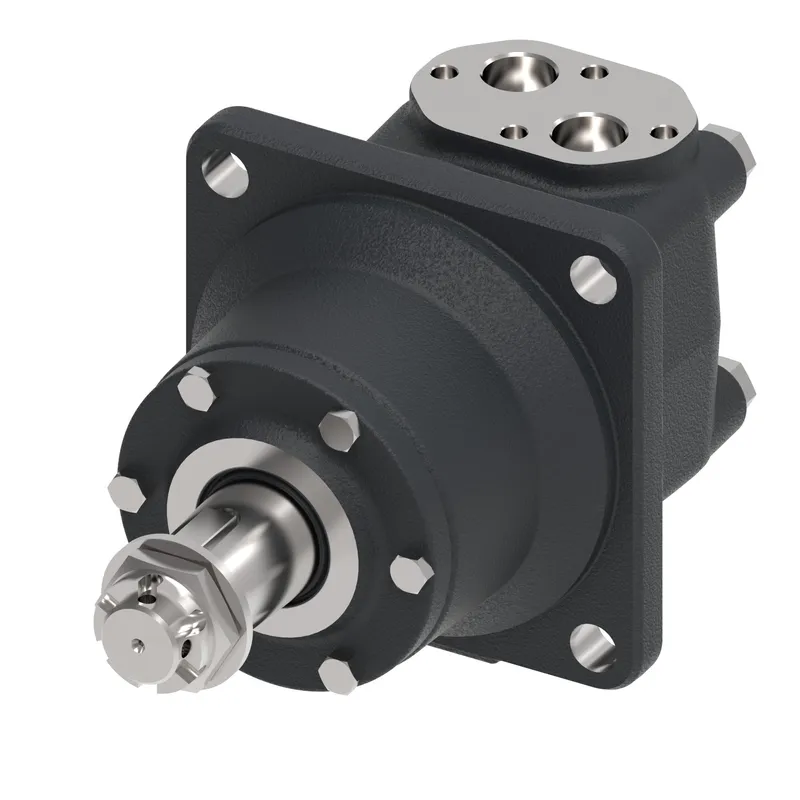

OMTW 315 HD HYDRAULIC MOTOR

MPN: 151B0309
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B0309?

Danfoss OMTW 315 HD HYDRAULIC MOTOR, manufacturer part number 151B0309. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	OMT-0315-B-EB-W48-AD-1D-F18-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series	OMT Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	315
Geometric displacement [cm3/r [in3/r]]	326.3 [19.91]
Motor type	Wheel
Motor function	Heavy-Duty version, Reinforced parts
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	160.0 x 7.0, 200.0, 18.0 [6.30 x 0.32, 7.87, 0.71] Rear: 172.0 x 3.5, 200.0, 18.0 [6.77 x 0.14, 7.87, 0.71]
Shaft type	TAPERED
Shaft dimension	Dia. 45 mm, 1:10, 2 x M30 thread in shaft end
Shaft Key	Rectangular key, B12 x 8 x 28 mm, DIN 6885
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 3/4, 4 x M10 block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	151B0161
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
