Danfoss 14

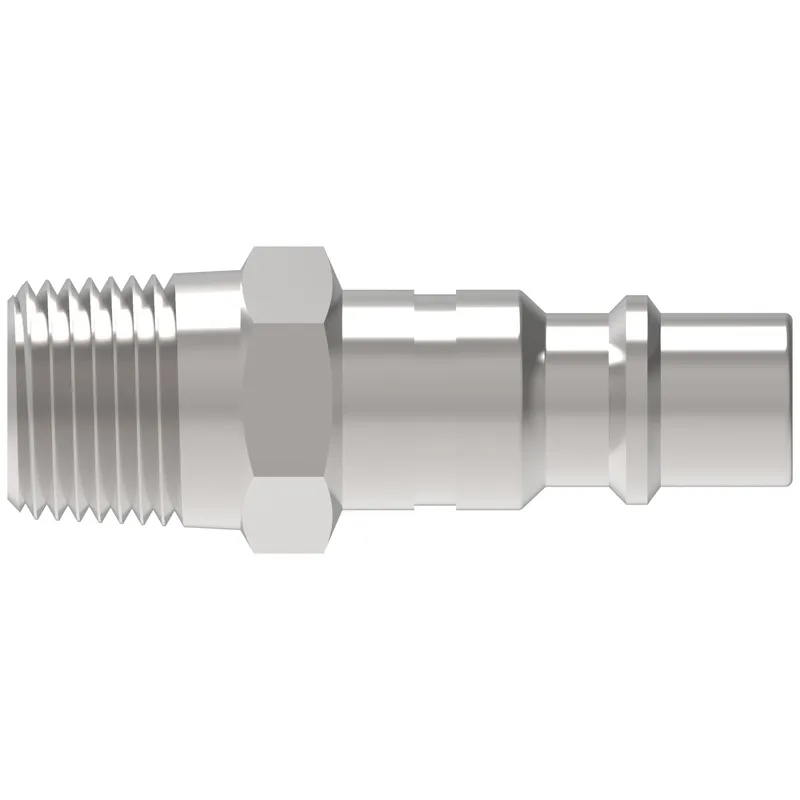

COUPLING,1000,M,1/4,CS,-6MNPTF

MPN: 14
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14?

Danfoss COUPLING,1000,M,1/4,CS,-6MNPTF, manufacturer part number 14. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789348166
Angle shape	Straight
Body size	1/4
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
End size 1	-6
End size 2	-6
End type 1	Male pipe (NPTF)
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	179.00
Flow rate LPM	677.59
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Product height in	0.790
Product height mm	20.066
Product length in	1.750
Product length mm	44.450
Product material	Carbon steel
Product width in	0.790
Product width mm	20.066 mm
Seal material	Nitrile (NBR)
Thread size 1	3/8-18 NPTF
Valve type	1 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
