Danfoss 1369X8

116-40008-05 ELBOW ASSY

MPN: 1369X8
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1369X8?

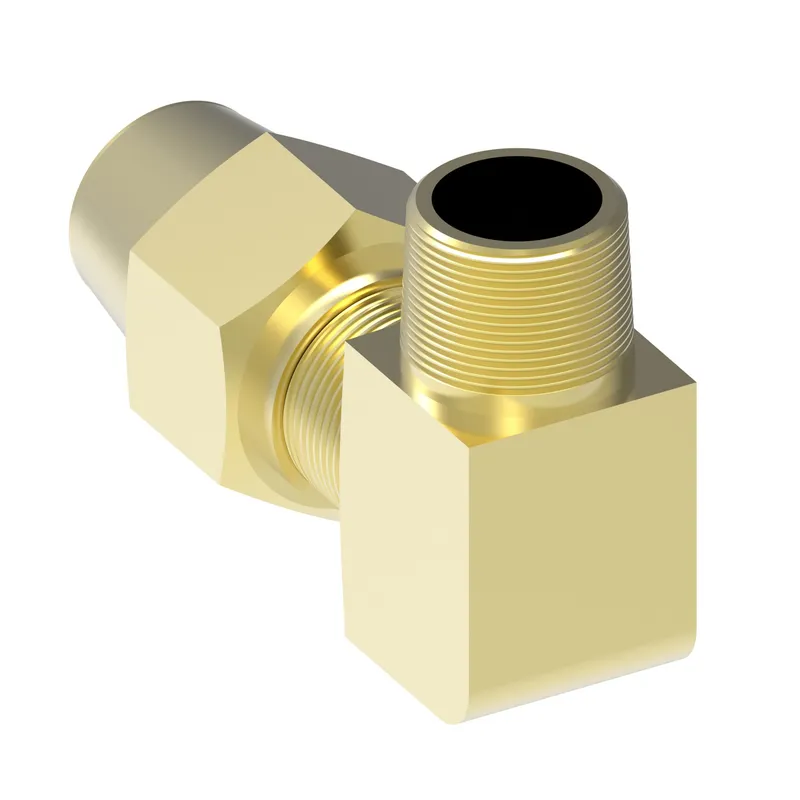

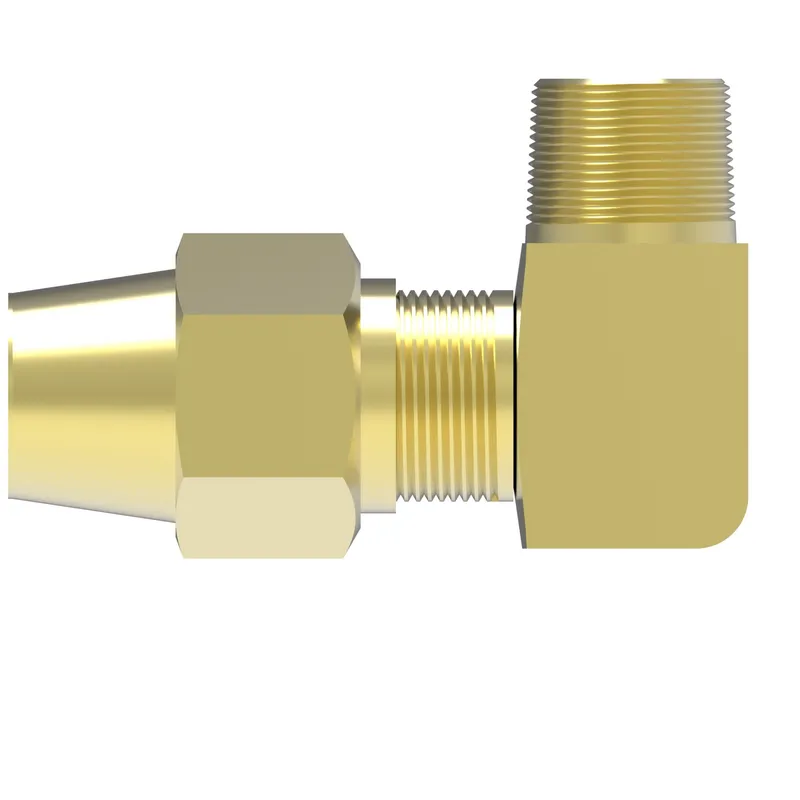

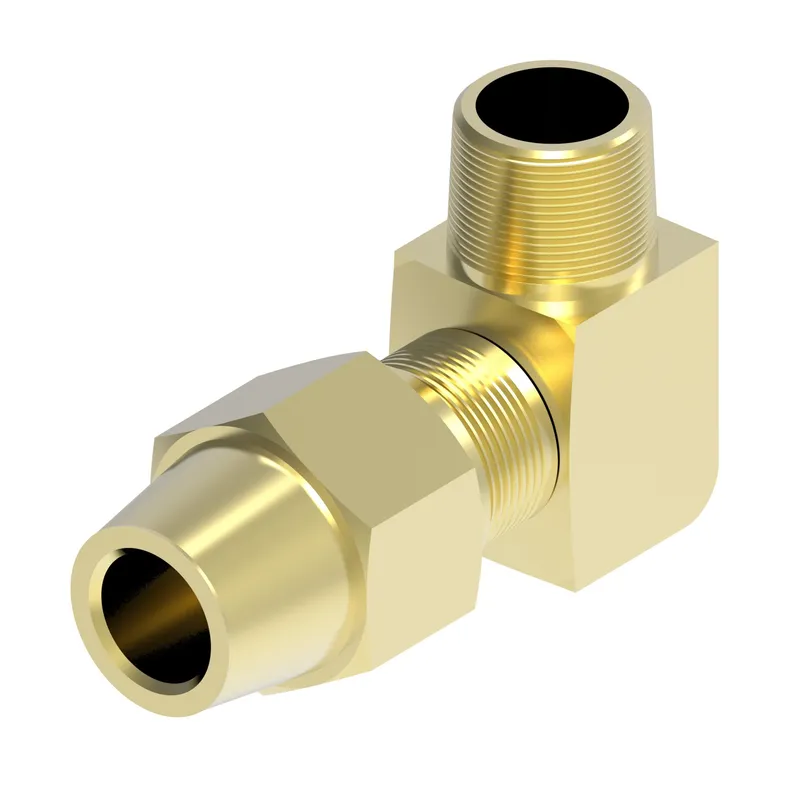

Danfoss 116-40008-05 ELBOW ASSY, manufacturer part number 1369X8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975730256
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.010
Drop dimension MM	25.70
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.720
Hex size 1 MM	18.300
Hex size 2 IN	0.810
Hex size 2 MM	20.600
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.410
Tube outside diameter 1 MM	10.4
Tube outside diameter 2 IN	0.510
Tube outside diameter 2 MM	13.0
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
