Danfoss 1368X4Z

116-20004-48 CONNECTOR A SM

MPN: 1368X4Z
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1368X4Z?

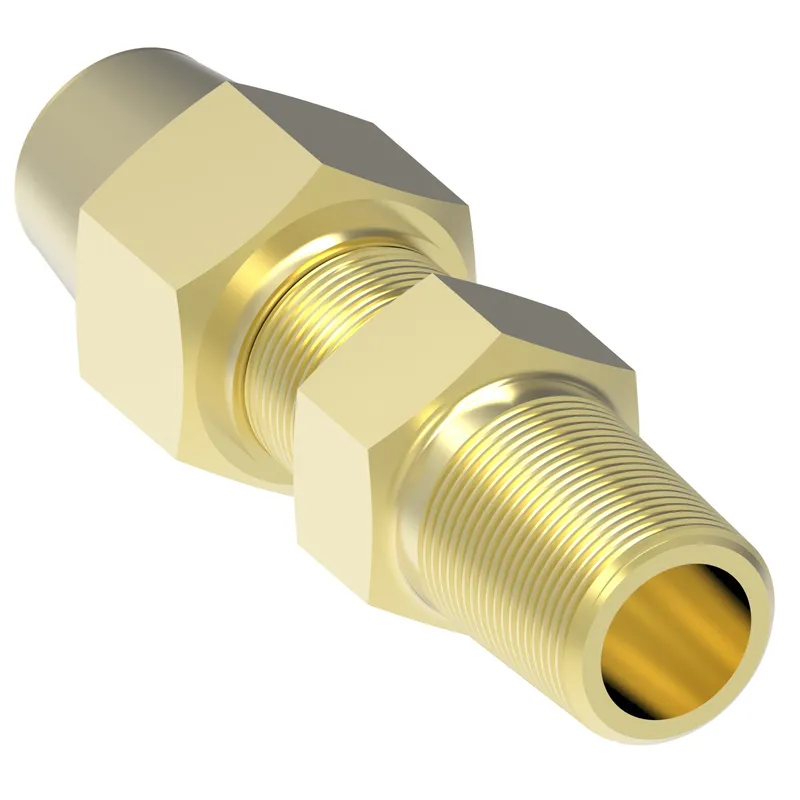

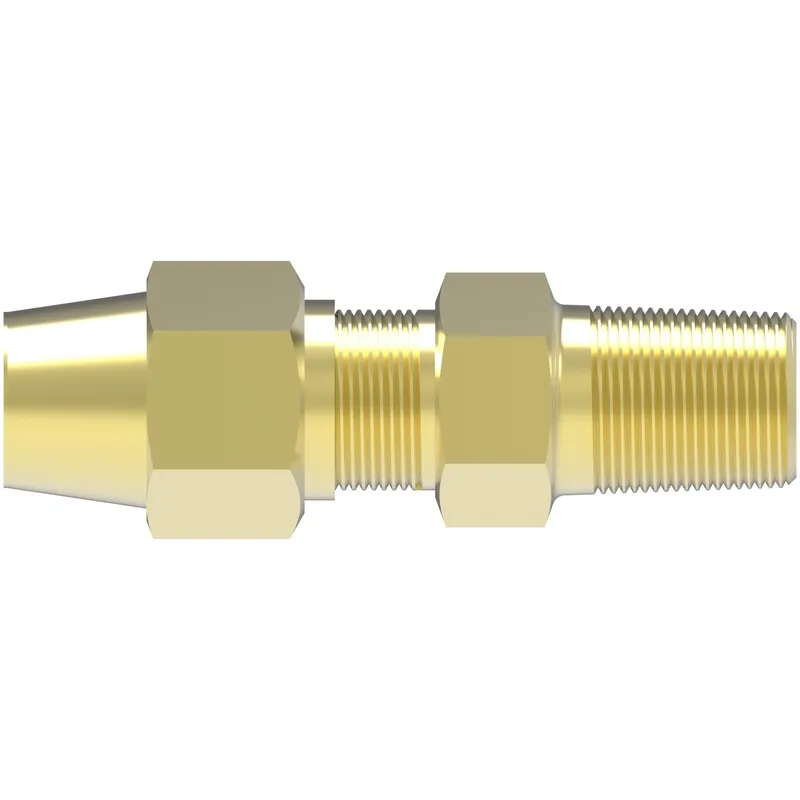

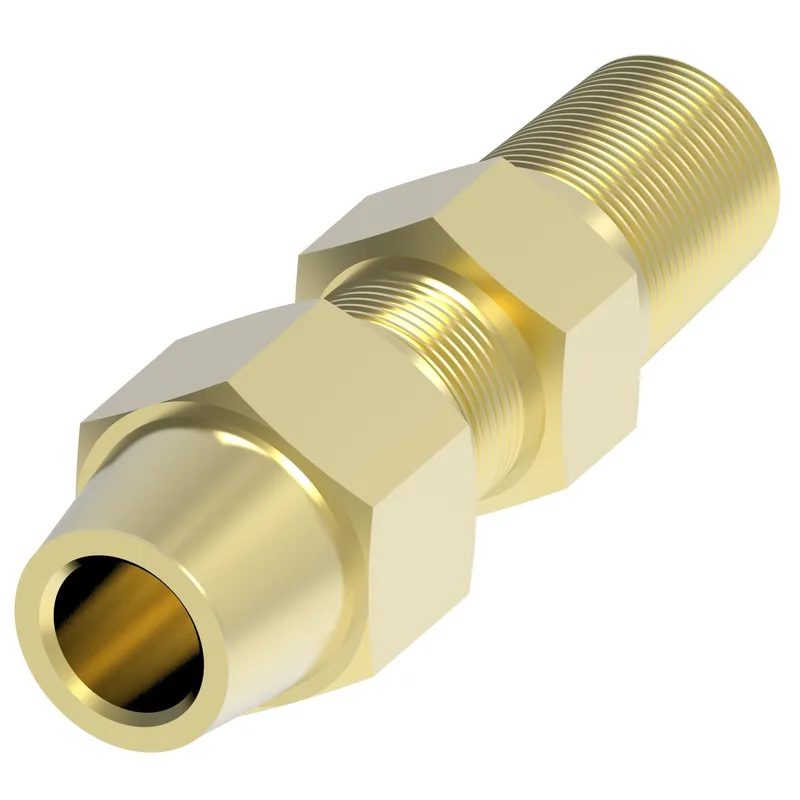

Danfoss 116-20004-48 CONNECTOR A SM, manufacturer part number 1368X4Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975704097
Brand	Danfoss
End Type 1	Male pipe (NPTF)
Finish plating	Nickel plating
Hex size 1 IN	0.438
Hex size 1 MM	11.100
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.190
Tube outside diameter 1 MM	4.8
Tube outside diameter 2 IN	0.256
Tube outside diameter 2 MM	6.5
Working pressure bar	10.0
Working pressure psi	150
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65

1368X4Z: frequently asked questions

When can 1368X4Z be shipped?

1368X4Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1368X4Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1368X4Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1368X4Z, subject to availability and destination.
