What is the Danfoss 131025?

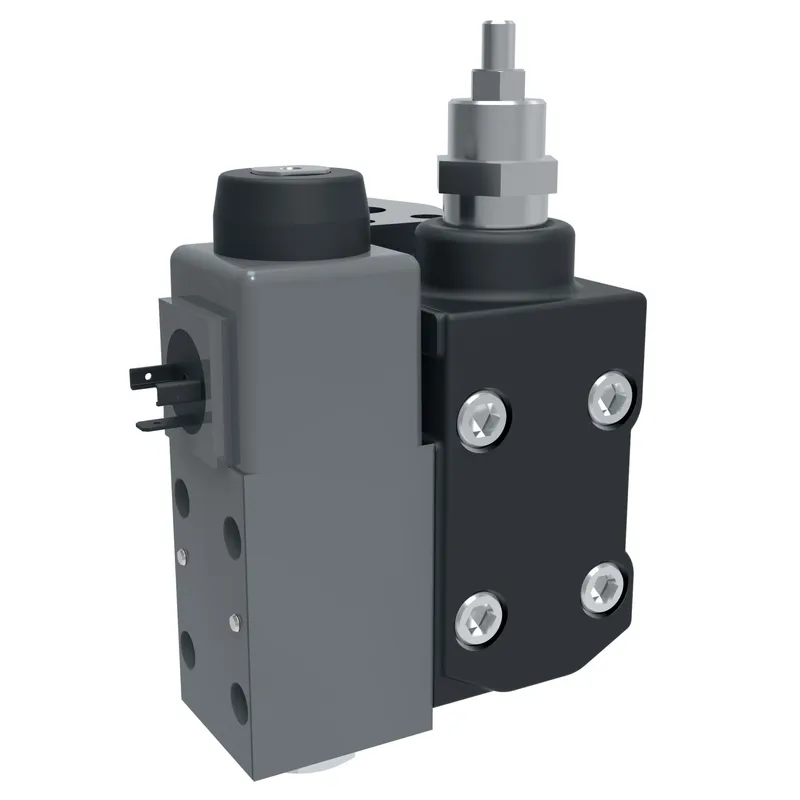

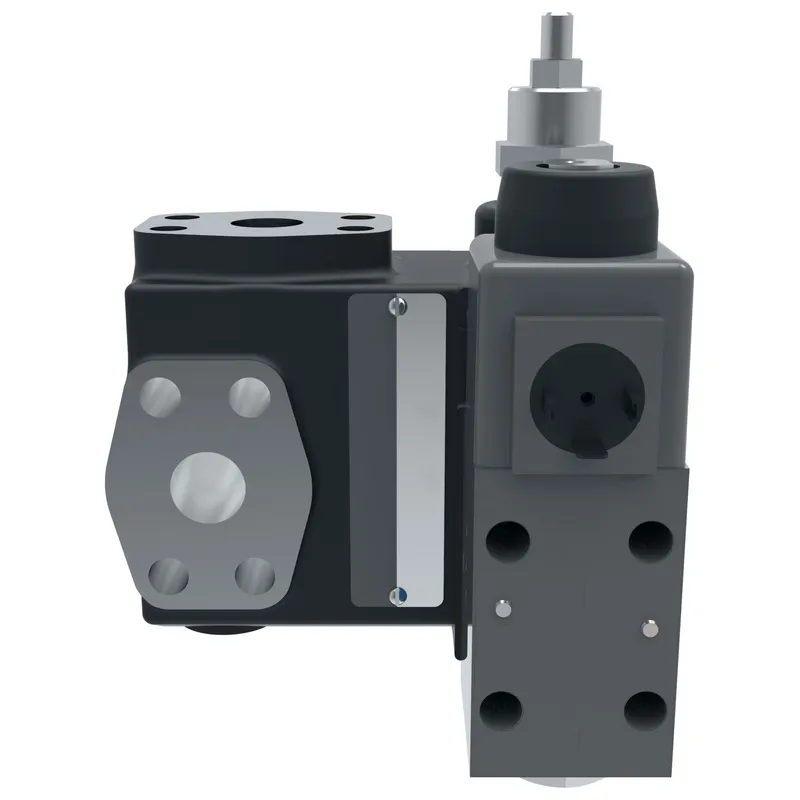

Danfoss CF 16 BV 10, CF16BV10, manufacturer part number 131025. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
Adjustment range5-70 bar (75-1000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Design Series10 Series
Electrical connectionNone
Flow rate lpm473.0
Flow rate USGPM125.0
Fluid Cleanliness20/18/15 Micron
Fluid compatibilityPetroleum oils
Hi-vent springYes
Indicator LightNo
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1CF16BV10
PerformanceStandard
Product height in8.060
Product height mm204.724
Product length in6.780
Product length mm172.212
Product width in4.250
Product width mm107.95
Seal materialNitrile
SizeSize 16
Special featureNone
StageTwo stage
Valve Mount TypeFlange mounted
Valve typeBalanced piston relief valve
Working temperature max C80
Working temperature max F176
Working temperature min C-20
Working temperature min F-4

131025: frequently asked questions

When can 131025 be shipped?

131025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 131025 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 131025 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 131025, subject to availability and destination.
