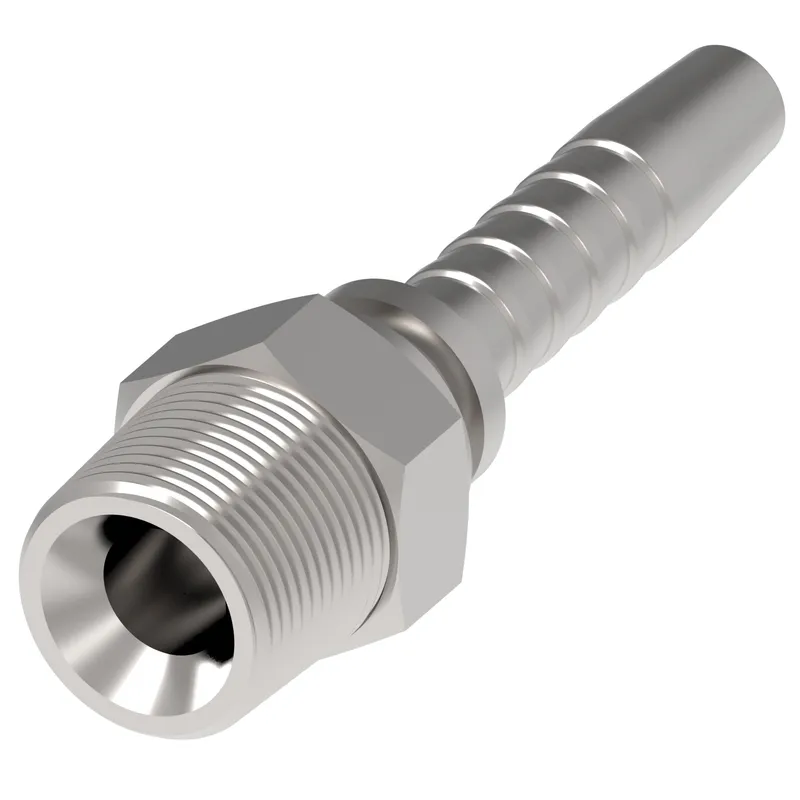

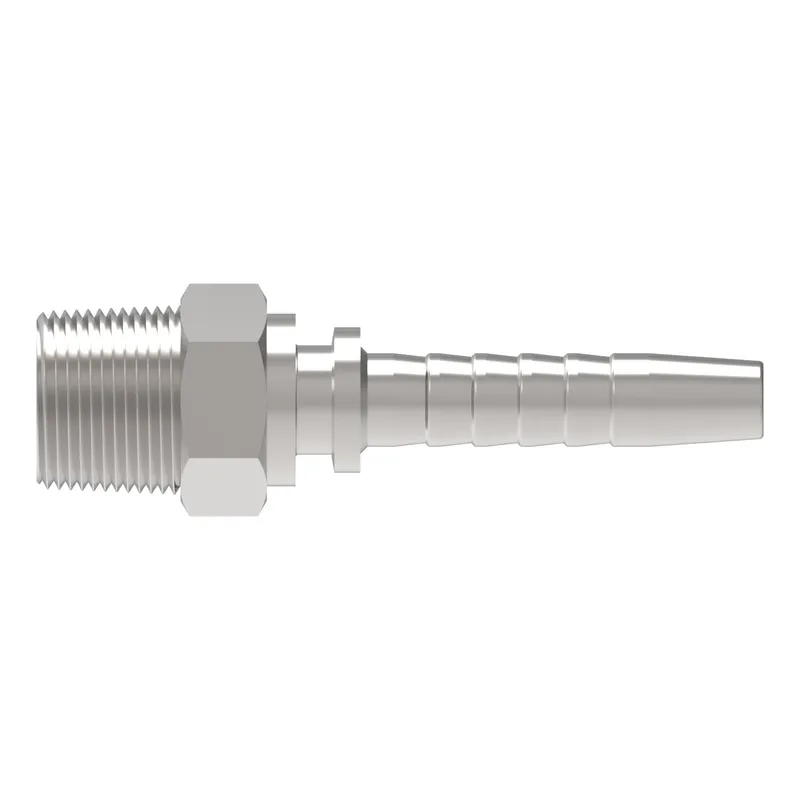

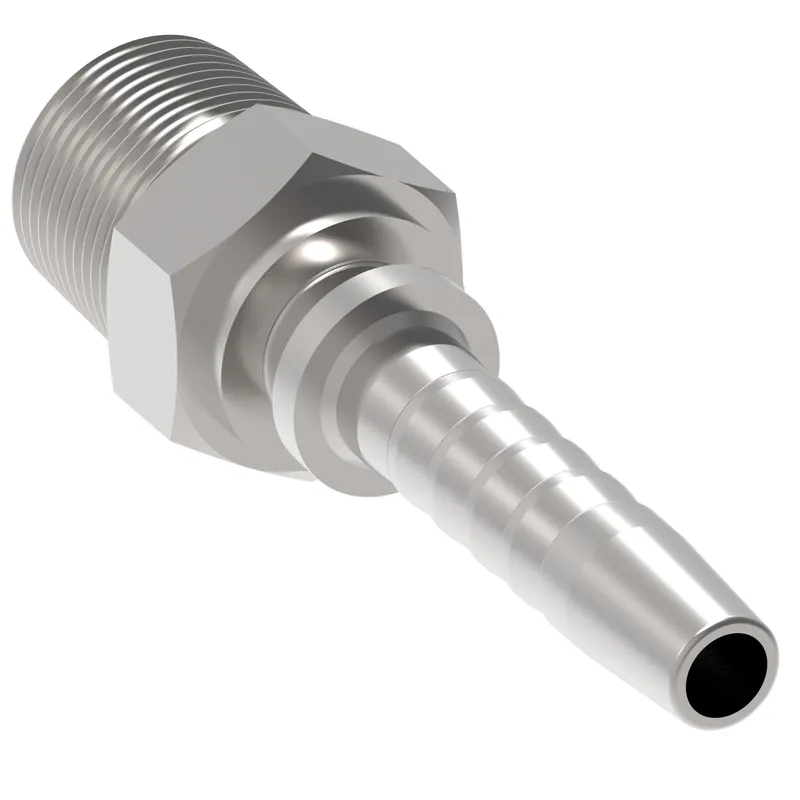

Danfoss 13011-06-05SPZ

HOSE NIPPLE ASSY,2P/05,BSPT-M/06,CS,STR

MPN
13011-06-05SPZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 13011-06-05SPZ?

Danfoss HOSE NIPPLE ASSY,2P/05,BSPT-M/06,CS,STR, manufacturer part number 13011-06-05SPZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.180
A dimension MM55.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.310
Compatible hose ID MM7.900
Construction StyleCrimp
End size 1-6
End Type 1Male pipe BSPT
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hose cut off factor IN1.080
Hose cut off factor MM27.500
Hose size-5
Inside diameter IN0.216
Inside diameter MM5.500
Product height in0.771
Product height mm19.600
Product length in2.185
Product length mm55.500
Product materialCarbon steel
Product width in0.669
Product width mm17
Proposition 65Cancer and Reproductive Harm
SeriesWinner 2-Piece
Thread sealantYes
Thread size 1R 3/8
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

13011-06-05SPZ: frequently asked questions

When can 13011-06-05SPZ be shipped?

13011-06-05SPZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 13011-06-05SPZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 13011-06-05SPZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13011-06-05SPZ, subject to availability and destination.
