Danfoss 13

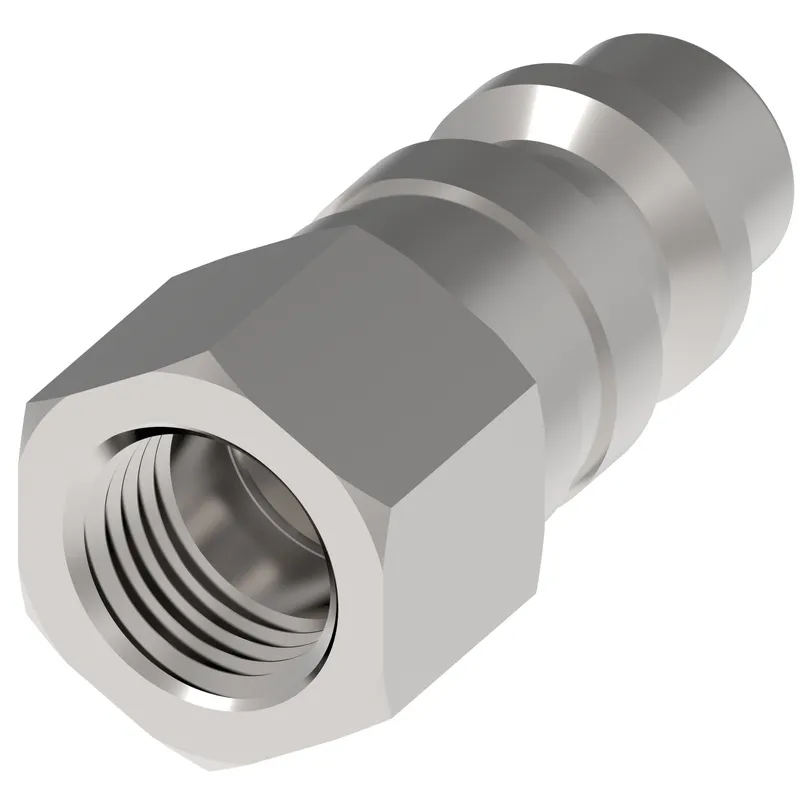

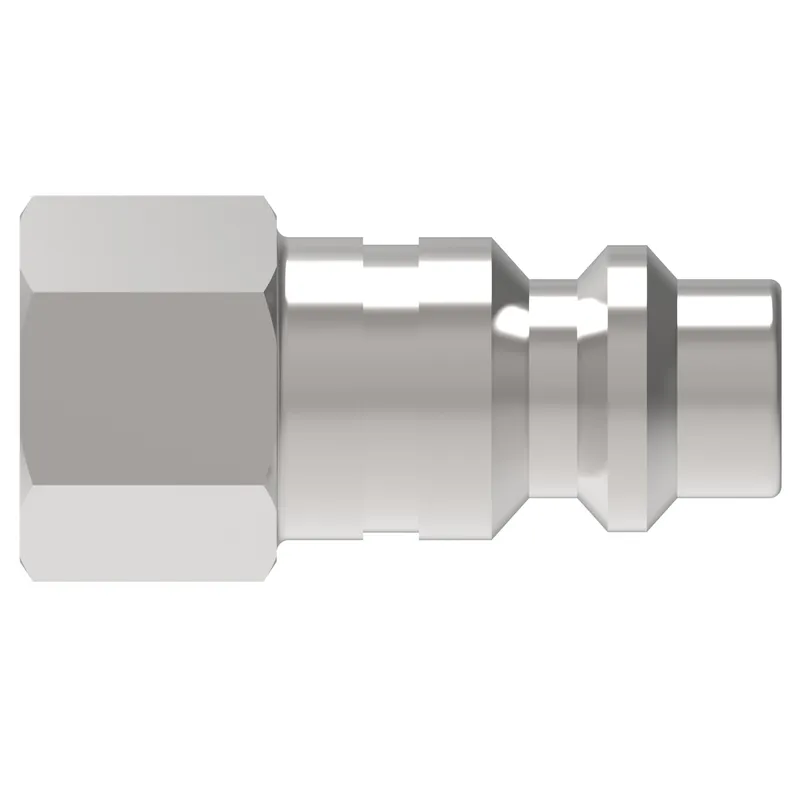

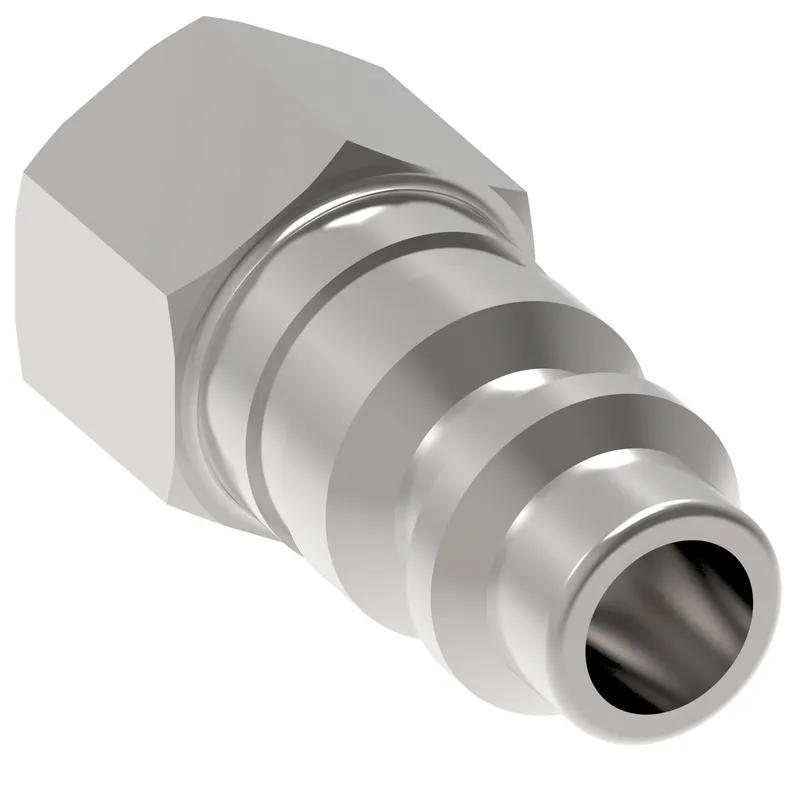

COUPLING,1000,M,1/4,B,-2NPT

MPN: 13
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 13?

Danfoss COUPLING,1000,M,1/4,B,-2NPT, manufacturer part number 13. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146041999
Angle shape	Straight
Body size	1/4
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
End size 1	-2
End size 2	-2
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Flow rate GPM	179.00
Flow rate LPM	677.59
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.560
Hex size 1 MM	14.224
Item type	Male half
Latch type	Push/pull
Product height in	0.650
Product height mm	16.510
Product length in	1.470
Product length mm	37.338
Product material	Carbon steel
Product width in	0.650
Product width mm	16.510 mm
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Thread size 1	1/8-27 NPTF
Valve type	1 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

13: frequently asked questions

When can 13 be shipped?

13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 13, subject to availability and destination.
