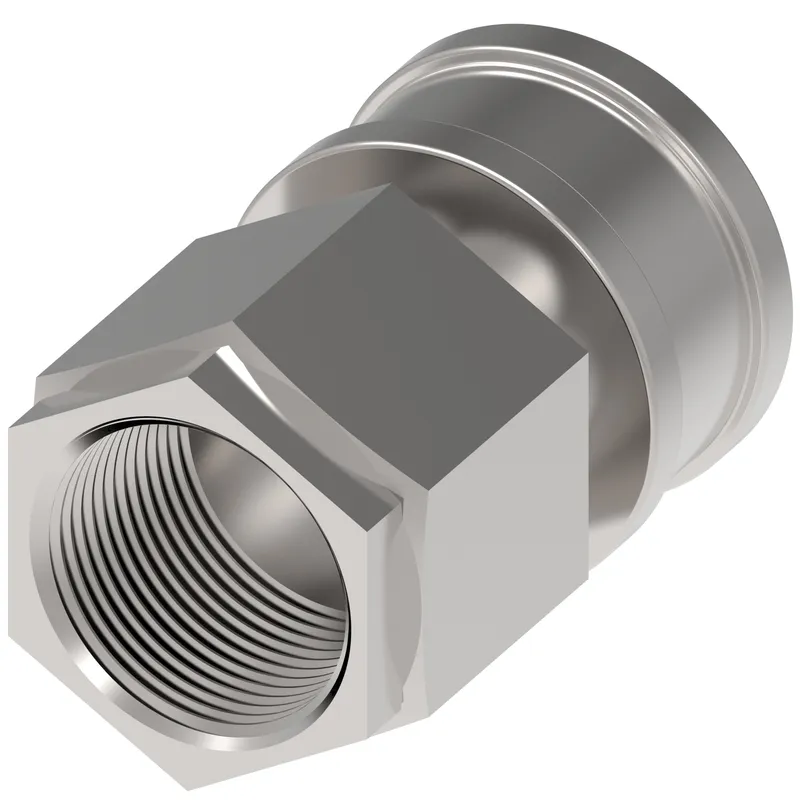

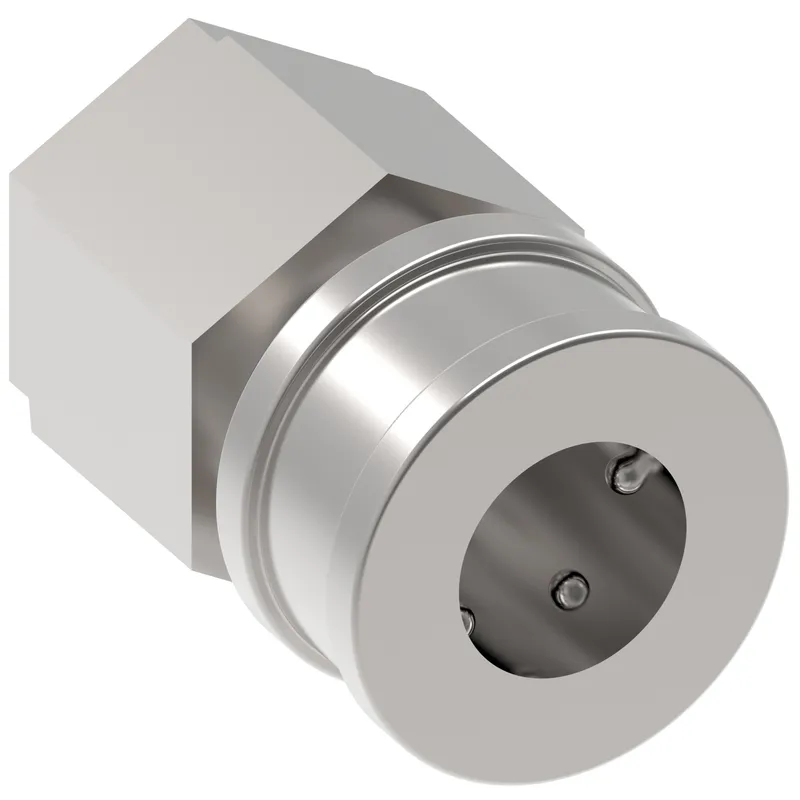

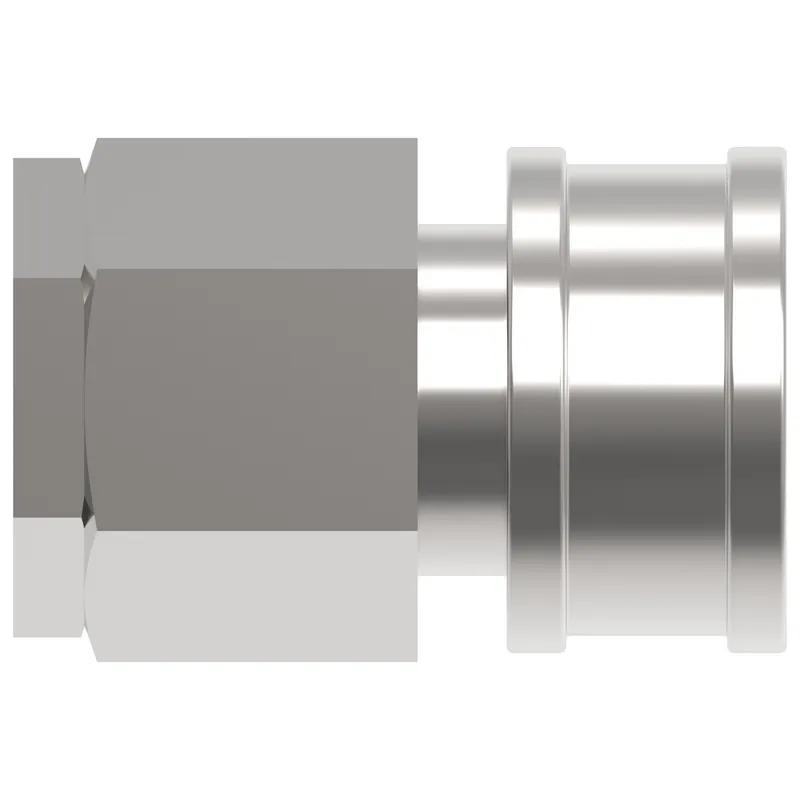

Danfoss 12H46C

COUPLING,HK,F,1"1/2,CS,-24NPTF,NBR,SL SP

MPN: 12H46C
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12H46C?

Danfoss COUPLING,HK,F,1"1/2,CS,-24NPTF,NBR,SL SP, manufacturer part number 12H46C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146159557
Air inclusion max cc	91.30
Air inclusion max in3	5.57
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1 1/2"
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-24
End size 2	-24
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	99.00
Flow rate LPM	374.76
Fluid compatibility	Hydraulic fluid
Fluid loss cc	91.30000
Fluid loss in3	5.57100
Hex size 1 IN	2.380
Hex size 1 MM	60.452
Item type	Female half
Latch type	Push/pull
Product length in	4.820
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	1 1/2-11 1/2 NPTF
Valve type	2 way
Working pressure max psi	2175
Working pressure max BAR	150
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

12H46C: frequently asked questions

When can 12H46C be shipped?

12H46C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12H46C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12H46C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12H46C, subject to availability and destination.
