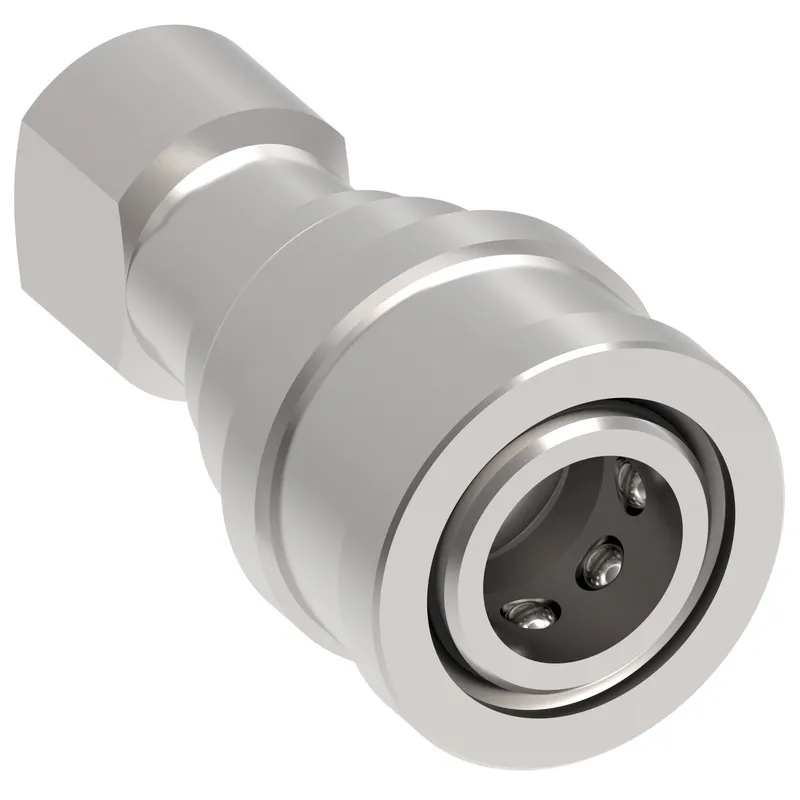

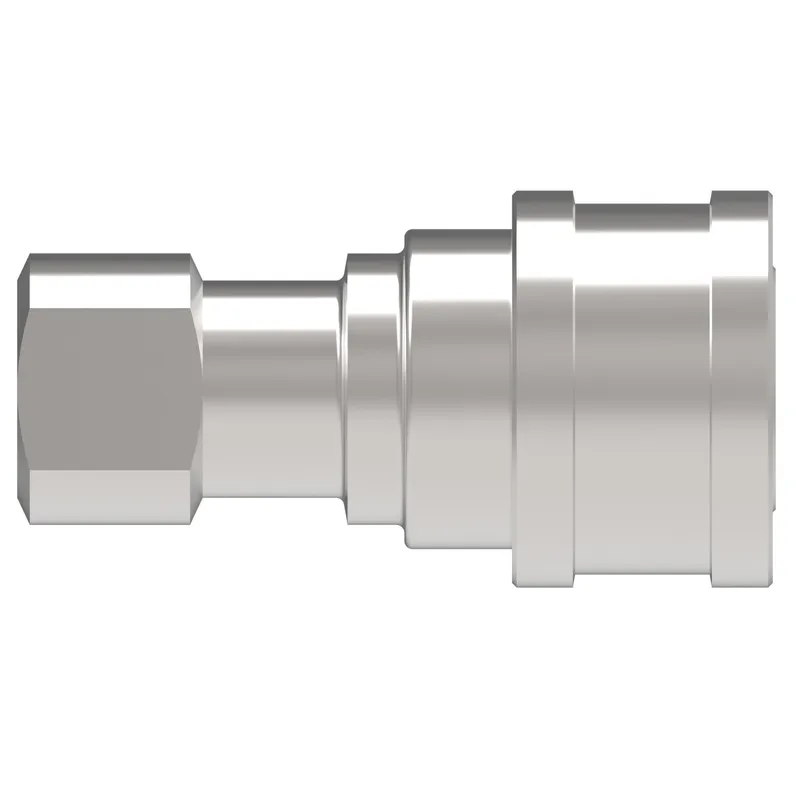

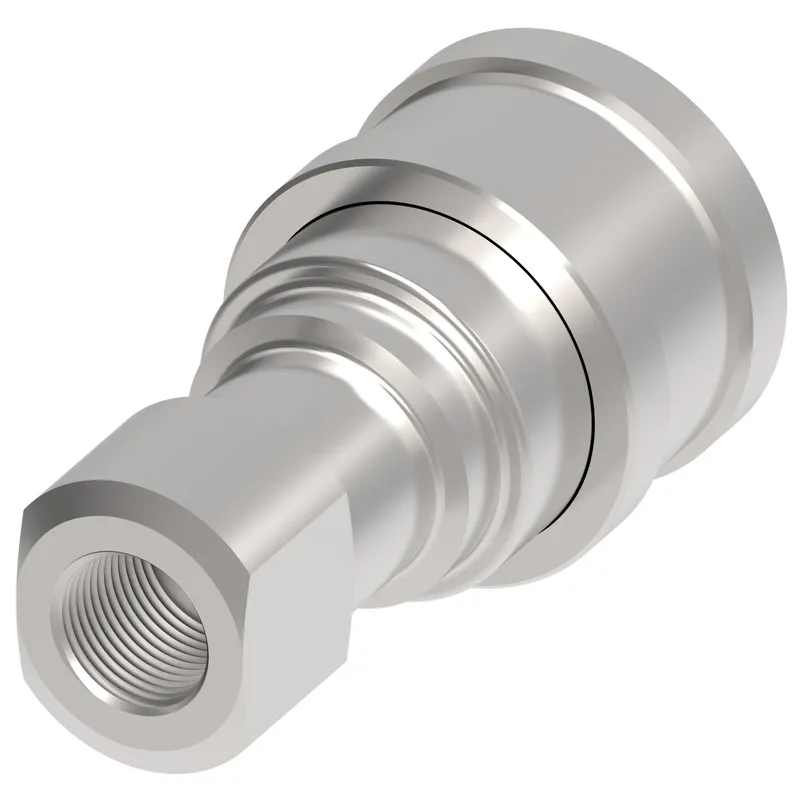

Danfoss 12H46BS

COUPLING,HK,F,1"1/2,CS,-24BSP,NBR

MPN: 12H46BS
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12H46BS?

Danfoss COUPLING,HK,F,1"1/2,CS,-24BSP,NBR, manufacturer part number 12H46BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146159540
Air inclusion max cc	91.30
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1 1/2"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-24
End type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Flow rate GPM	99.00
Fluid loss cc	91.30000
Hex size 1 IN	2.380
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 1 1/2
Valve type	2 way
Working pressure max psi	421
Working temperature max F	250
Working temperature min F	-40

12H46BS: frequently asked questions

When can 12H46BS be shipped?

12H46BS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12H46BS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12H46BS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12H46BS, subject to availability and destination.
