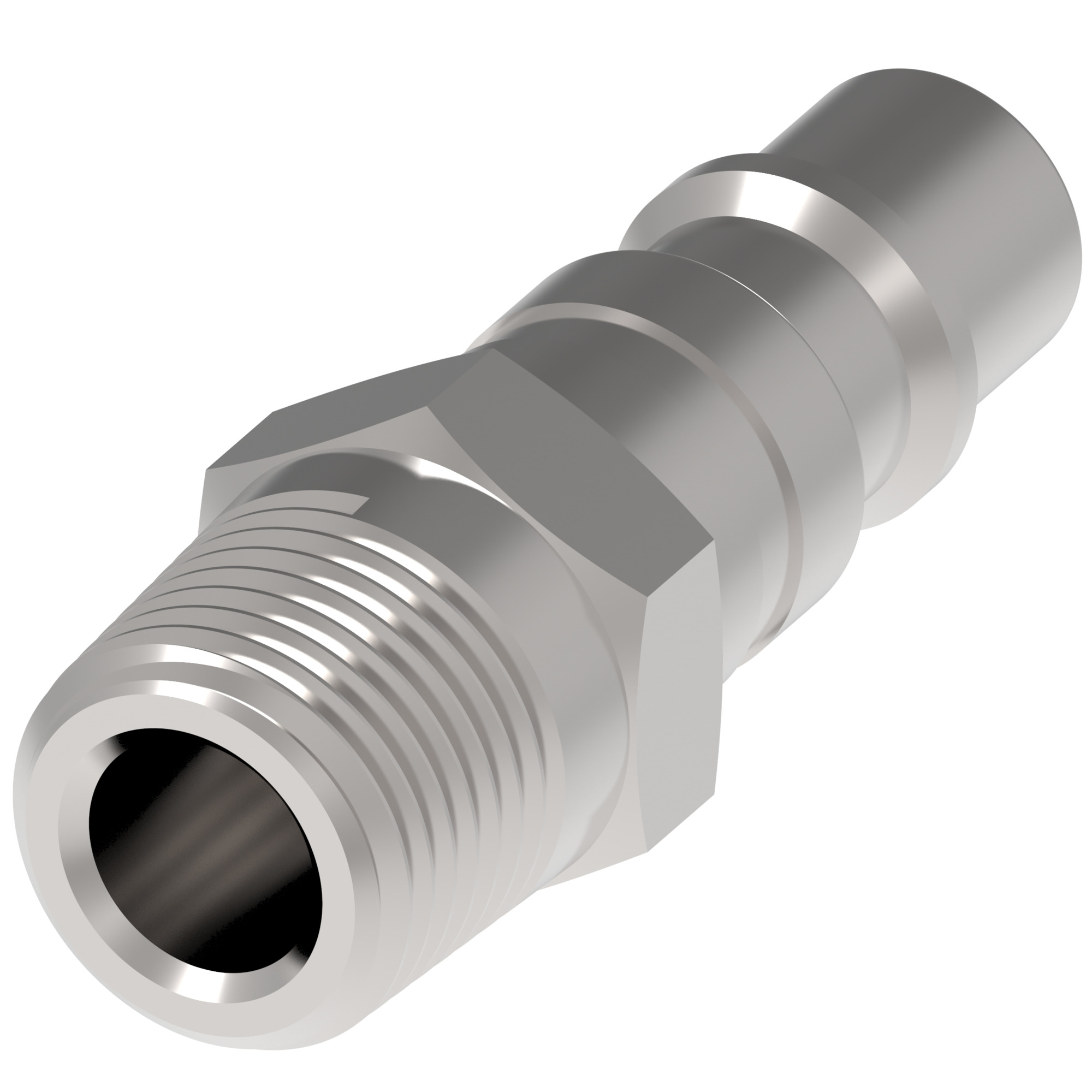

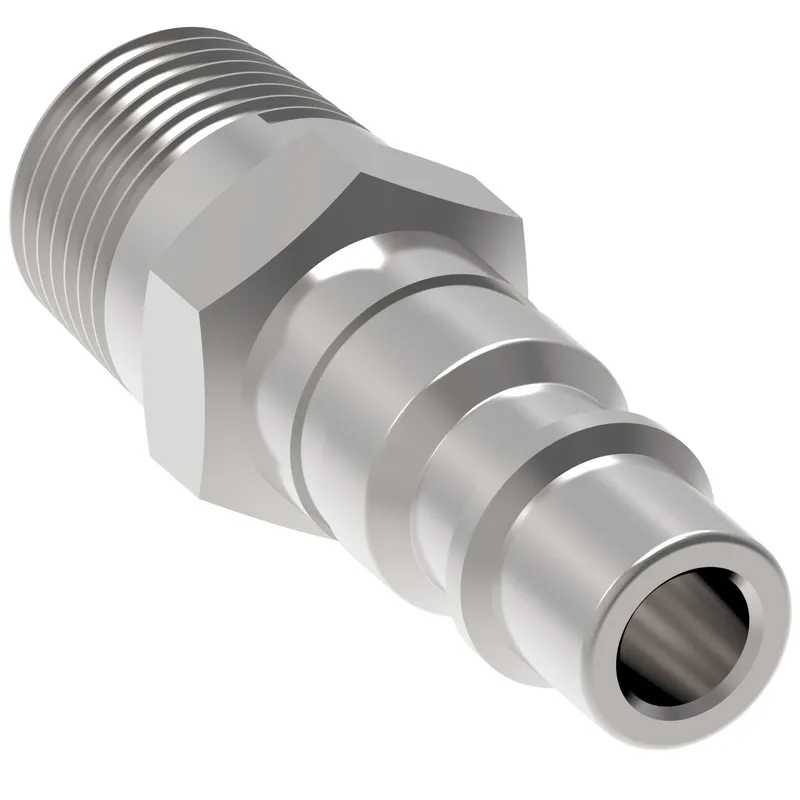

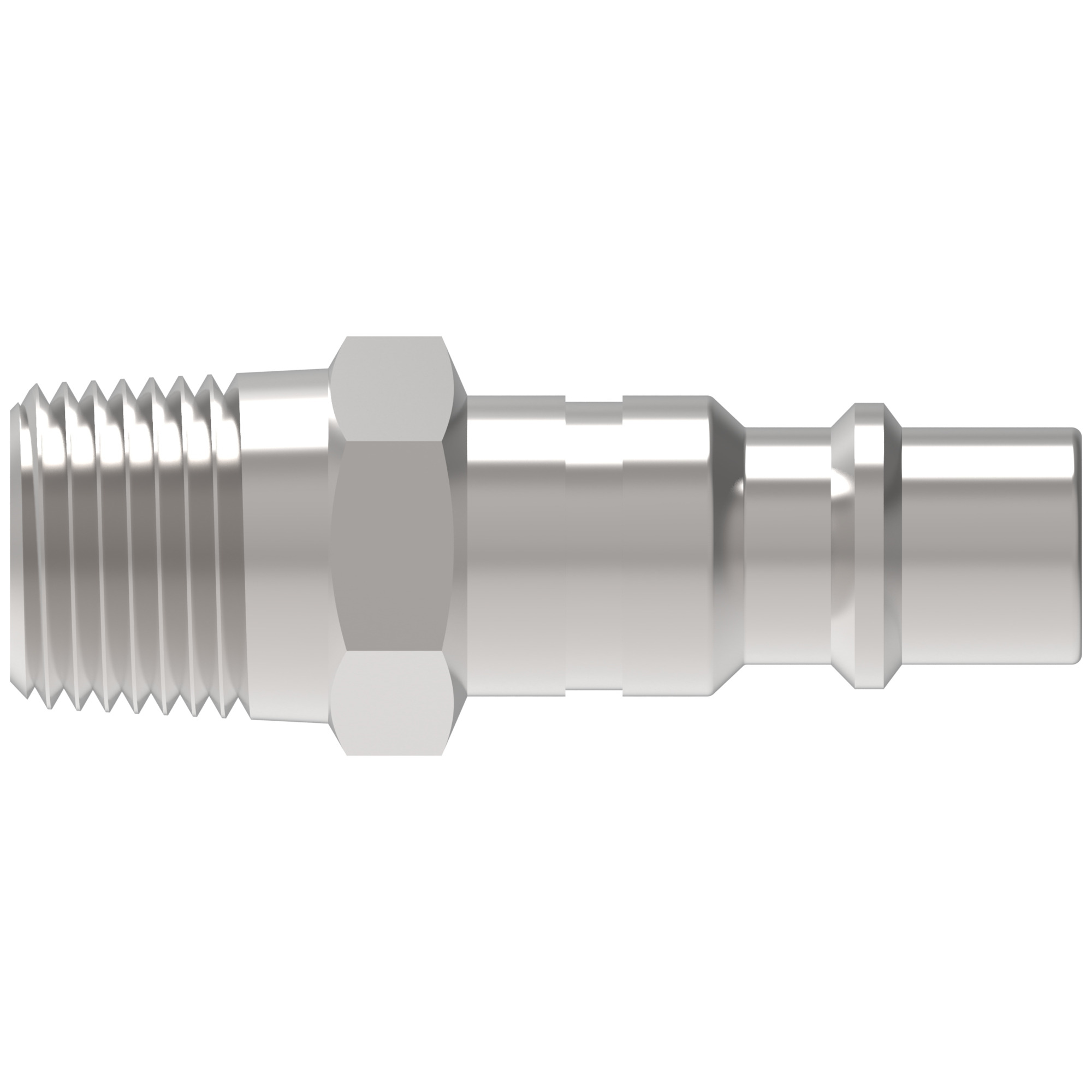

Danfoss 12G

Cplng, 1000 SERIES MALE, STEEL

MPN: 12G
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12G?

Danfoss Cplng, 1000 SERIES MALE, STEEL, manufacturer part number 12G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146096708
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	552
Burst pressure min psi	8000
Connection style	Manual connect
End size 2	-2
End type 1	Male push to connect
End type 2	Male pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	179.00
Flow rate LPM	677.59
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	1 way
Working pressure max psi	2000
Working pressure max BAR	138
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
