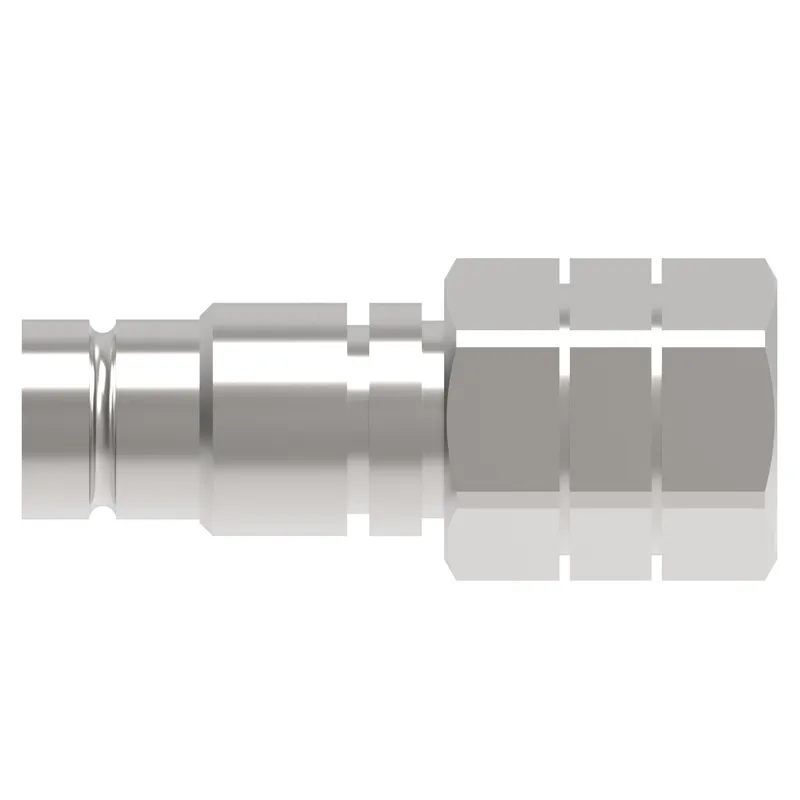

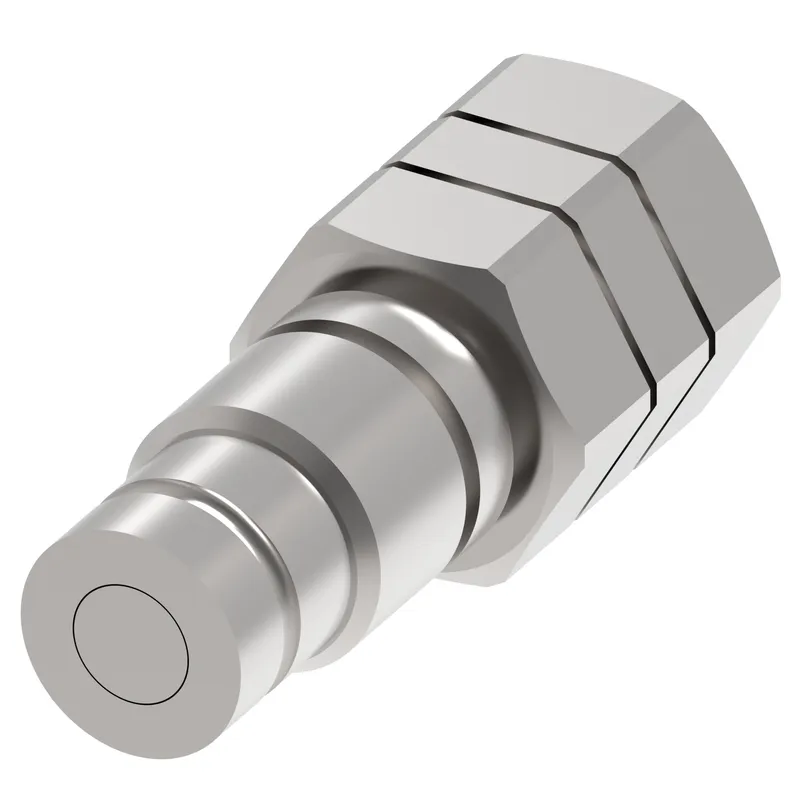

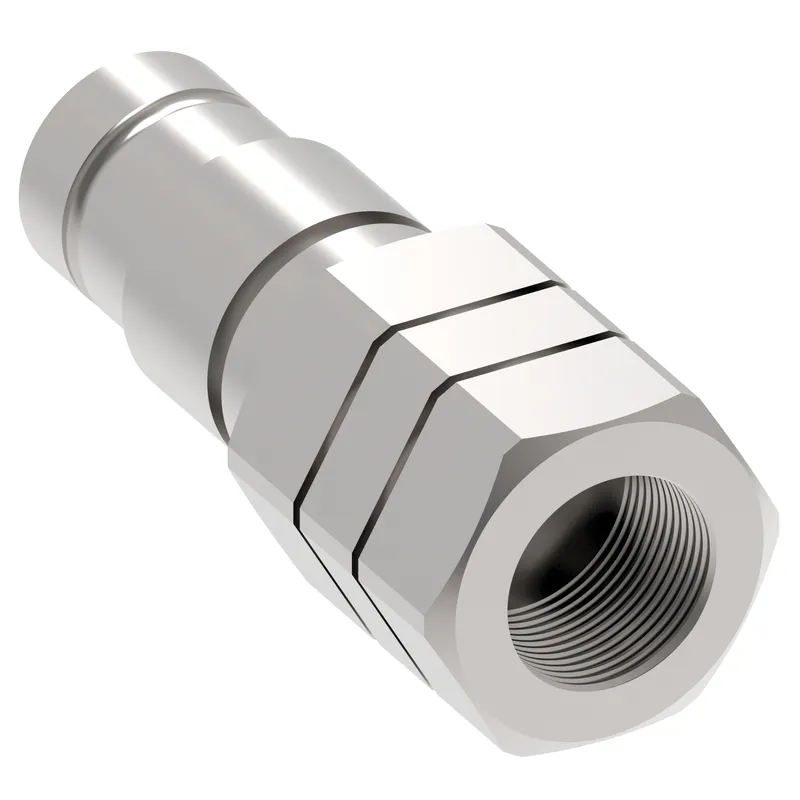

Danfoss 12FFPCUP56UN

COUPLING,FFCUP,M,1/2,CS,-6UNF,NBR

MPN: 12FFPCUP56UN
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12FFPCUP56UN?

Danfoss COUPLING,FFCUP,M,1/2,CS,-6UNF,NBR, manufacturer part number 12FFPCUP56UN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146156297
Air inclusion max cc	0.01
Angle shape	Straight
Application	Agriculture, Connections to hydraulic pumps, Construction, Distributors and accessories, General industry, Hydraulics, Material handler, Railways, Steel industry
Body size	1/2
Brand	Danfoss
Burst pressure min psi	20300
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3
Connection style	Manual connect
End size 1	-6
End type 1	Female ORB port ISO 11926-1
Finish plating	Guardian sealtm
Flow rate GPM	12.36
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.01200
Hex size 1 IN	1.410
Item type	Male half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	9/16-18 UNF
Torque lbs-ft	60.70
Valve type	1 way
Working pressure max psi	5075
Working temperature max F	212
Working temperature min F	-13

12FFPCUP56UN: frequently asked questions

When can 12FFPCUP56UN be shipped?

12FFPCUP56UN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12FFPCUP56UN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12FFPCUP56UN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12FFPCUP56UN, subject to availability and destination.
