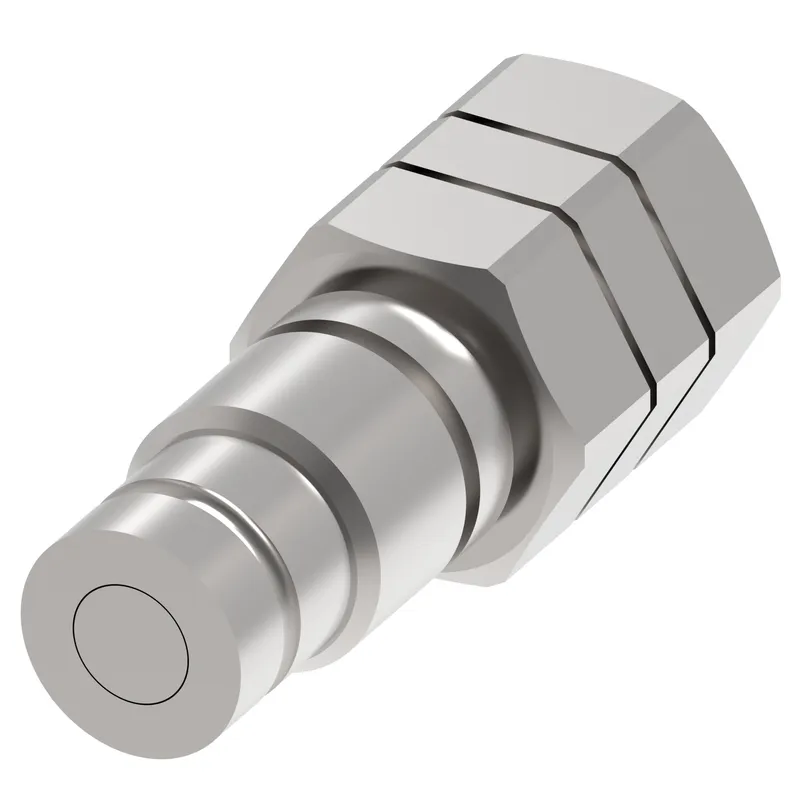

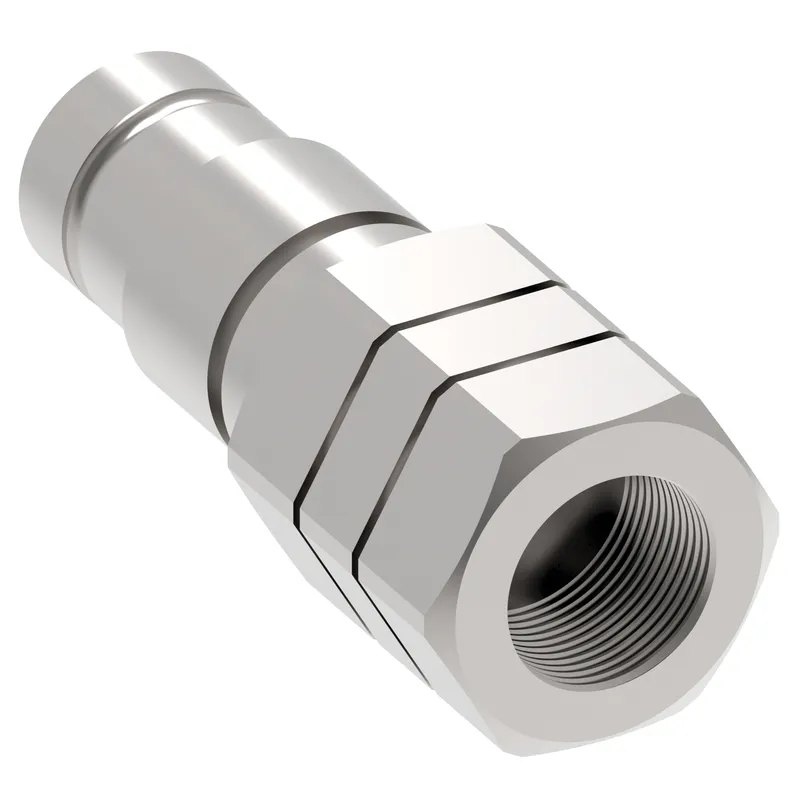

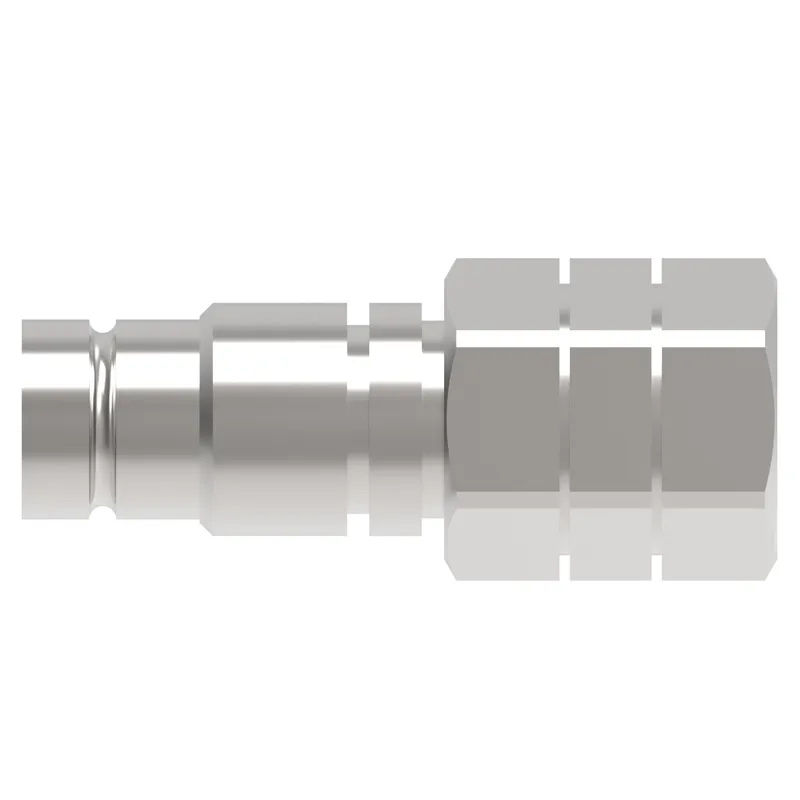

Danfoss 12FFP50143

COUPLING,FF,M,1/2,CS,-8NPT,FKM

MPN: 12FFP50143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12FFP50143?

Danfoss COUPLING,FF,M,1/2,CS,-8NPT,FKM, manufacturer part number 12FFP50143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146096623
Air inclusion max cc	0.01
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	1/2
Brand	Danfoss
Burst pressure min psi	20300
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3, REACH, RoHS Compliant
Connection style	Manual connect
End size 1	-8
End type 1	Female Pipe (NPT)
Finish plating	Guardian sealtm
Flow rate GPM	20.30
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.01200
Hex size 1 IN	1.420
Item type	Male half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	1/2-14 NPT
Torque lbs-ft	43.80
Valve type	2 way
Working pressure max psi	5800
Working temperature max F	392
Working temperature min F	-4
