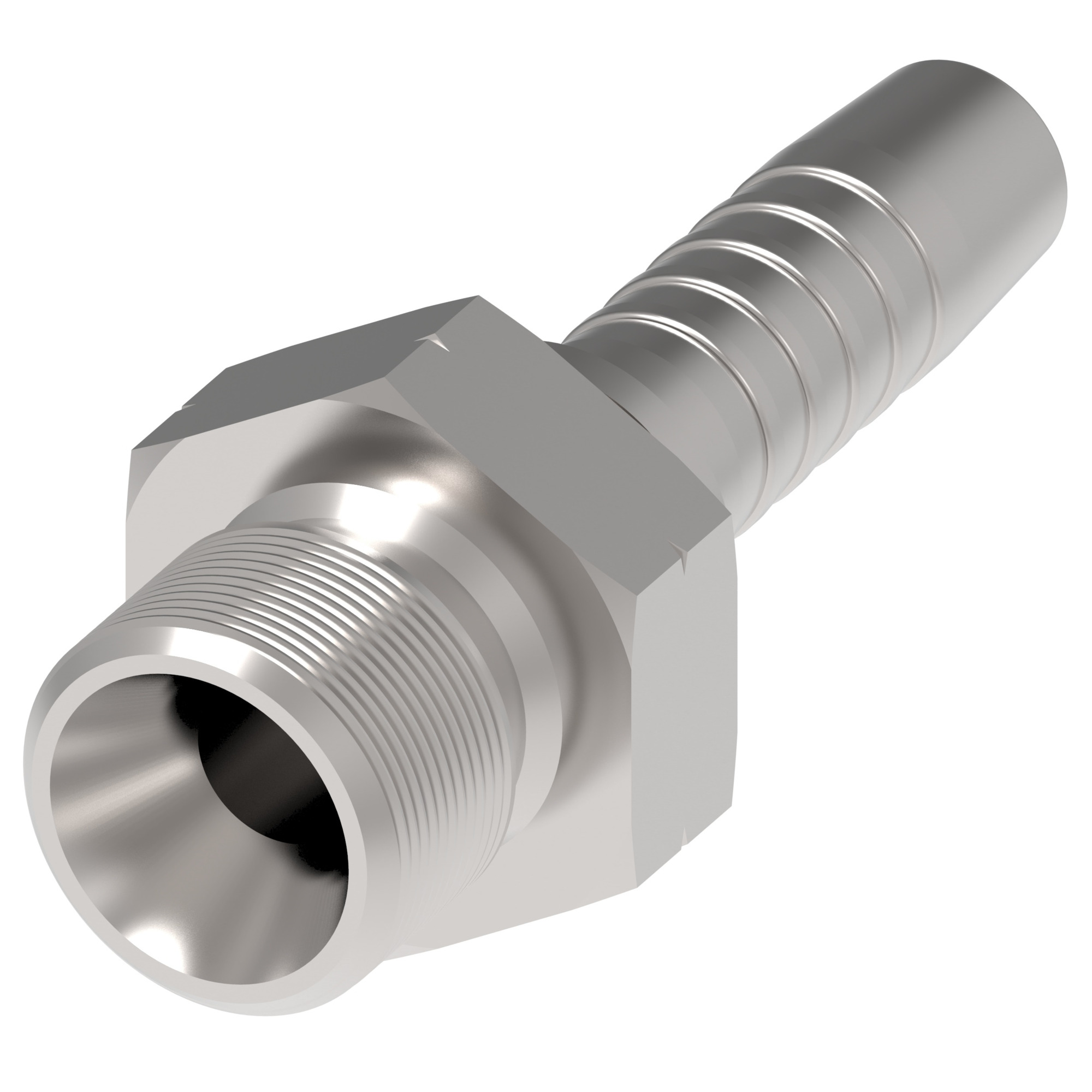

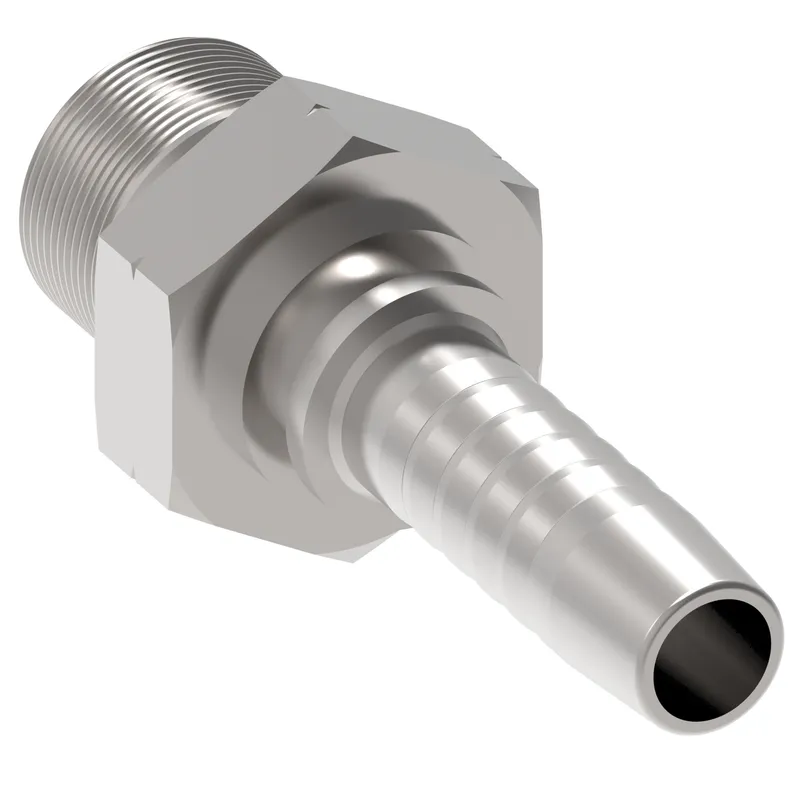

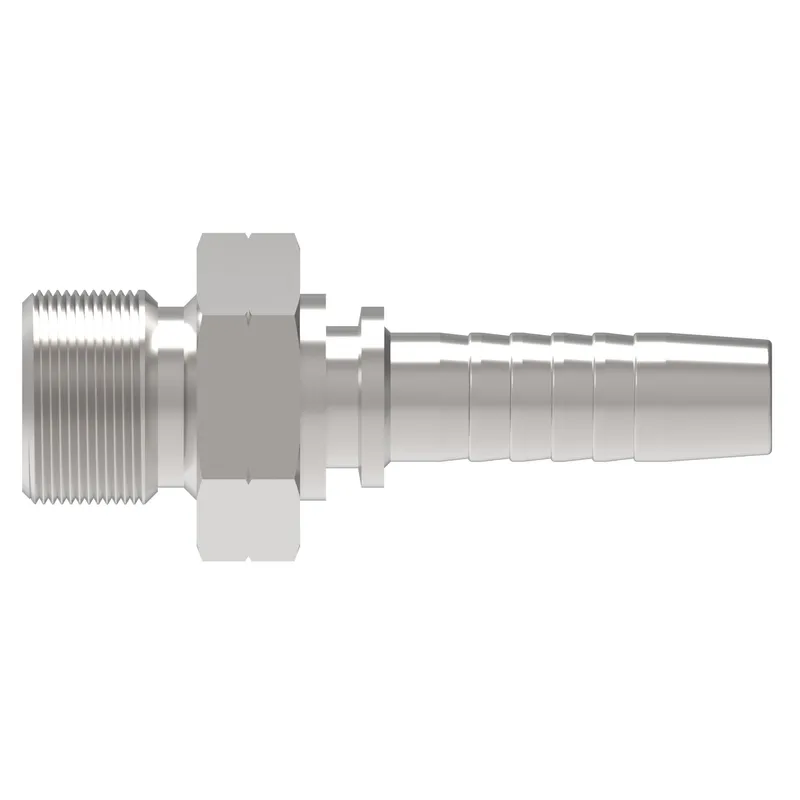

Danfoss 12613-32-32Z

HOSE NIPPLE ASSY,2P/32,BSPJ/32,CS,STR

MPN
12613-32-32Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12613-32-32Z?

Danfoss HOSE NIPPLE ASSY,2P/32,BSPJ/32,CS,STR, manufacturer part number 12613-32-32Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.299
A dimension MM160.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN2.000
Compatible hose ID MM50.800
Construction StyleCrimp
End size 1-32
End type 1Male BSPP 60 degree cone
Finish platingZinc plating
Hex size 1 IN2.550
Hex size 1 MM64.770
Hose cut off factor IN2.322
Hose cut off factor MM59.000
Hose size-32
Inside diameter IN1.6140
Inside diameter MM41.0000
Product height in2.950
Product height mm74.930
Product length in6.300
Product length mm160.020
Product materialCarbon steel
Product width in2.550
Product width mm64.770 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1G 2
Working pressure max BAR110
Working pressure max PSI1600
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

12613-32-32Z: frequently asked questions

When can 12613-32-32Z be shipped?

12613-32-32Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12613-32-32Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12613-32-32Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12613-32-32Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 12612N-32-32Z – HOSE NIPPLE ASSY,2P/32,BSPJ/32,CS,STR
Danfoss
12612N-32-32Z

HOSE NIPPLE ASSY,2P/32,BSPJ/32,CS,STR

Danfoss 1261X2 – NUT POLYLINE Brass 102-11402
Danfoss
1261X2

NUT POLYLINE Brass 102-11402

Danfoss 1261X3 – NUT-POLYLINE Brass 102-11403
Danfoss
1261X3

NUT-POLYLINE Brass 102-11403

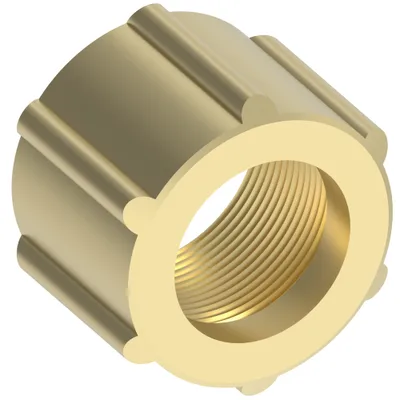

Danfoss 1261X4 – NUT POLYLINE BRASS 102-11404
