Danfoss 12612A-16-16Z

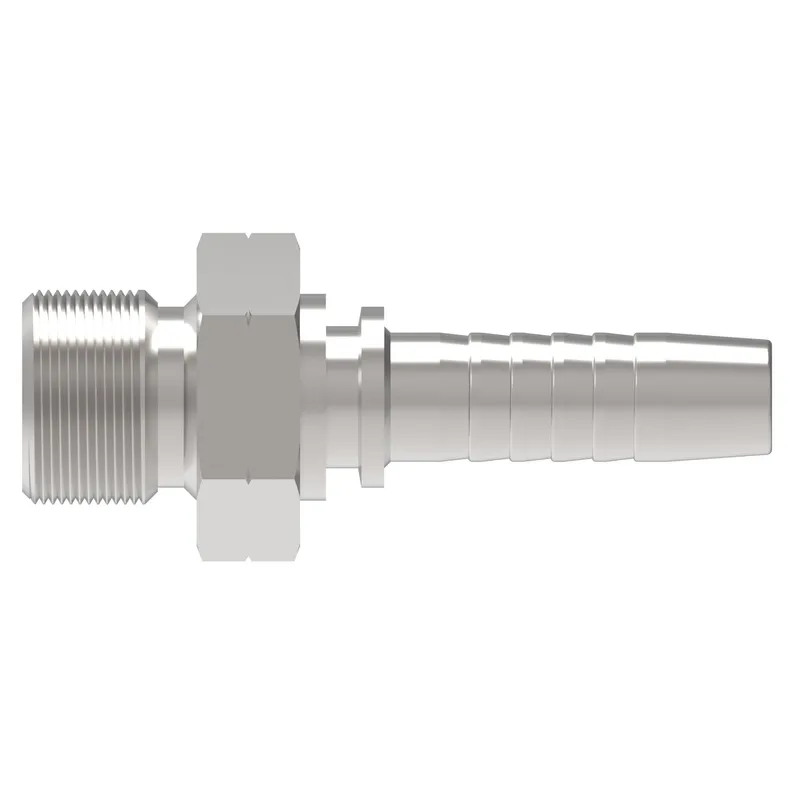

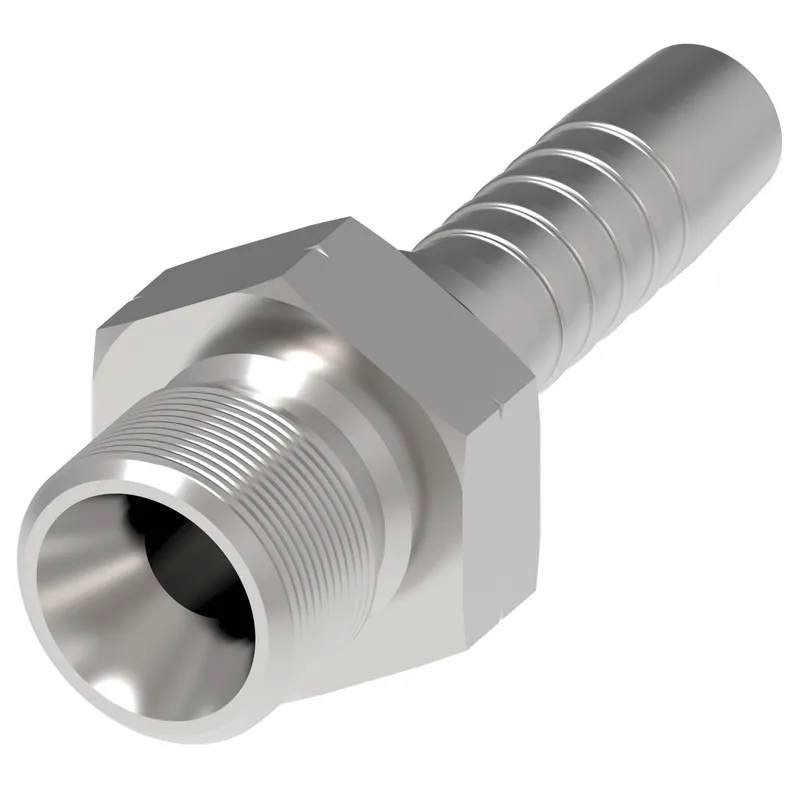

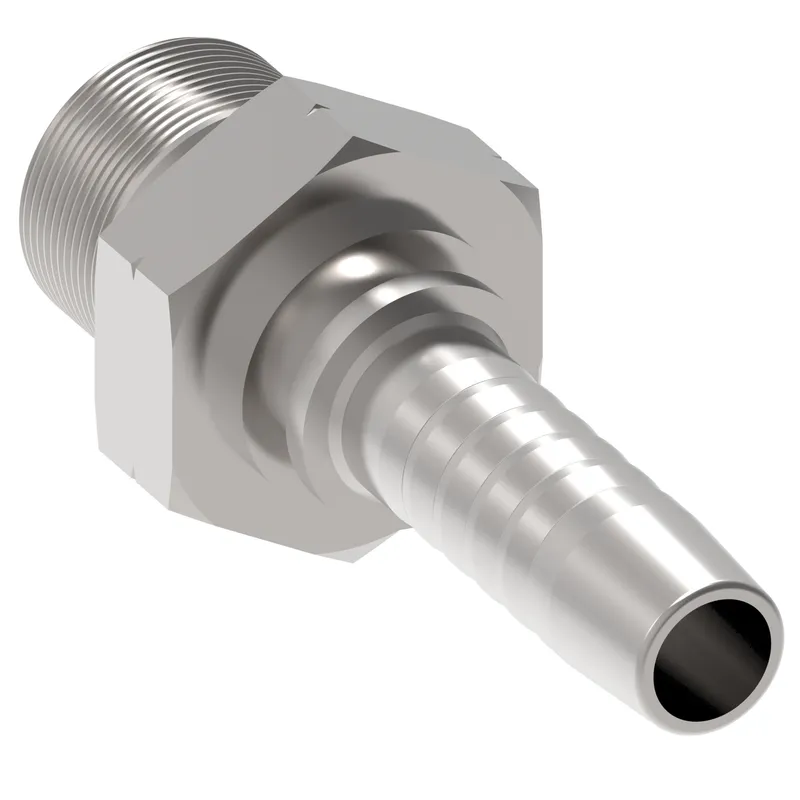

HOSE NIPPLE ASSY,2P/16,BSPJ/16,CS,STR

MPN
12612A-16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12612A-16-16Z?

Danfoss HOSE NIPPLE ASSY,2P/16,BSPJ/16,CS,STR, manufacturer part number 12612A-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.956
A dimension MM100.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
End connection torque162-184 lb-ft(220-250 Nm)
End size 1-16
End type 1Male BSPP 60 degree cone
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hex size 2 IN0.000
Hose cut off factor IN1.751
Hose cut off factor MM44.500
Hose size-16
Inside diameter IN0.7870
Inside diameter MM20.0000
Product height in1.850
Product height mm46.990
Product length in3.950
Product length mm100.330
Product materialCarbon steel
Product width in1.610
Product width mm40.894 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1G 1
Working pressure max BAR280
Working pressure max PSI4050
Working temperature max C126
Working temperature max F260
Working temperature min C-46
Working temperature min F-50

12612A-16-16Z: frequently asked questions

When can 12612A-16-16Z be shipped?

12612A-16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12612A-16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12612A-16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12612A-16-16Z, subject to availability and destination.
