Danfoss 12611AY-06-06Z

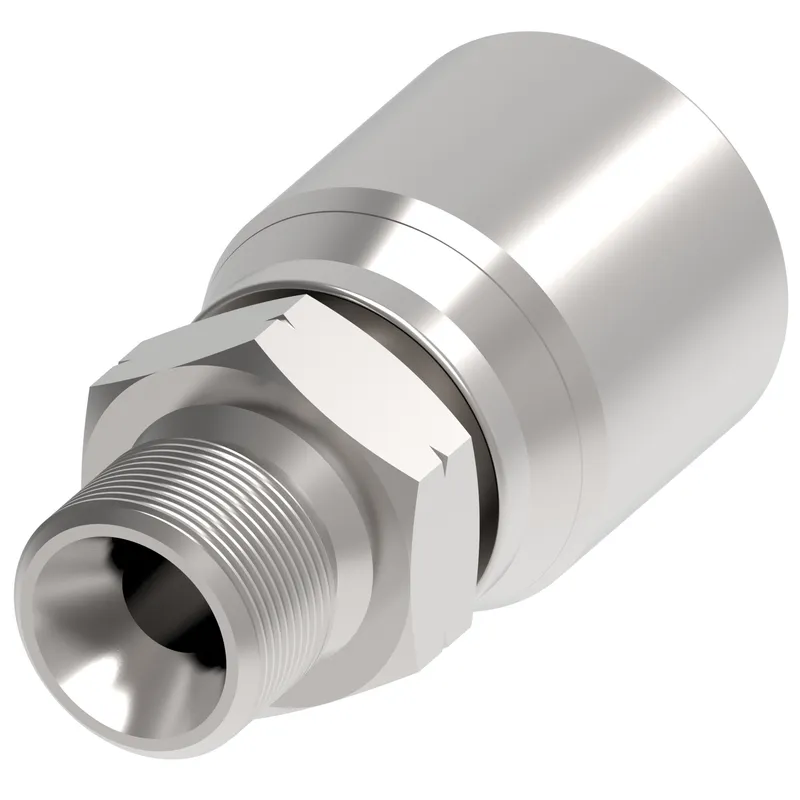

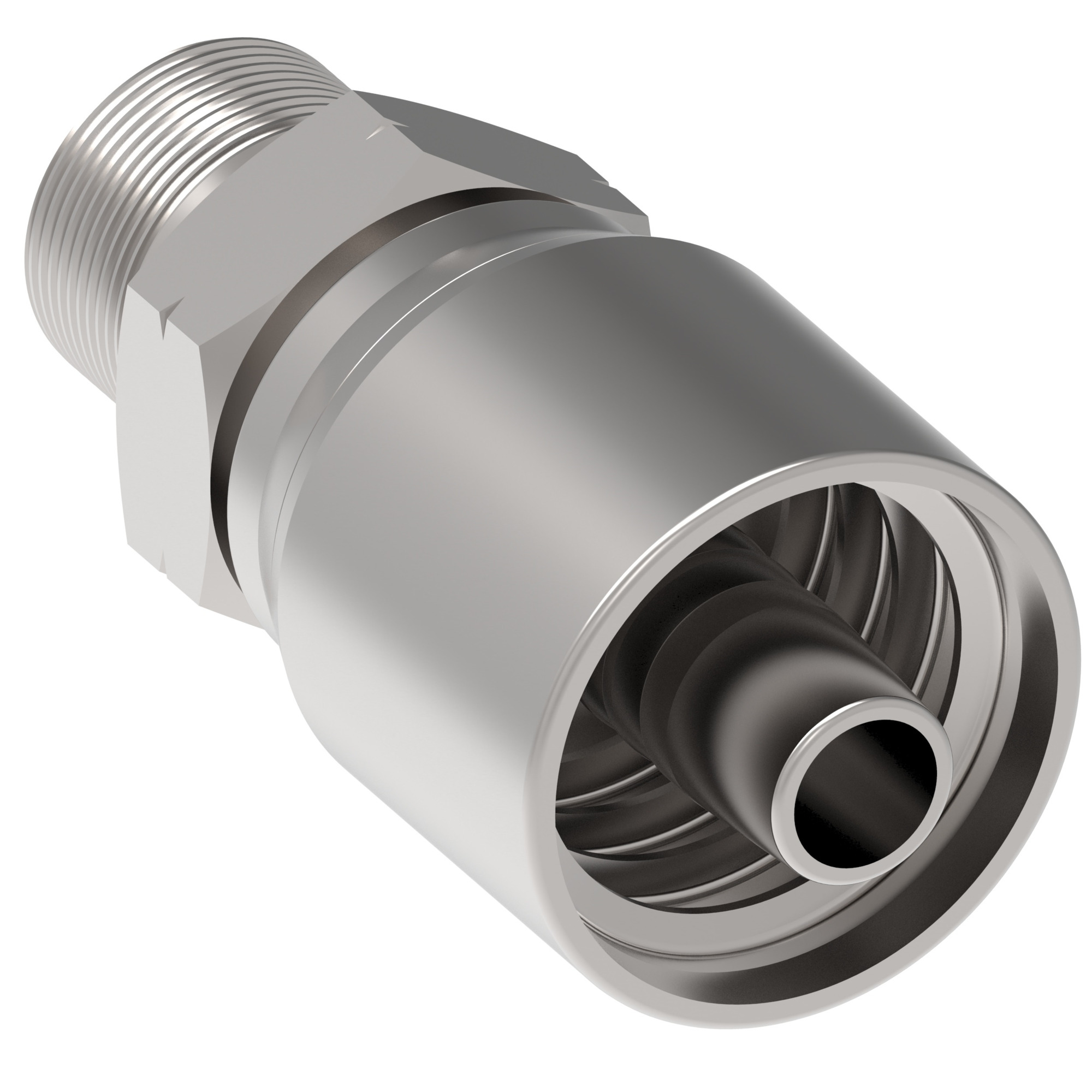

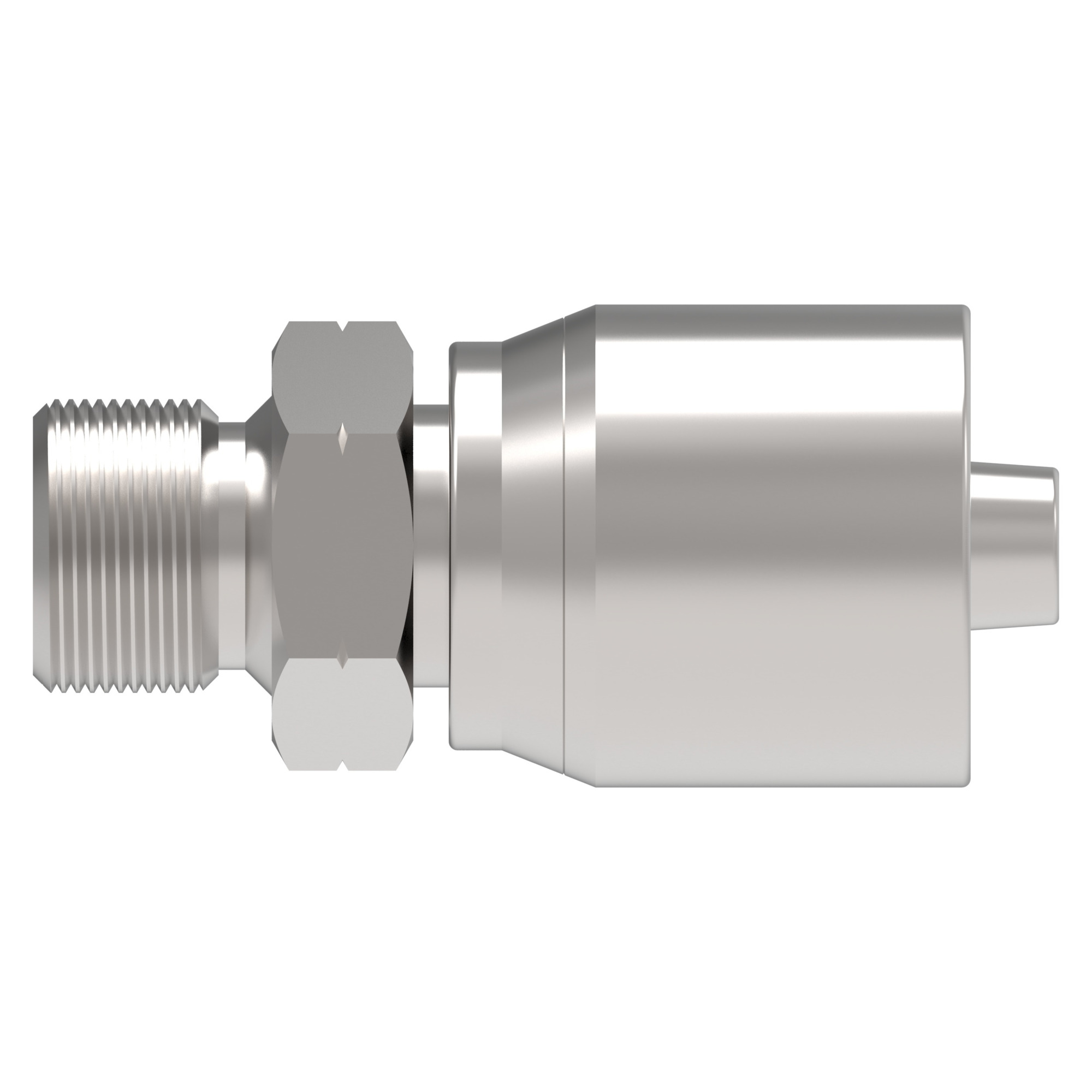

HOSE NIPPLE ASSY,1P/06,BSPJ/06,CS,STR

MPN
12611AY-06-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12611AY-06-06Z?

Danfoss HOSE NIPPLE ASSY,1P/06,BSPJ/06,CS,STR, manufacturer part number 12611AY-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.280
A dimension MM58.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End connection torque33-40 lb-ft(45-55 Nm)
End size 1-6
End size 2-6
End Type 1Male BSPP 60 degree cone
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hose cut off factor IN1.100
Hose cut off factor MM28.000
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in1.023
Product height mm26.000
Product length in2.283
Product length mm58.000
Product materialCarbon steel
Product width in1.023
Product width mm26
Thread sealantNo
Thread size 1G 3/8
Working pressure max BAR400
Working pressure max PSI5800
Working temperature max C126
Working temperature max F260
Working temperature min C-46
Working temperature min F-50
