Danfoss 12611A-08-04Z

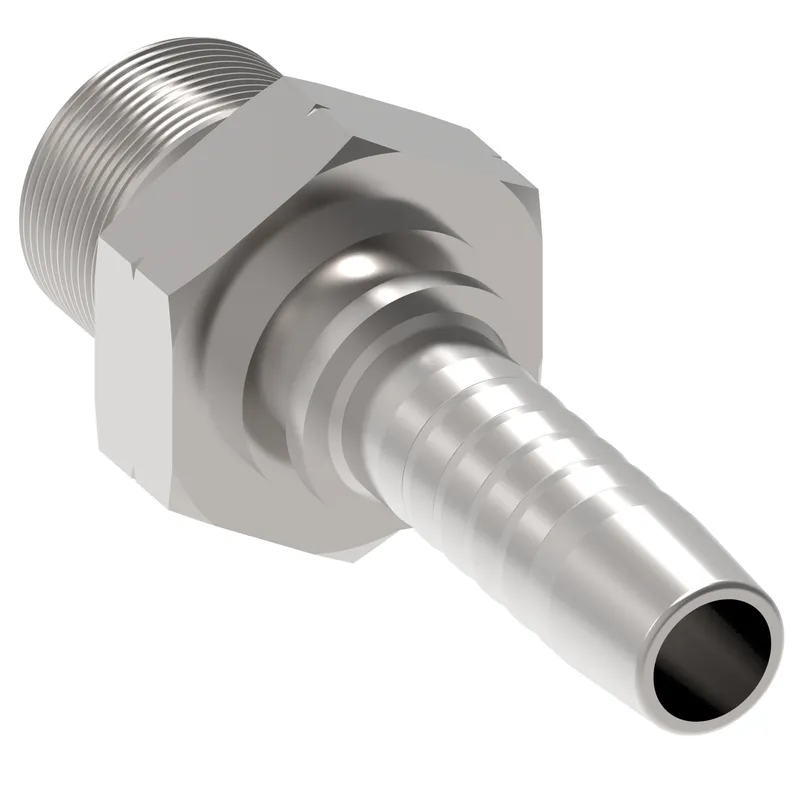

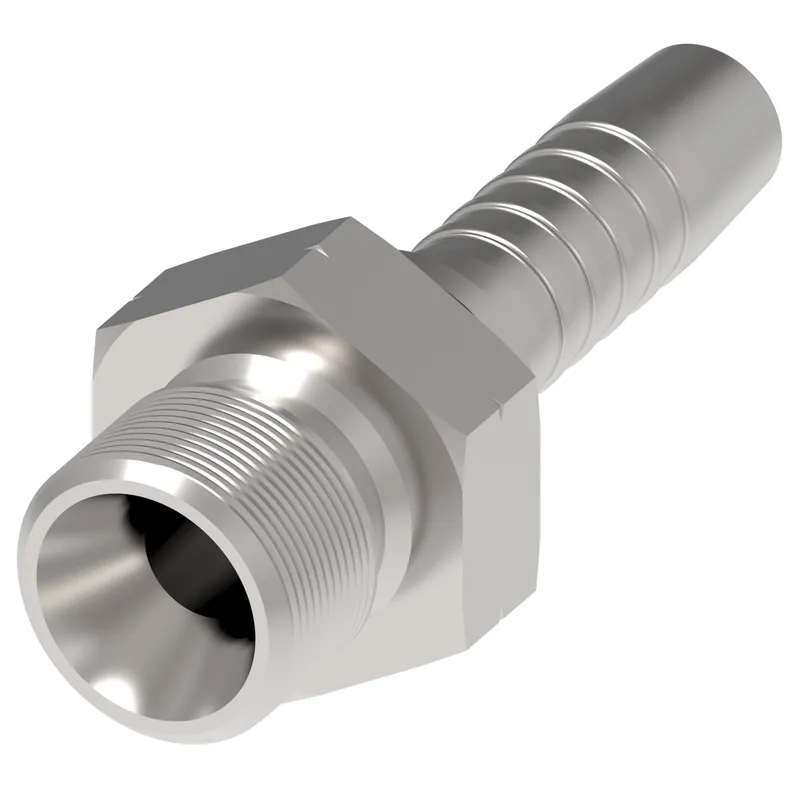

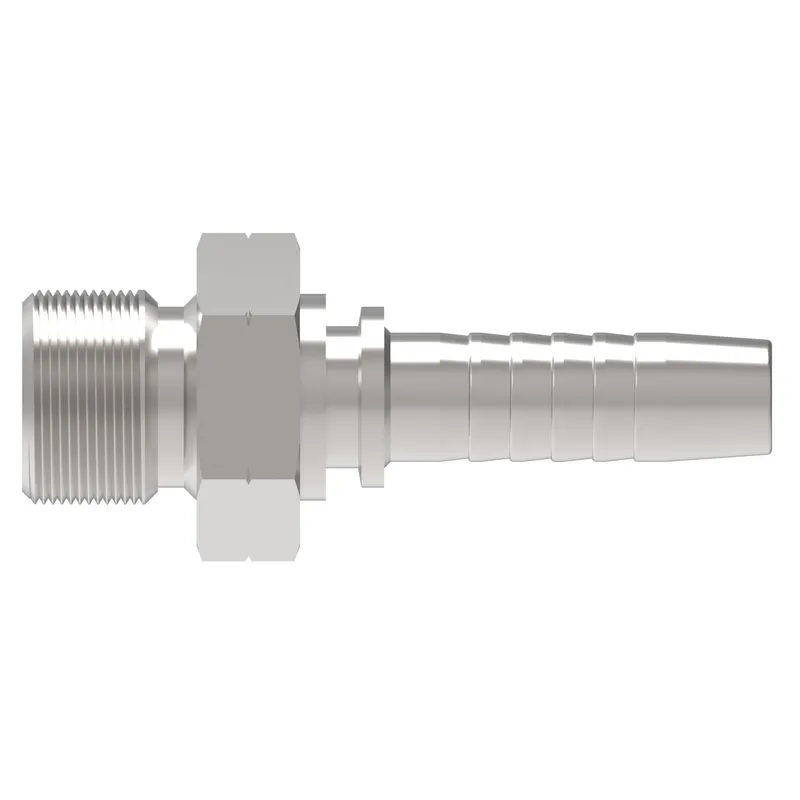

HOSE NIPPLE ASSY,2P/04,BSPJ/08,CS,STR

MPN
12611A-08-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12611A-08-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,BSPJ/08,CS,STR, manufacturer part number 12611A-08-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.401
A dimension MM61.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection torque55-70 lb-ft(75-95 Nm)
End size 1-8
End Type 1Male BSPP 60 degree cone
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hose cut off factor IN1.300
Hose cut off factor MM33.000
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in1.220
Product height mm30.988
Product length in2.400
Product length mm60.960
Product materialCarbon steel
Product width in1.060
Product width mm26.924
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1G 1/2
Working pressure max BAR360
Working pressure max PSI5300
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

12611A-08-04Z: frequently asked questions

When can 12611A-08-04Z be shipped?

12611A-08-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 12611A-08-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 12611A-08-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12611A-08-04Z, subject to availability and destination.
