Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL02417A

Danfoss (Drives)

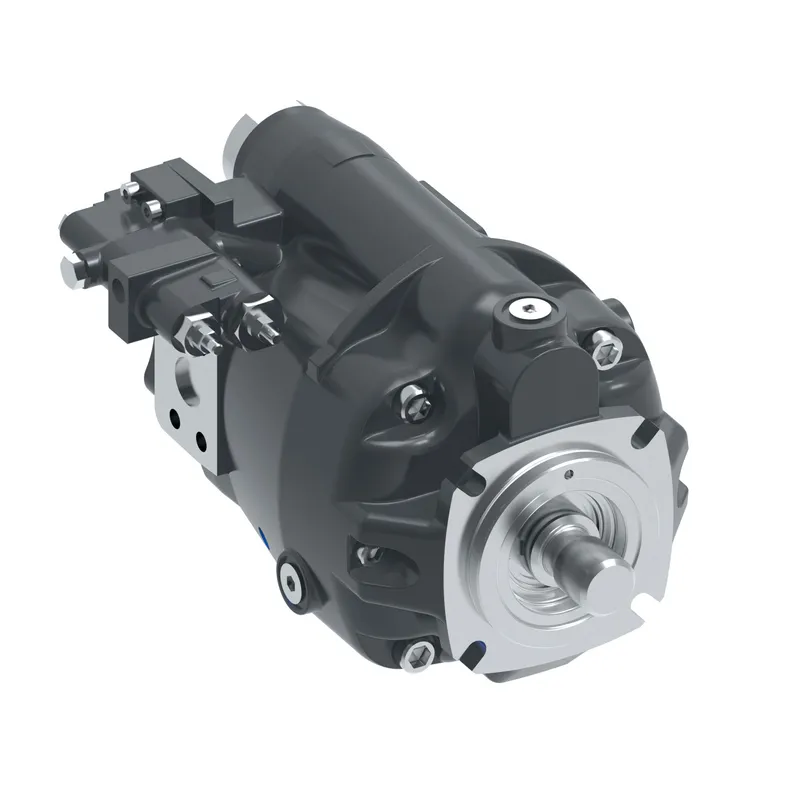

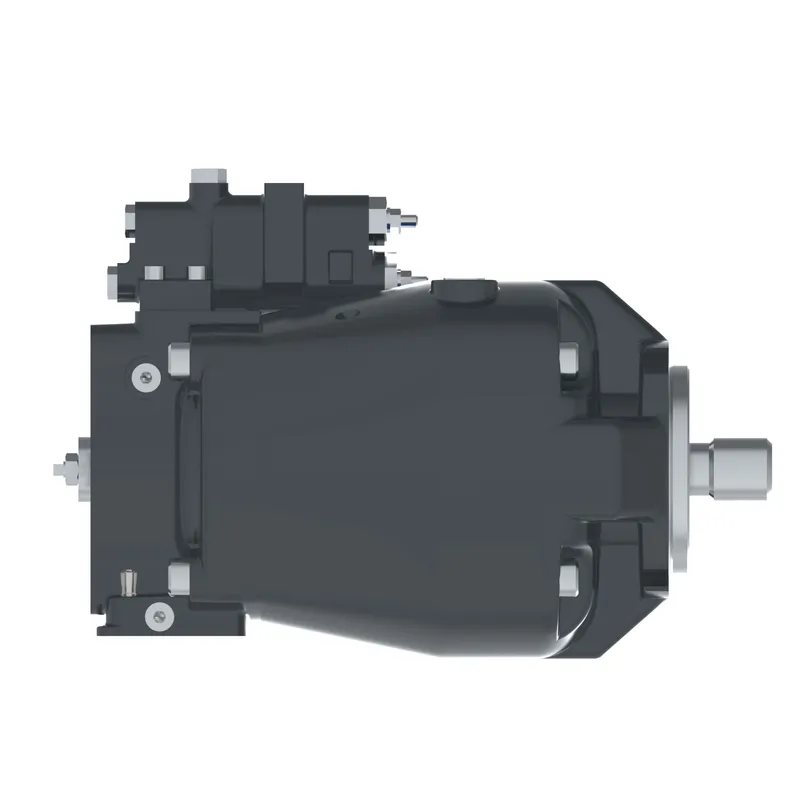

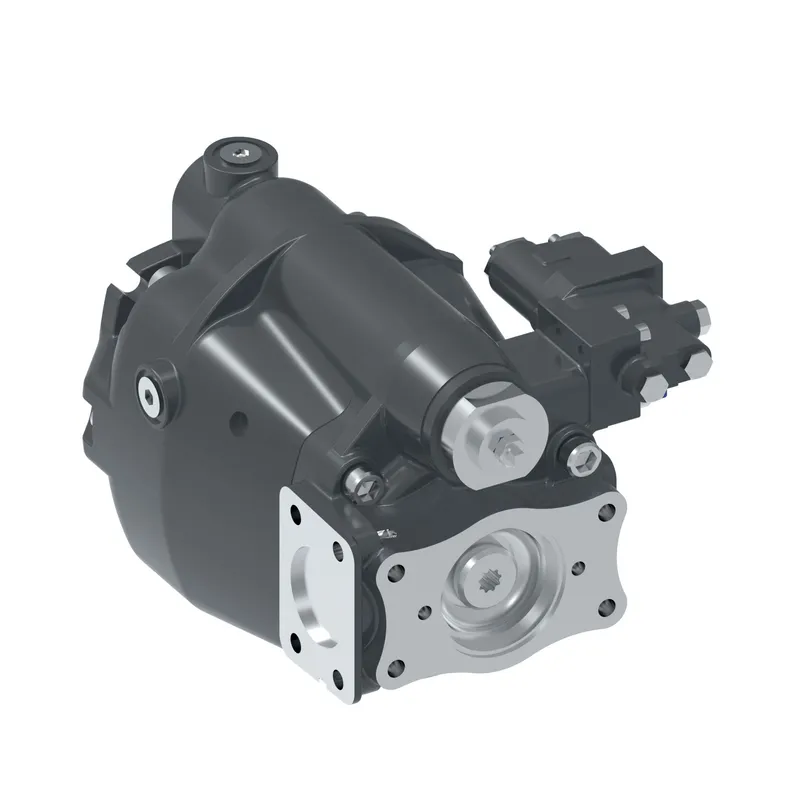

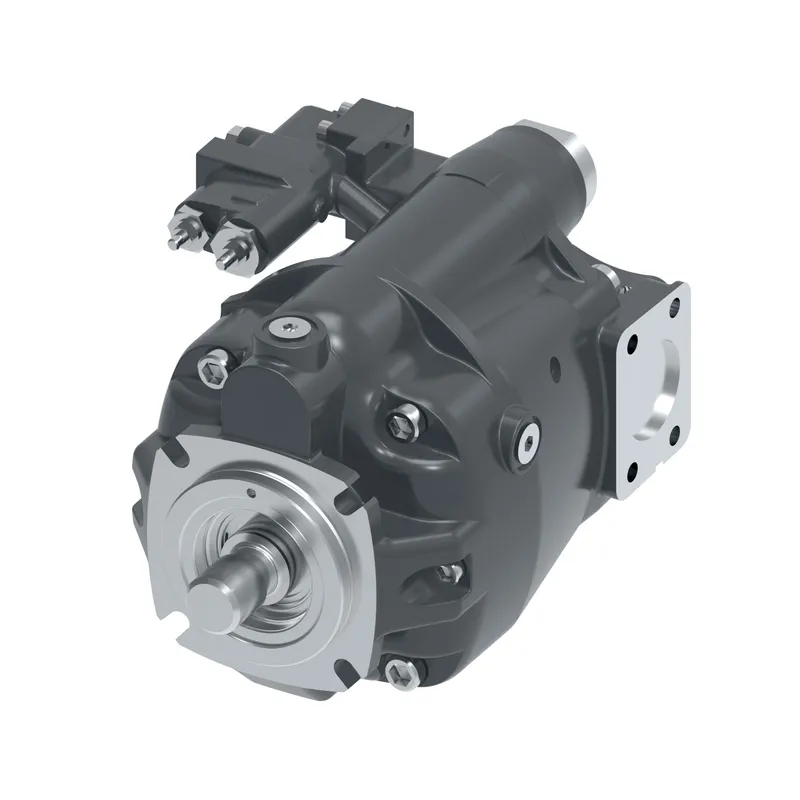

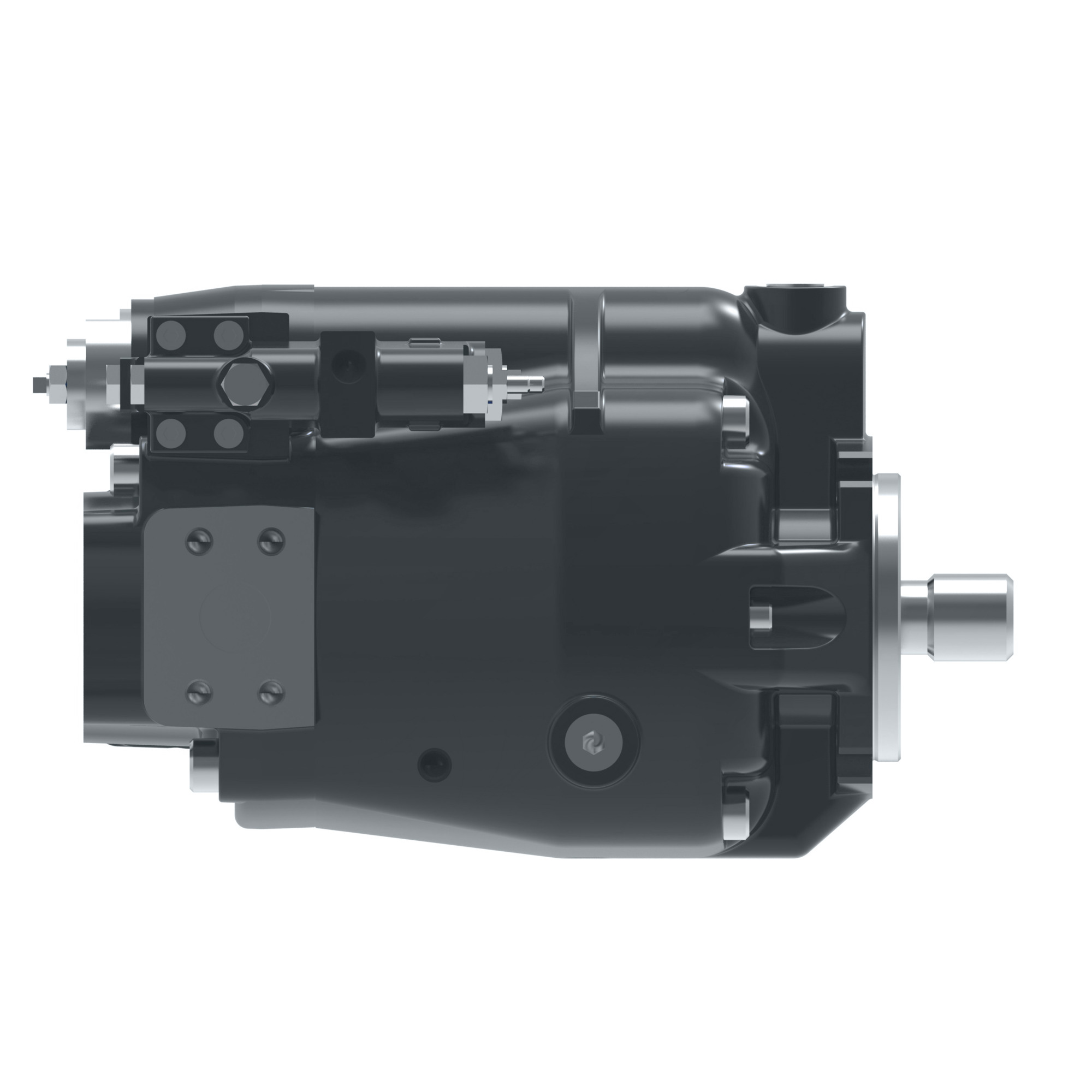

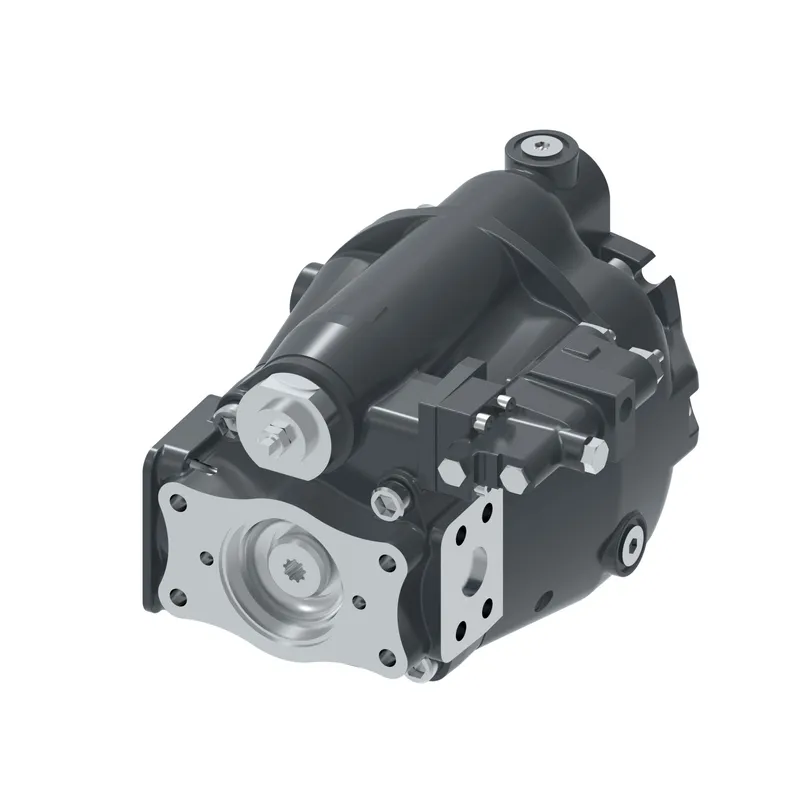

Danfoss 123AL02417A

PVM131ER13GS02AAC2811000 EA0A, PVM131ER13GS02AAC2811000 EA0A

MPN: 123AL02417A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL02417A?

Danfoss PVM131ER13GS02AAC2811000 EA0A, PVM131ER13GS02AAC2811000 EA0A, manufacturer part number 123AL02417A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	131 - REFER LONG DESCRIPTION
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	13 - REFER LONG DESCRIPTION
Mounting Flange	G - REFER LONG DESCRIPTION
MAIN PORT LOCATION	SIDE
PORT OPTIONS	02 - REFER LONG DESCRIPTION
PUMP SPECIAL FEATURES	AMDS (CONTAIN SSS)
CONTROL	C - REFER LONG DESCRIPTION
PRESSURE COMP SET	276-284 BAR[4002-4118 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	10-12 BAR[145-174 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	E - REFER LONG DESCRIPTION
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	PVM - REFER LONG DESCRIPTION
IPM FRAME SIZE	PVM Code A 131cc Pump
Model Code 1	PVM131ER13GS02AAC2811000 EA0A

123AL02417A: frequently asked questions

When can 123AL02417A be shipped?

123AL02417A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 123AL02417A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 123AL02417A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 123AL02417A, subject to availability and destination.
