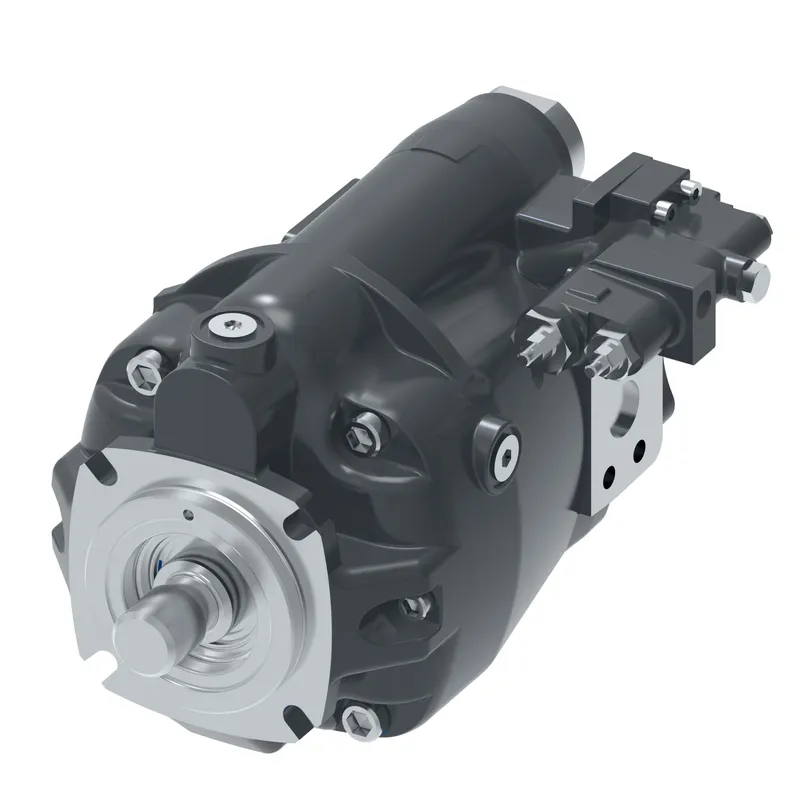

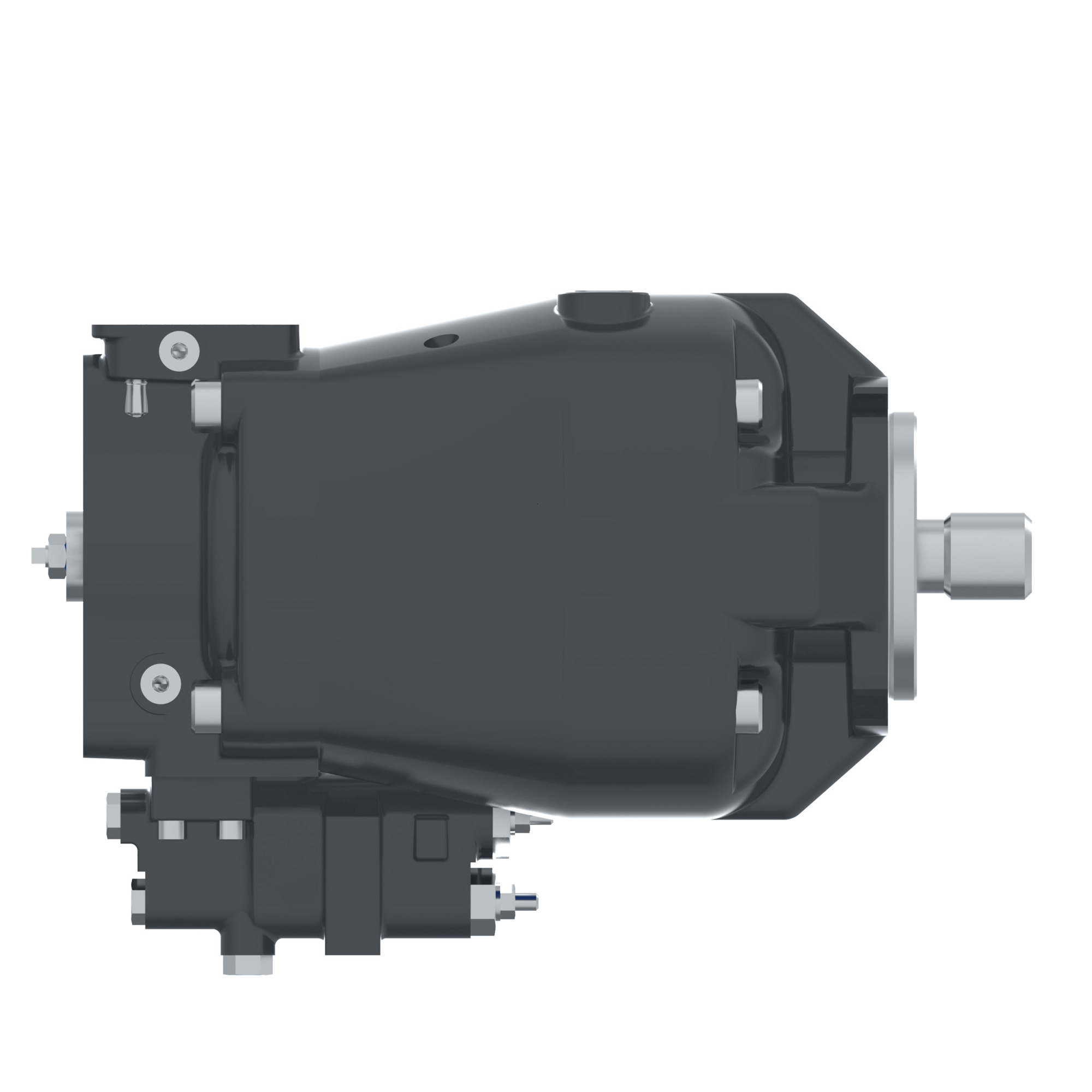

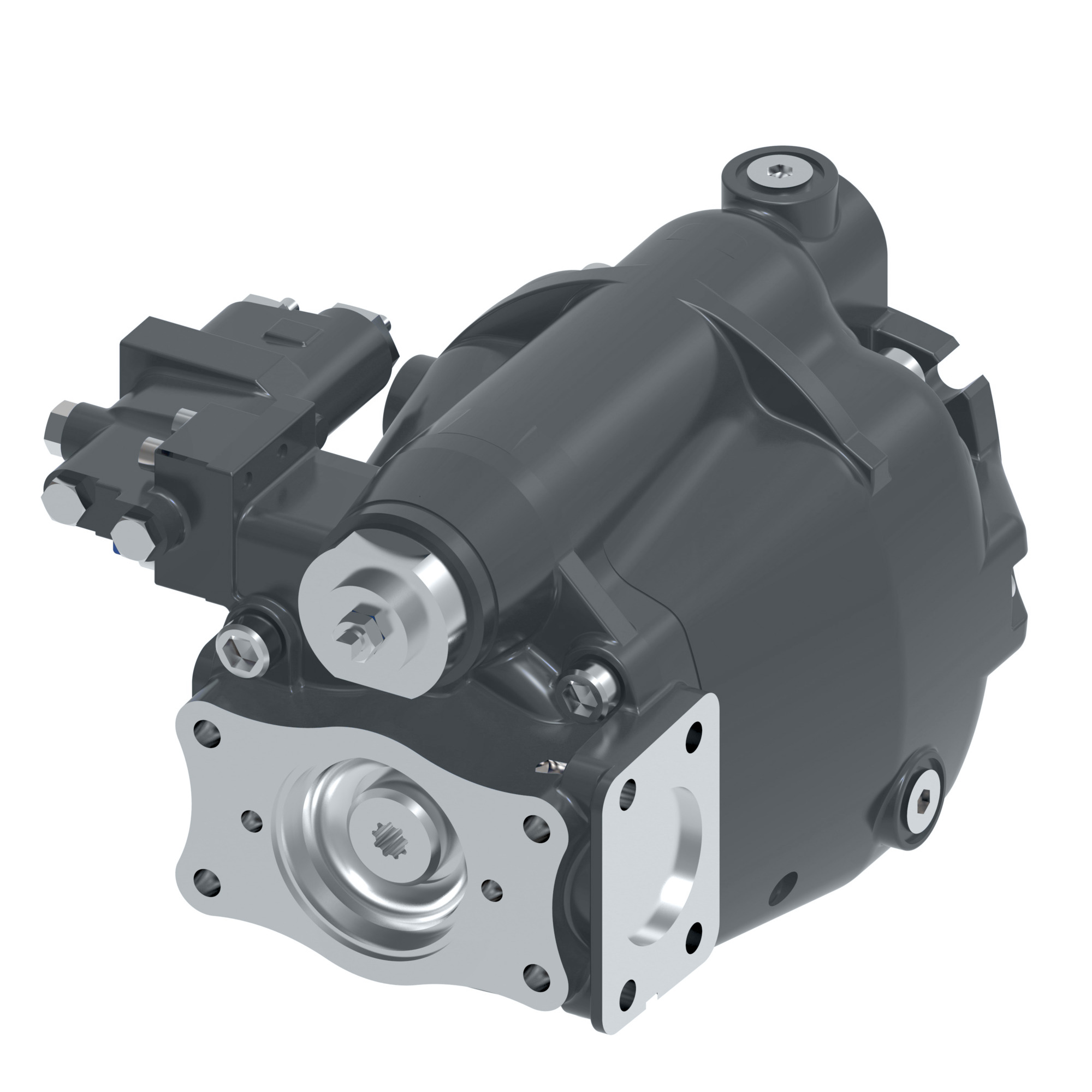

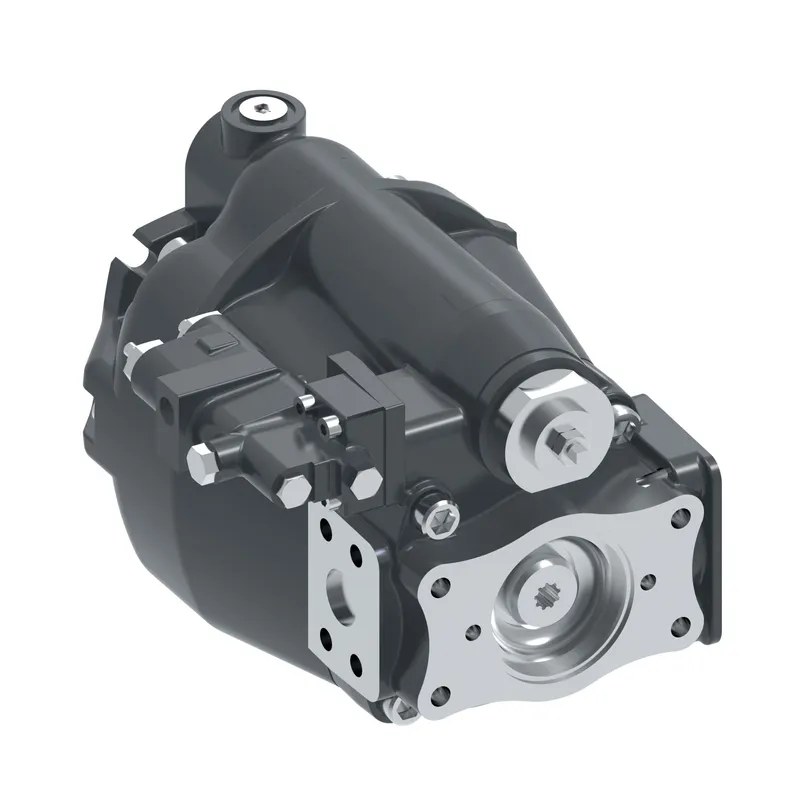

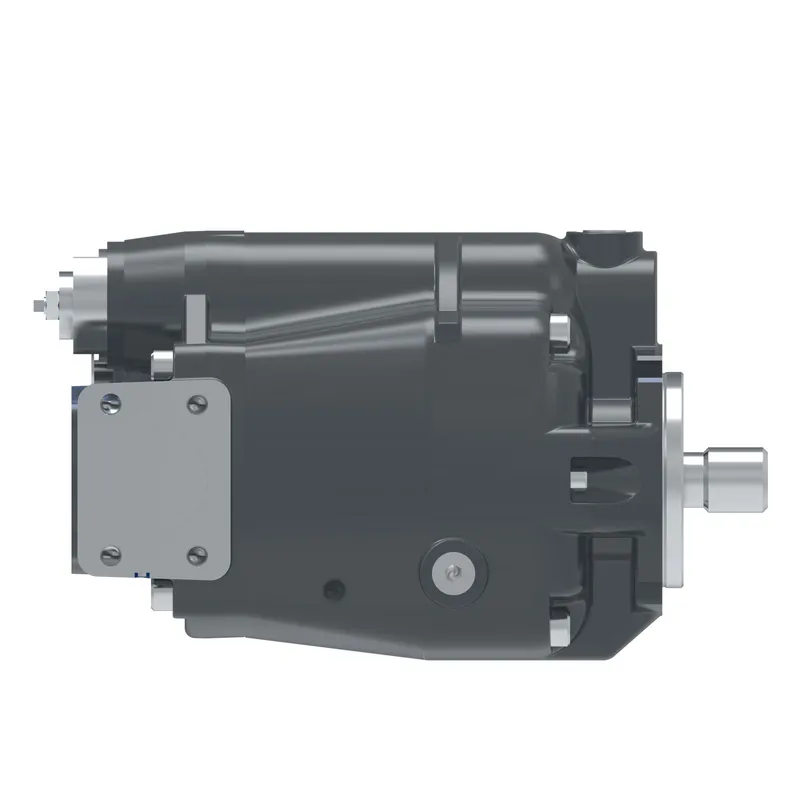

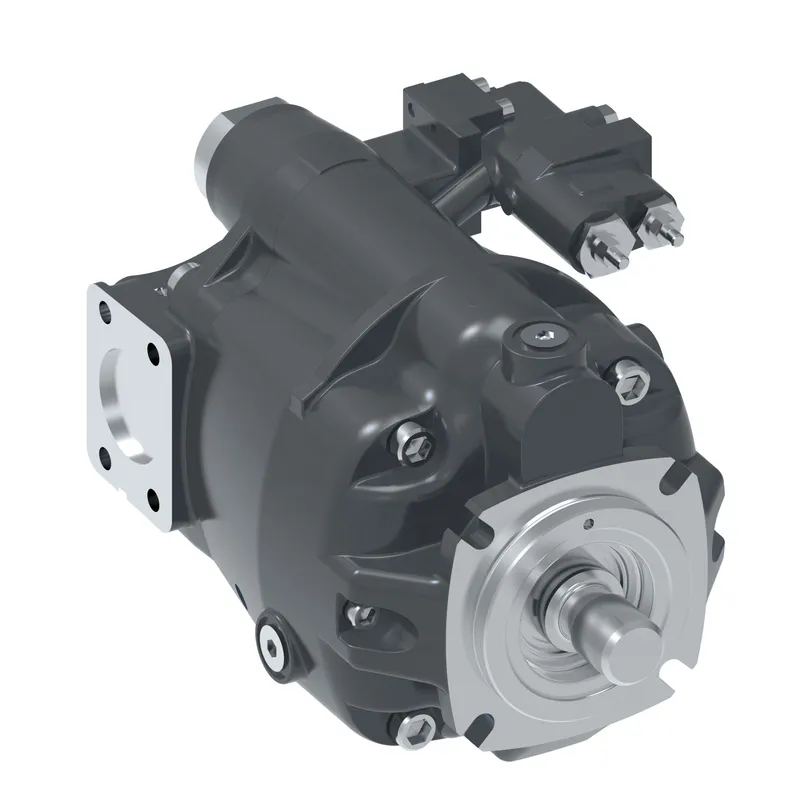

Danfoss 123AL02105A

PVM141ML11GS02AAC2320000 100A, PVM141ML11GS02AAC2320000 100A

MPN: 123AL02105A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL02105A?

Danfoss PVM141ML11GS02AAC2320000 100A, PVM141ML11GS02AAC2320000 100A, manufacturer part number 123AL02105A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	141.0 CM3/R [8.60 IN3/R] (230 BAR MAX)
Valve plate	MOBILE EQUIPMENT SPEEDS
Input rotation	COUNTERCLOCKWISE (LEFTHAND)
INPUT SHAFT	SAE J744-32-4 SAE C 14T SPLINE (MODEL 057 074 098 AND 131)
Mounting Flange	SAE J744-127-4 (C 4-BOLT) (MODELS 057 074 098 AND 131)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE
PRESSURE COMP SET	227-234 BAR [3277-3393 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	19-21 BAR [275.5-304.5 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	AUXILIARY MOUNT COVER PLATE
Paint	NO PAINT
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 141cc Pump
Model Code 1	PVM141ML11GS02AAC2320000 100A
