Danfoss (Drives)

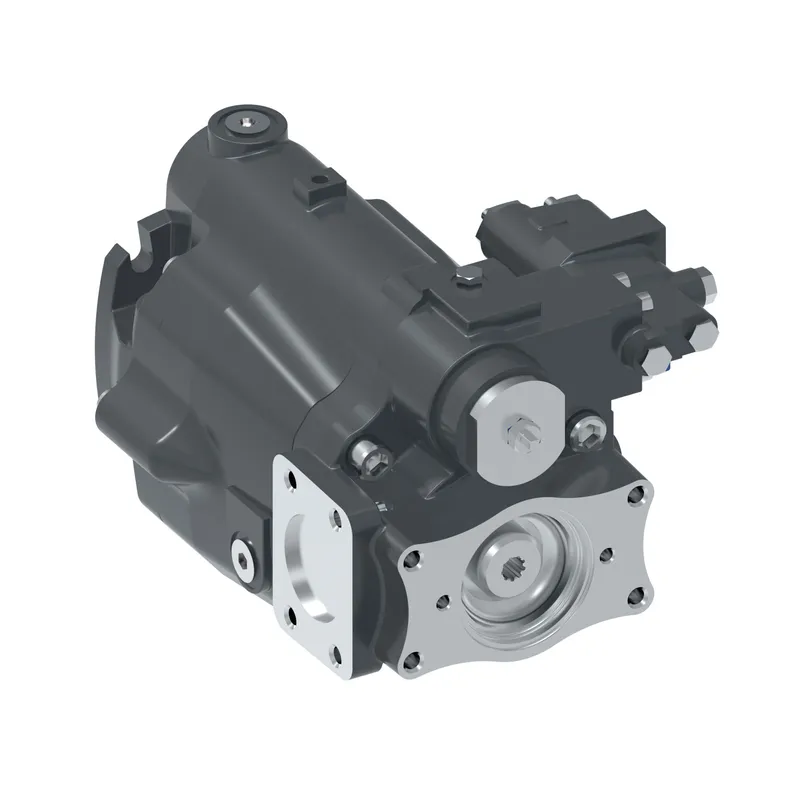

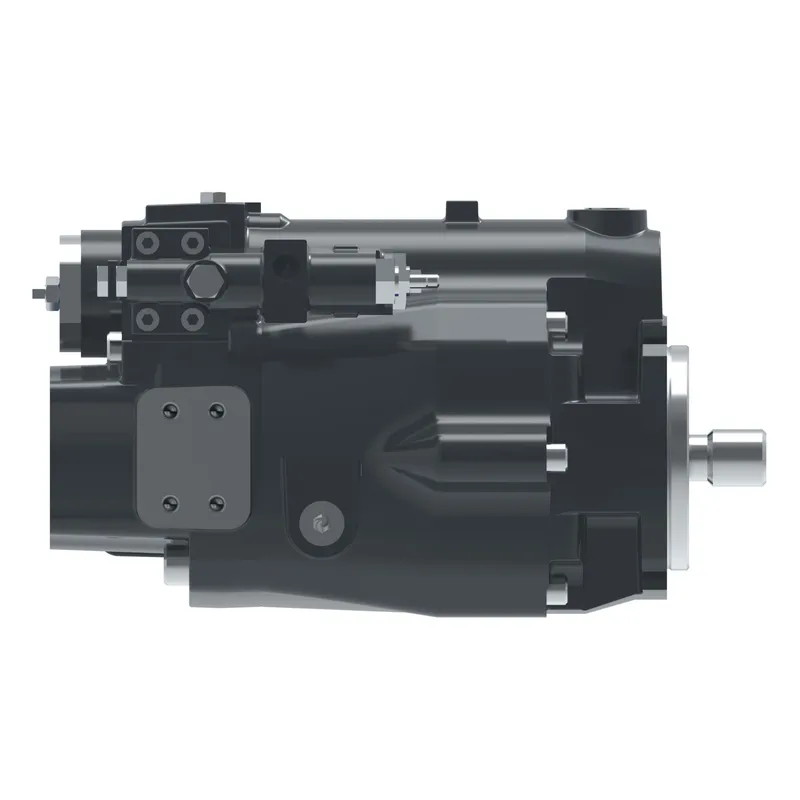

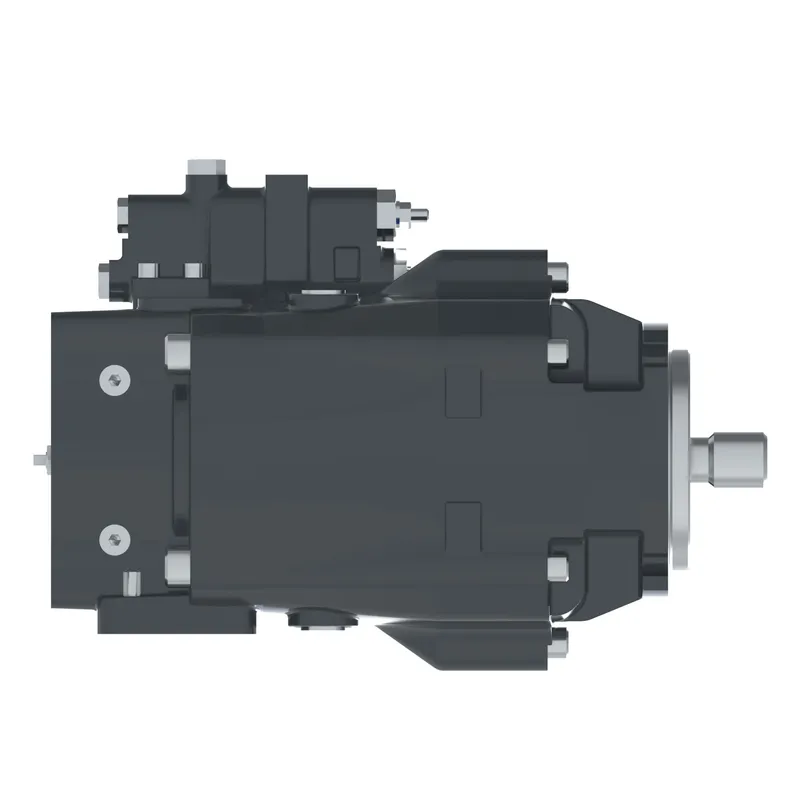

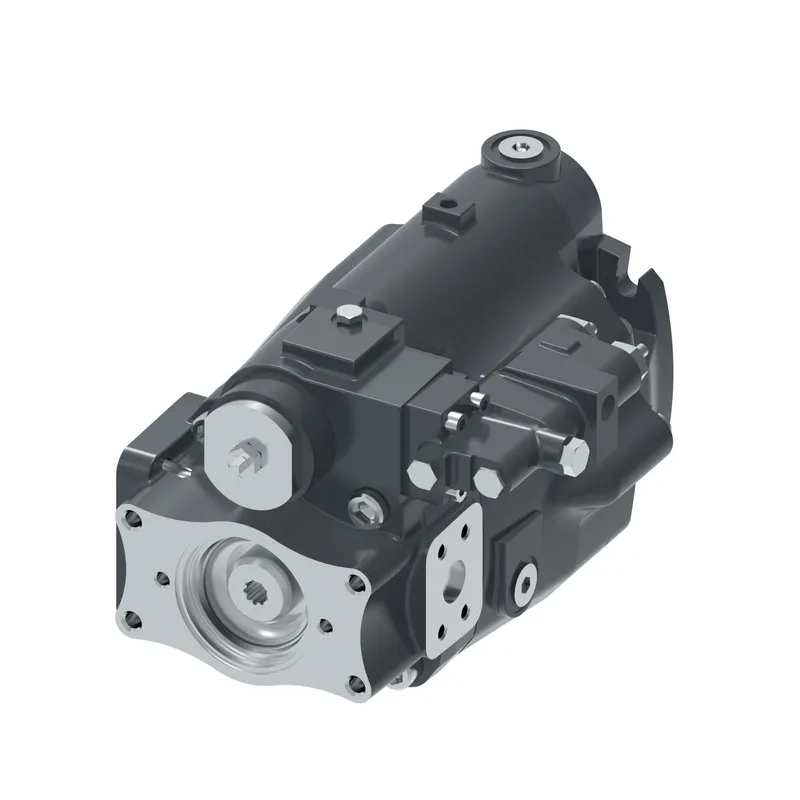

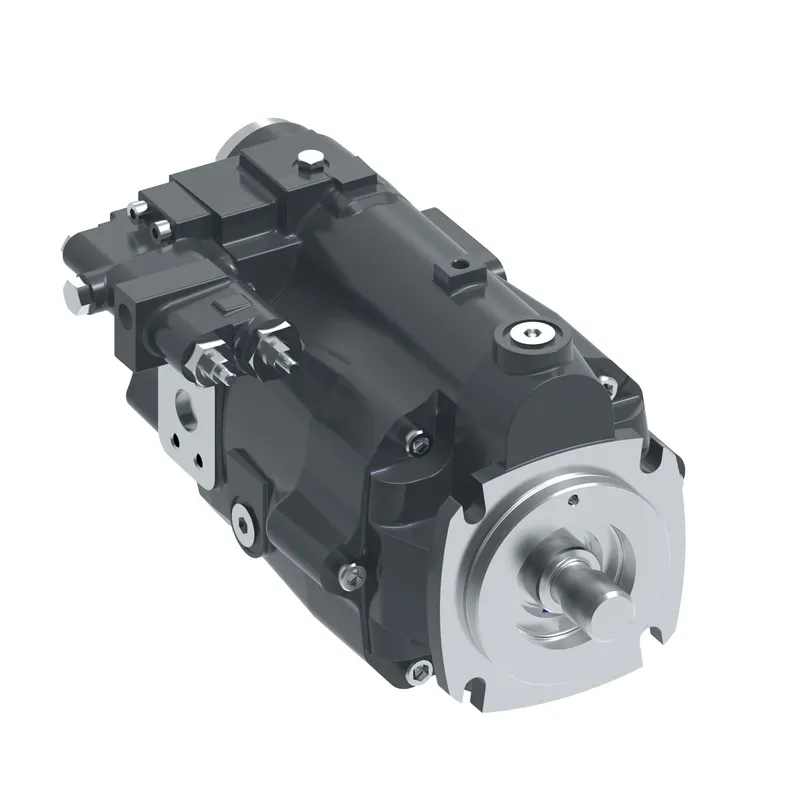

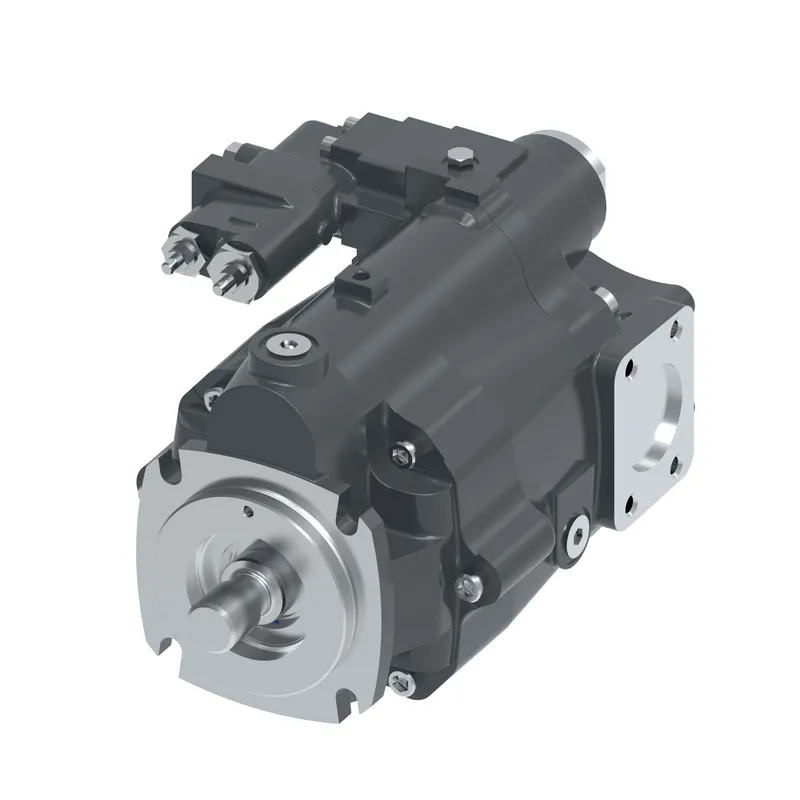

Danfoss 123AL02086A

PVM106ER09GS02AAE0020000 1A0A, PVM106ER09GS02AAE0020000 1A0A

MPN: 123AL02086A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL02086A?

Danfoss PVM106ER09GS02AAE0020000 1A0A, PVM106ER09GS02AAE0020000 1A0A, manufacturer part number 123AL02086A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	106 - REFER LONG DESCRIPTION
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	09 - REFER LONG DESCRIPTION
Mounting Flange	G - REFER LONG DESCRIPTION
MAIN PORT LOCATION	SIDE
PORT OPTIONS	02 - REFER LONG DESCRIPTION
PUMP SPECIAL FEATURES	AMDS (CONTAIN SSS)
CONTROL	E - REFER LONG DESCRIPTION
PRESSURE COMP SET	NONE
FLOW COMP UNLD VLV RPC SET	19-21 BAR[275.5-304.5 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	AUXILIARY MOUNT COVER PLATE
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	PVM - REFER LONG DESCRIPTION
IPM FRAME SIZE	PVM Code A 106cc Pump
Model Code 1	PVM106ER09GS02AAE0020000 1A0A
