Danfoss 123AL01062A

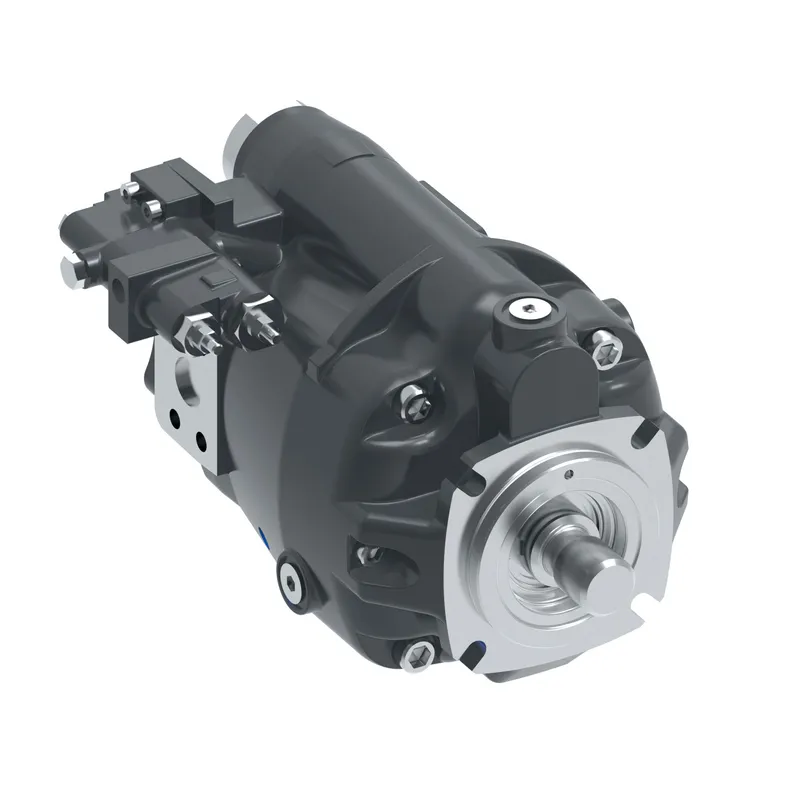

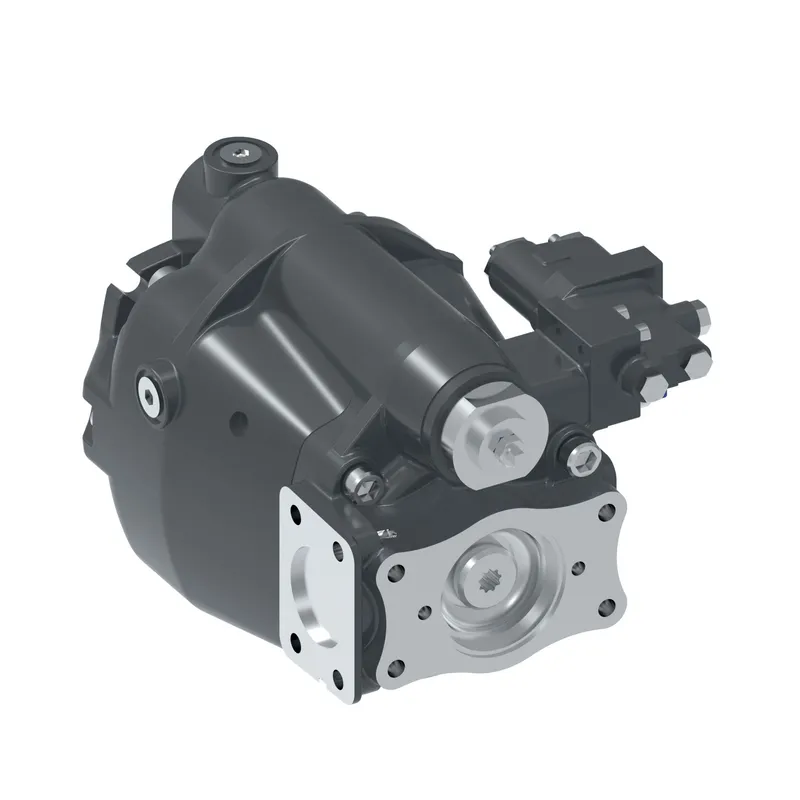

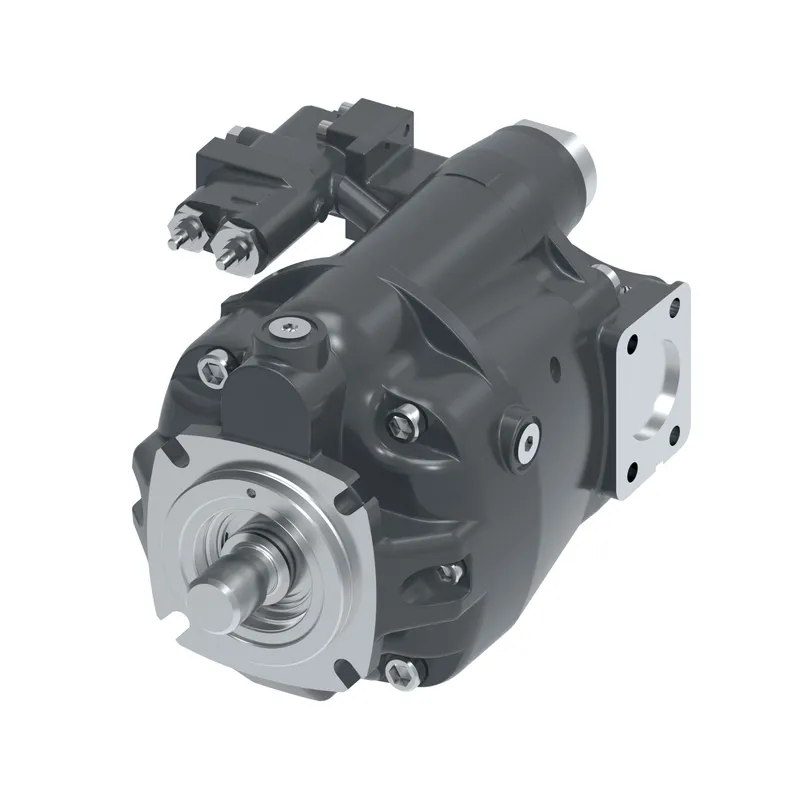

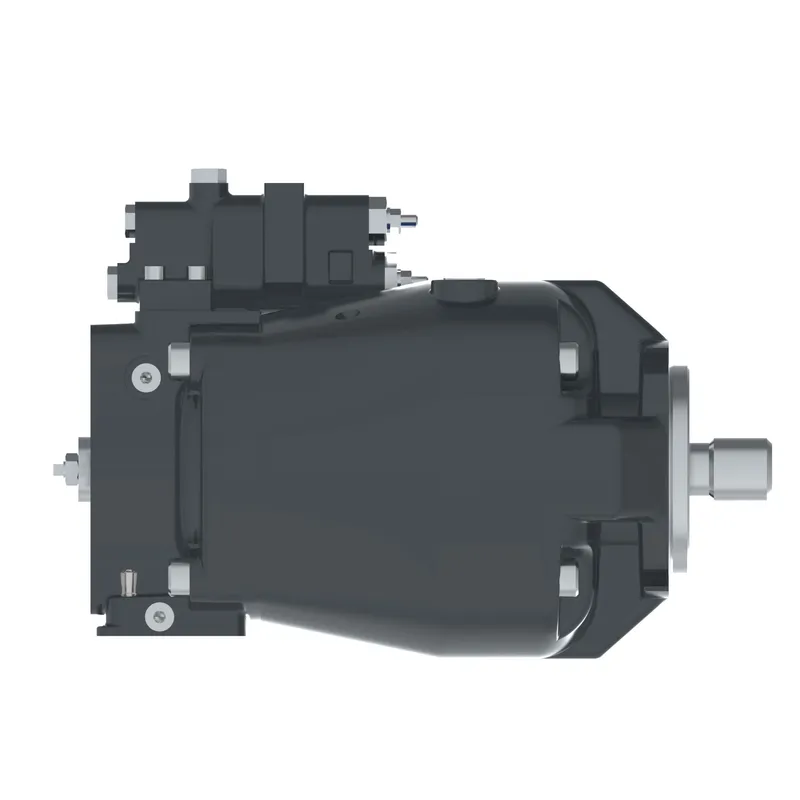

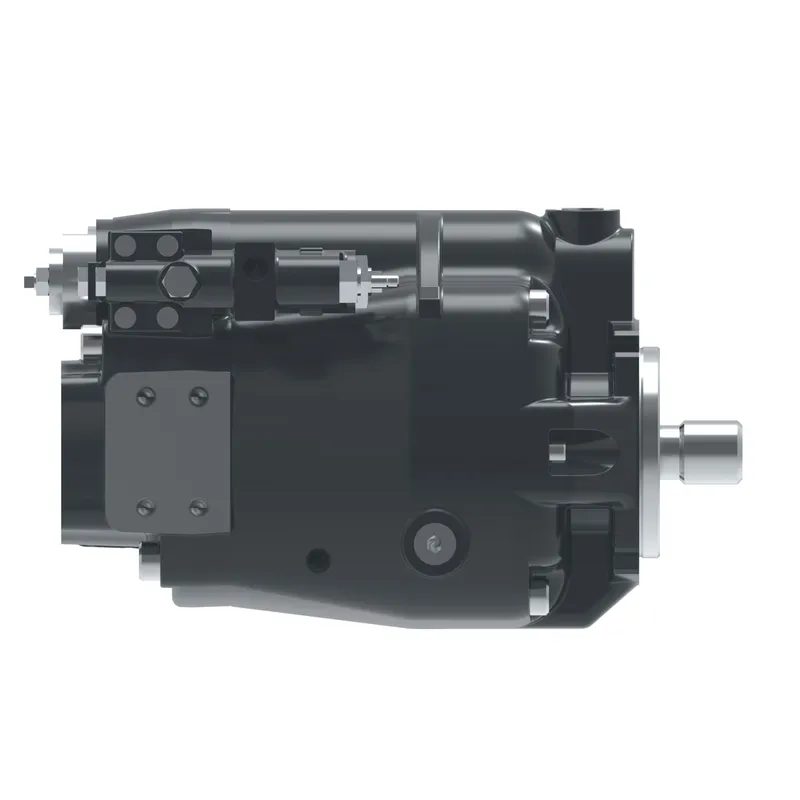

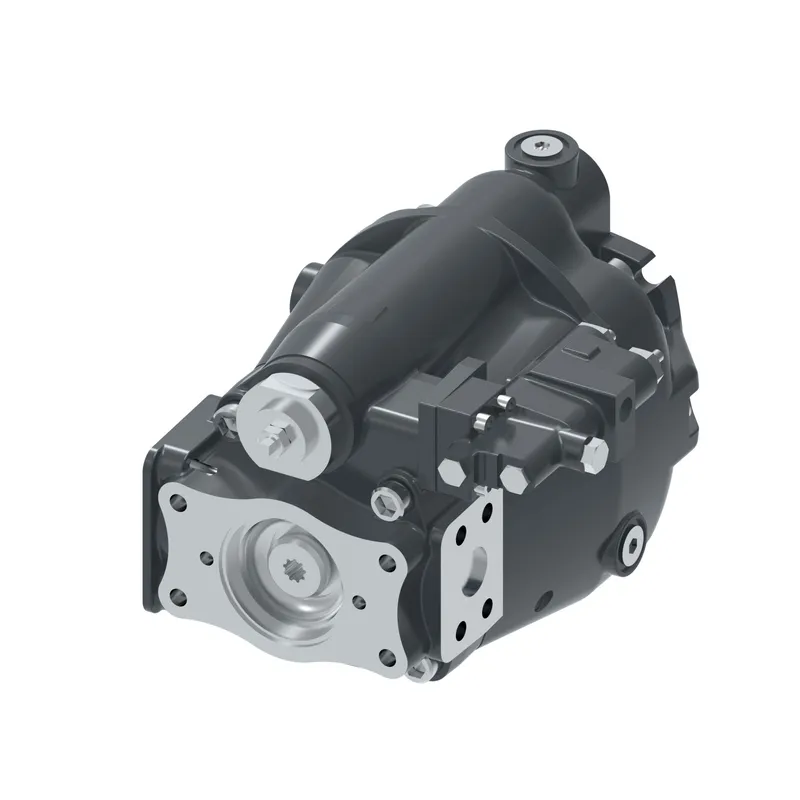

PVM131ER13GS02AAF0020000 FA0A, PVM131ER13GS02AAF0020000 FA0A

MPN: 123AL01062A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL01062A?

Danfoss PVM131ER13GS02AAF0020000 FA0A, PVM131ER13GS02AAF0020000 FA0A, manufacturer part number 123AL01062A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	131.1 cm3/r [8.00 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-44-1 SAE D STRAIGHT KEYED (MODEL 131)
Mounting Flange	SAE J744-127-4 (C 4-BOLT) (MODELS 057 074 098 AND 131)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	INDUSTRIAL CONTROL (PRESSURE COMPENSATED) MODEL 057 THRU 141
PRESSURE COMP SET	NONE
FLOW COMP UNLD VLV RPC SET	19-21 BAR [275.5-304.5 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	SAE C-C 2-/4-BOLT 17T SPLINE MODELS 074 098 AND 131
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 131cc Pump
Model Code 1	PVM131ER13GS02AAF0020000 FA0A
