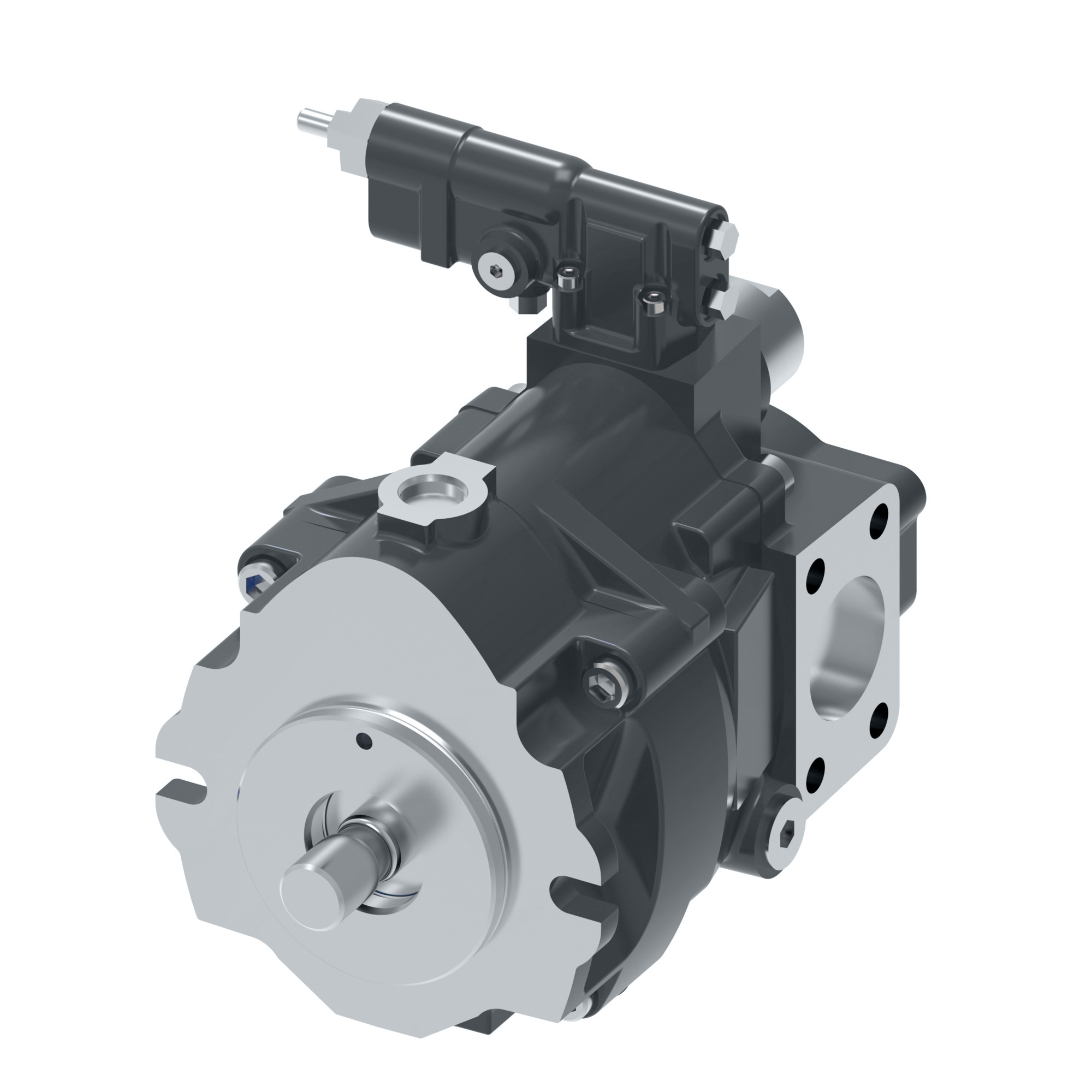

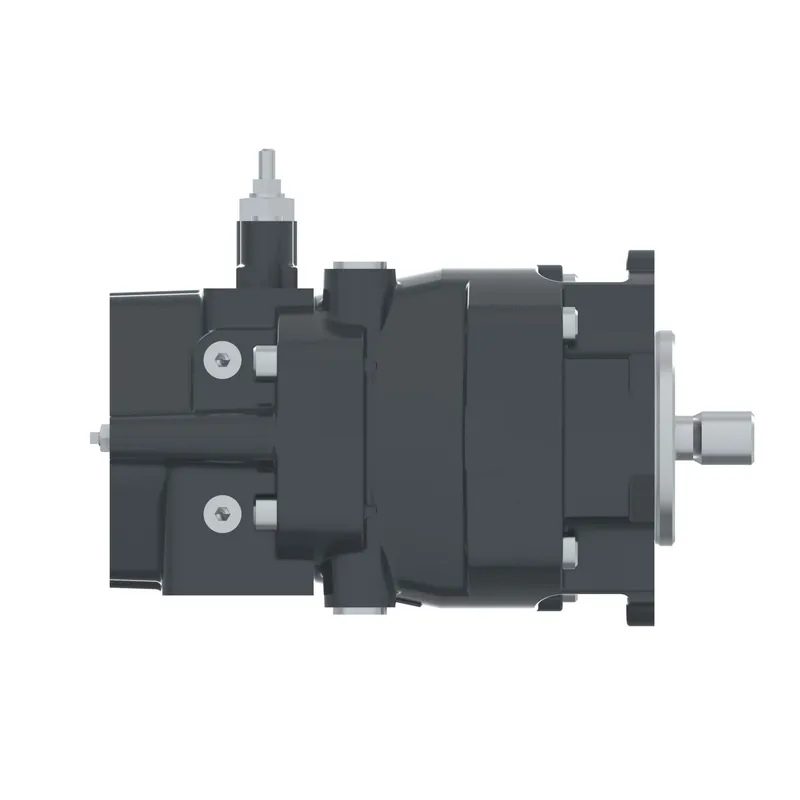

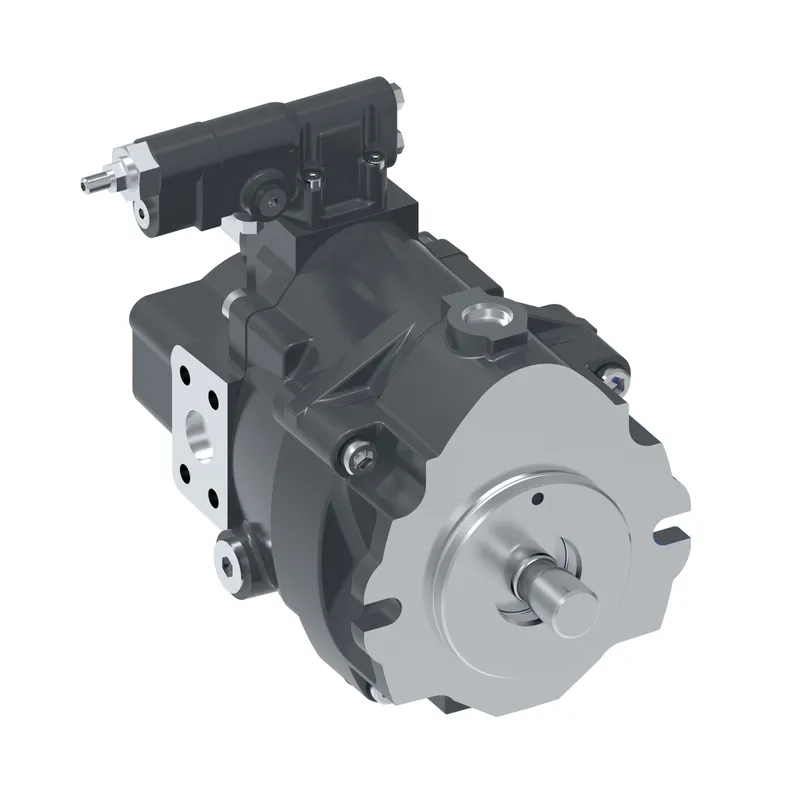

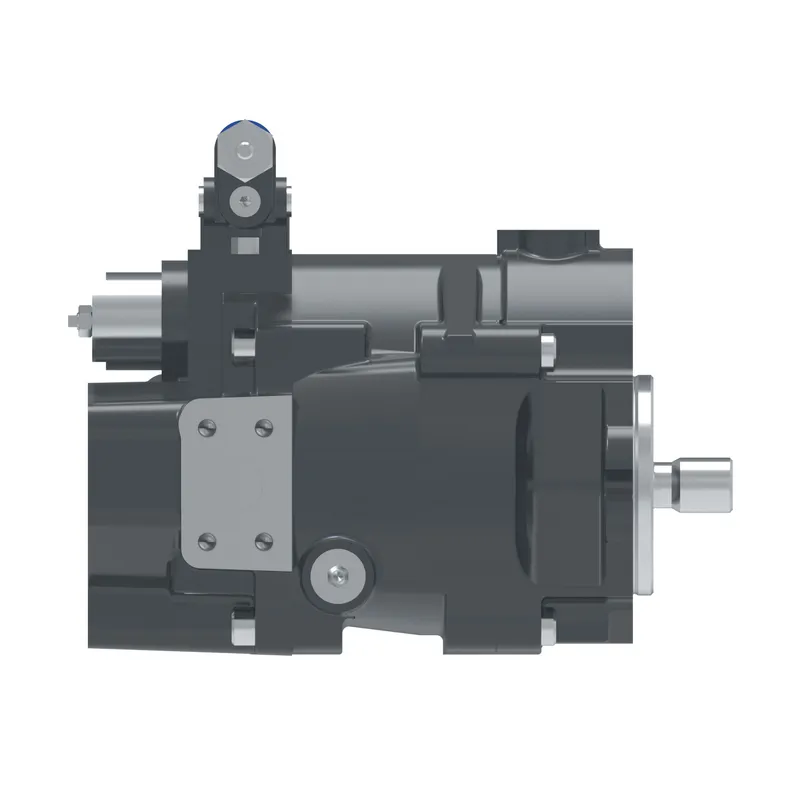

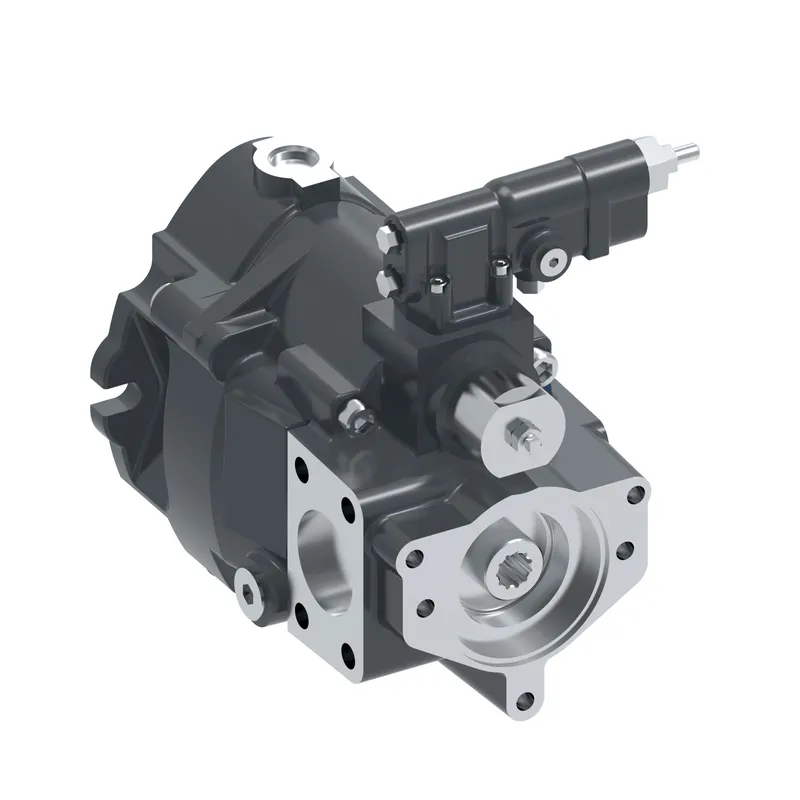

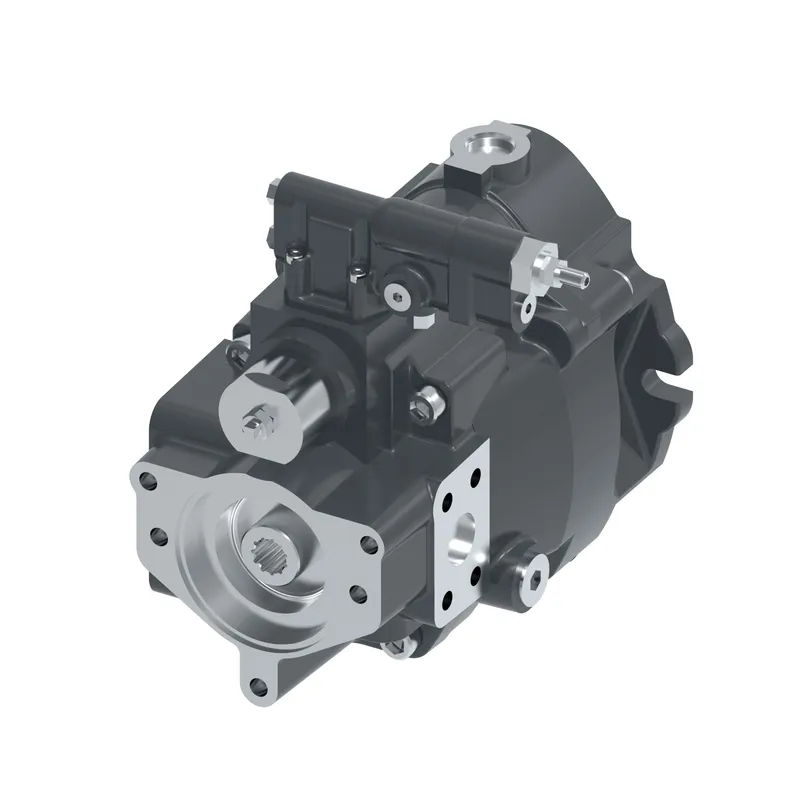

Danfoss 123AL00710A

PVM045ER05CE01AAB2311000 0A0A, PVM045ER05CE01AAB2311000 0A0A

MPN: 123AL00710A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00710A?

Danfoss PVM045ER05CE01AAB2311000 0A0A, PVM045ER05CE01AAB2311000 0A0A, manufacturer part number 123AL00710A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	45.1 cm3/r [2.75 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-22-1 SAE B STRAIGHT KEYED (MODEL 018 028 AND 045)
Mounting Flange	SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045)
MAIN PORT LOCATION	END (MODELS 018,020,045,050)
PORT OPTIONS	SAE J514 TUBE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH BLEED DOWN ORIFICE
PRESSURE COMP SET	227-234 BAR [3277-3393 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	10-12 BAR [145-174 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	NONE (REAR PORT ONLY)
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 45cc Pump
Model Code 1	PVM045ER05CE01AAB2311000 0A0A
