Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00602A

Danfoss (Drives)

Danfoss 123AL00602A

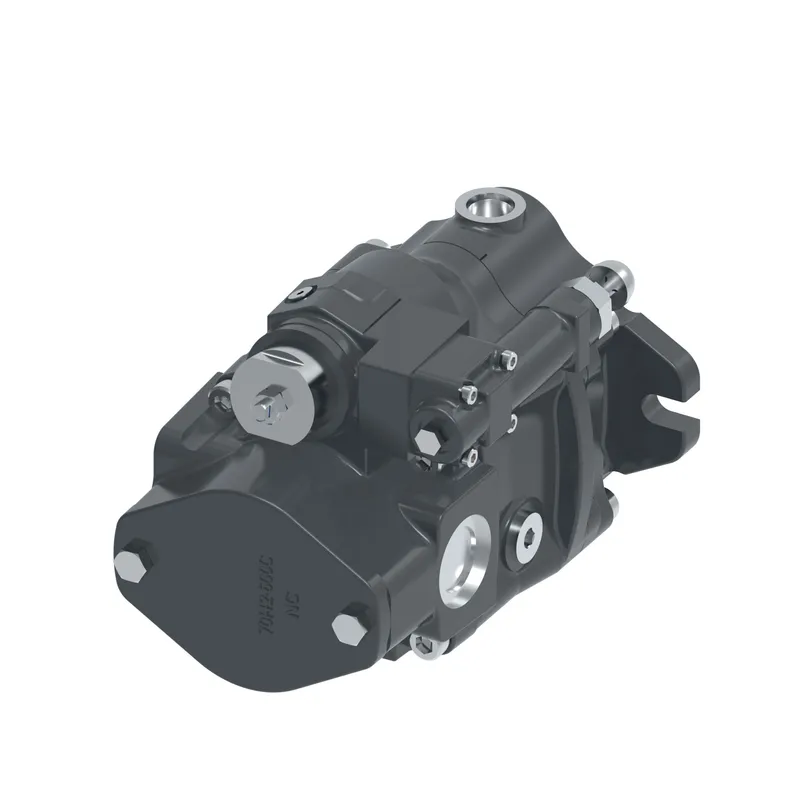

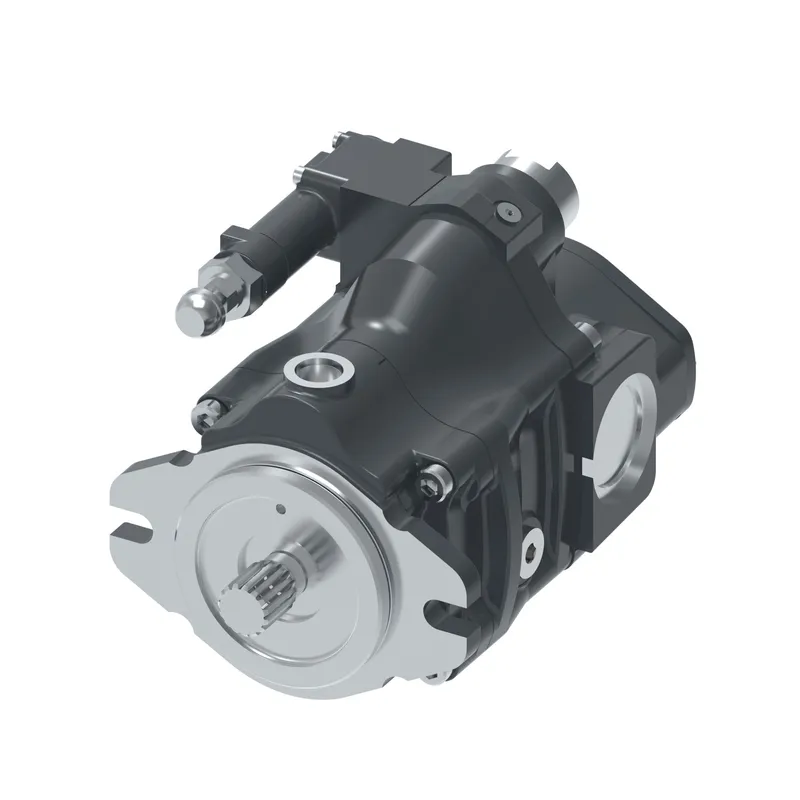

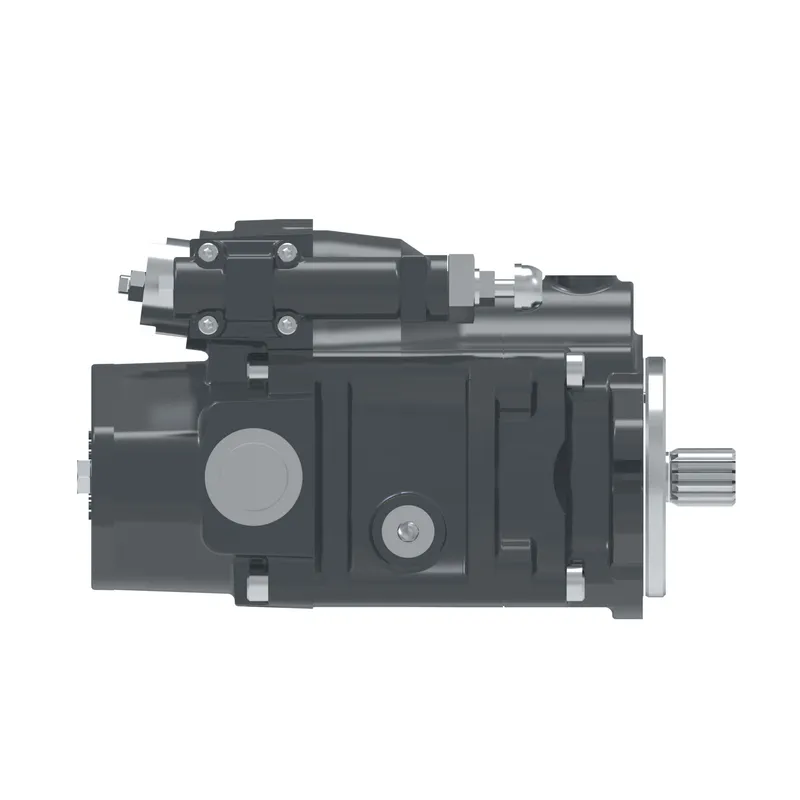

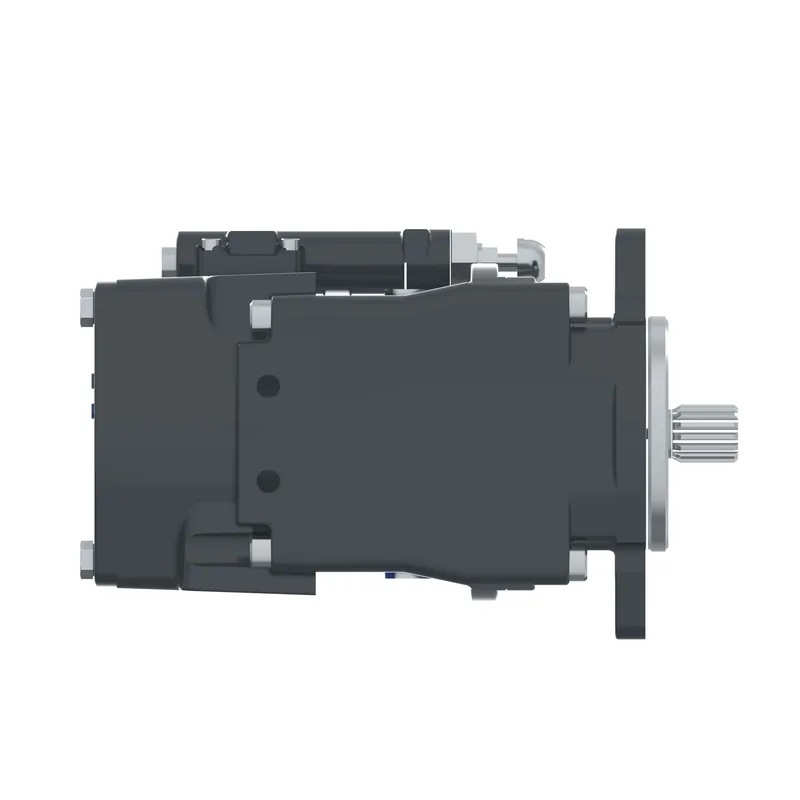

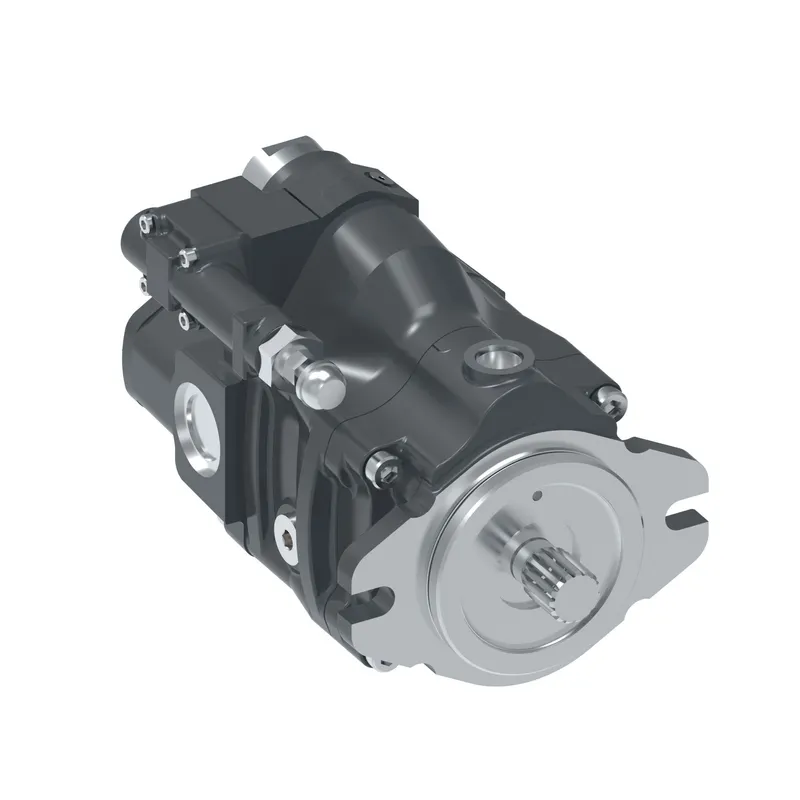

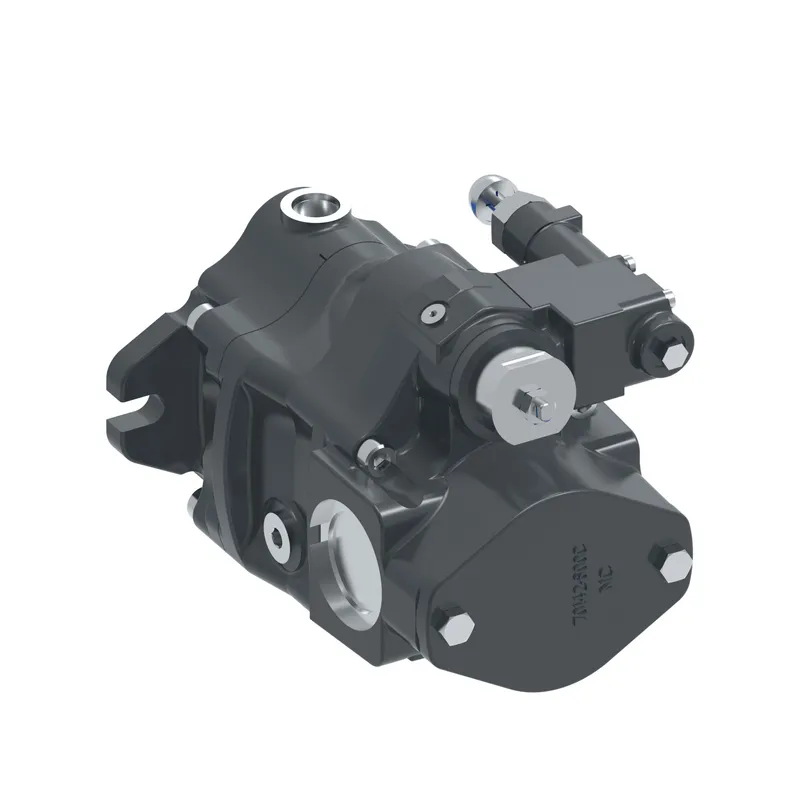

PVM018ER01AE01AAA07000000A0A, PVM018ER01AE01AAA07000000A0A

MPN: 123AL00602A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00602A?

Danfoss PVM018ER01AE01AAA07000000A0A, PVM018ER01AE01AAA07000000A0A, manufacturer part number 123AL00602A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

DISPLACEMENT	18.0 cm3/r [1.1 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-16-1 SAE A STRAIGHT KEYED (MODEL 018 AND 028)
Mounting Flange	SAE J744-82-2 (A 2-BOLT) (MODEL 018 AND 028)
MAIN PORT LOCATION	END (MODELS 018,020,045,050)
PORT OPTIONS	SAE J514 TUBE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	66-74 BAR [957-1073 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	NONE (REAR PORT ONLY)
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 18cc Pump
Model Code 1	PVM018ER01AE01AAA07000000A0A
